NSN 5340-01-496-4863 B553220012, B553-2200-12, 596740939712
Product Details | BALL SOCKET SEAT
5340-01-496-4863 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.20512400038Optical Sighting and Ranging Equipment12900036Miscellaneous Fire Control Equipment25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components53400020Hardware, Commercial
Part Alternates: B553220012, B553-2200-12, 596740939712, 596-7409397-12, 7409397, 5340-01-496-4863, 01-496-4863, 5340014964863, 014964863
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 APR 2002 | 01-496-4863 | 19451 ( SEAT, BALL SOCKET ) |

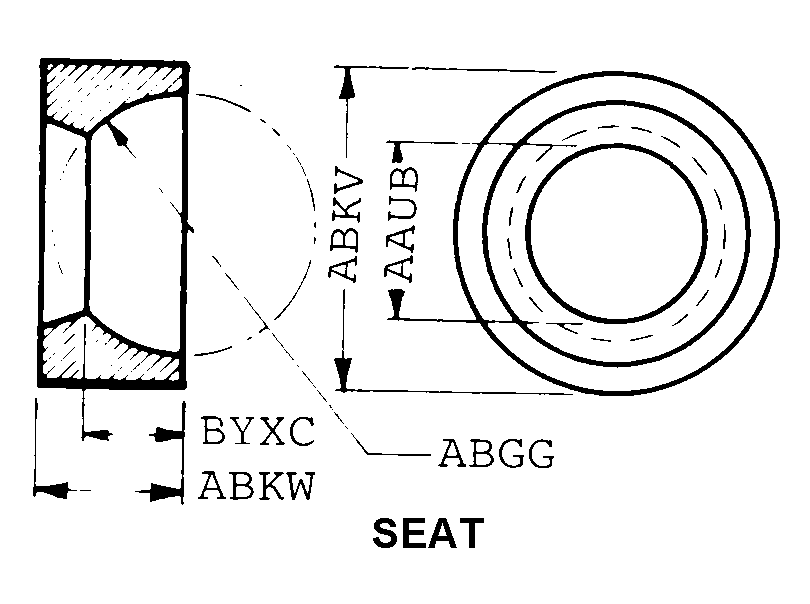

Drawings & Photos | NSN 5340-01-496-4863
Demand History | NSN 5340-01-496-4863
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-496-4863 | 2016-06-171 | 28 | DIBBS |
| 5340-01-496-4863 | 2016-05-133 | 13 | DIBBS |
| 5340-01-496-4863 | 2016-02-60 | 13 | DIBBS |
| 5340-01-496-4863 | 2015-12-349 | 13 | DIBBS |
| 5340-01-496-4863 | 2015-08-214 | 13 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-496-4863
Technical Data | NSN 5340-01-496-4863
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | M7 SEAT |
| BALL SEAT DEPTH | 0.712 INCHES NOMINAL |
| OUTSIDE DIAMETER | 7.720 INCHES NOMINAL |
| OVERALL HEIGHT | 1.312 INCHES NOMINAL |
| HOLE DIAMETER | 6.124 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | USED ON LOS ANGELES CLASS SSN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SEAT, BALL SOCKET |
Restrictions/Controls & Freight Information | NSN 5340-01-496-4863
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-496-4863
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
