NSN 5340-01-487-3205 CM613, CM6-1-3, CM6-1314.096S
Product Details | SYNCHRO CLAMP
5340-01-487-3205 A clamp designed to hold an item in position, alignment or in close proximity by rigidly gripping the projecting rim, ridge, collar or edge of the item. A lockwasher, bolt, screw or the like may be a part of the item of supply.
Part Alternates: CM613, CM6-1-3, CM6-1314.096S, CM61314096S, 5340-01-487-3205, 01-487-3205, 5340014873205, 014873205
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 AUG 2001 | 01-487-3205 | 40268 ( CLAMP, SYNCHRO ) |
Drawings & Photos | NSN 5340-01-487-3205
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-487-3205
Related Products | NSN 5340-01-487-3205
Technical Data | NSN 5340-01-487-3205
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |

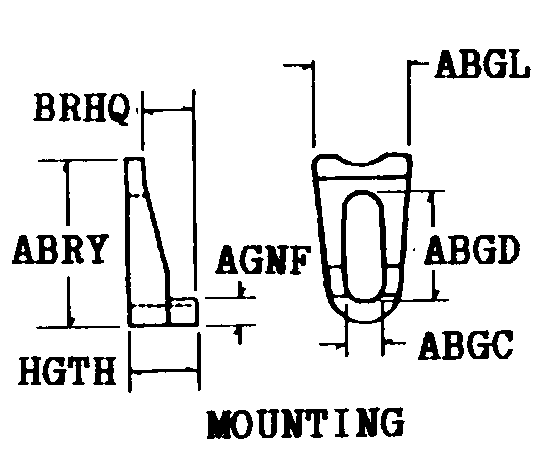

| STYLE DESIGNATOR | C9 MOUNTING |
| SLOT WIDTH | 0.118 INCHES NOMINAL |
| WIDTH | 0.340 INCHES NOMINAL |
| LENGTH | 0.051 INCHES NOMINAL |
| BASE LENGTH | 0.080 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 0.096 INCHES NOMINAL |
| HEIGHT | 0.146 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NEXT GENERATION RADAR (NEXRAD) |
Restrictions/Controls & Freight Information | NSN 5340-01-487-3205
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-487-3205
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | ZE | SU:"METEOROLOGICAL EQUIPMENT 433L, WEATHER OBSERVATION AND FORECASTING SYSTEMS, METEROLOGICAL/WEATHER PROJECTS" |
| Source of Supply | G13 | Department of Commerce National Oceanic and Atmospheric Administration National Weather Service - Engineering Division 1325 East-West Highway W/0S0322, SSMC2 Silver Springs, MD 20910 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | G | GENERAL SERVICES ADMINISTRATION (GSA)/CIVIL AGENCY INTEGRATED MATERIEL MANAGED, STOCKED AND ISSUED Identifies GSA/Civil Agency-managed items available from GSA/Civil Agency supply distribution facilities. Requisitions and fund citations will be submitted in accordance with GSA/Civil Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
