NSN 5340-01-483-1131 6935153, 01-483-1131, 014831131
Product Details | BRIDGE CLAMP
5340-01-483-1131 A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal.
Part Alternates: 6935153, 5340-01-483-1131, 01-483-1131, 5340014831131, 014831131
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 2001 | 01-483-1131 | 11206 ( CLAMP, BRIDGE ) |

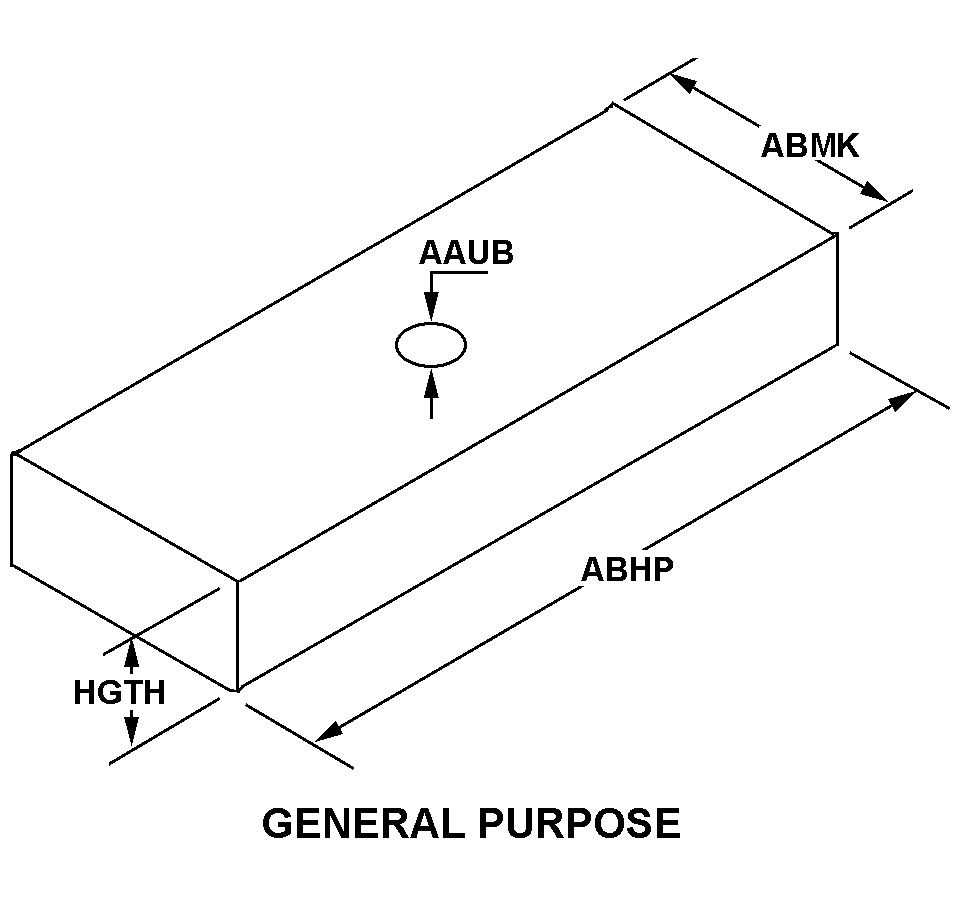

Drawings & Photos | NSN 5340-01-483-1131
Demand History | NSN 5340-01-483-1131
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-483-1131 | 2021-08-227 | 33 | DIBBS |
| 5340-01-483-1131 | 2020-10-299 | 25 | DIBBS |
| 5340-01-483-1131 | 2015-07-182 | 11 | DIBBS |
| 5340-01-483-1131 | 2013-05-143 | 2 | DIBBS |
| 5340-01-483-1131 | 2013-01-11 | 1 | DIBBS |
| 5340-01-483-1131 | 2012-07-188 | 8 | DIBBS |
| 5340-01-483-1131 | 2012-07-185 | 25 | DIBBS |
Cross Reference | NSN 5340-01-483-1131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6935153 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-483-1131
Related Products | NSN 5340-01-483-1131
Technical Data | NSN 5340-01-483-1131
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | B16 GENERAL PURPOSE USE |
| HOLE DIAMETER | 0.328 INCHES NOMINAL |
| OVERALL LENGTH | 0.922 INCHES MINIMUM AND 0.952 INCHES MAXIMUM |
| OVERALL WIDTH | 0.490 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| HEIGHT | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-483-1131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-483-1131
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
