Product Details | HANDLE FERRULE

5340-01-476-3953 An item specifically designed to be fitted around the ends of a handle to reinforce, or to reduce the interior diameter to facilitate mounting.

Part Alternates: 0150377000, 015-0377-000, 5340-01-476-3953, 01-476-3953, 5340014763953, 014763953

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 11 JUL 2000 01-476-3953

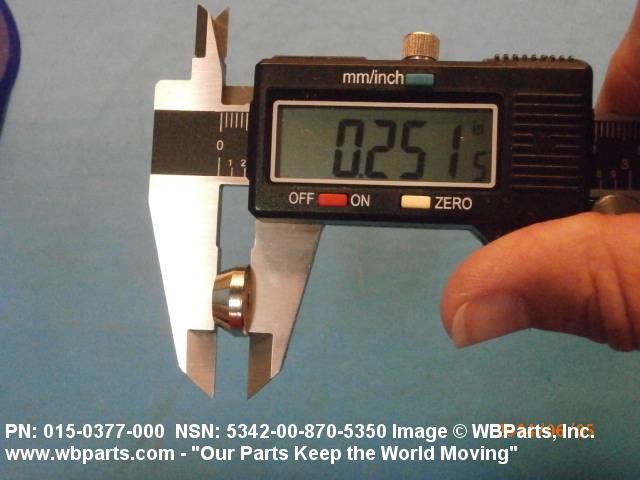

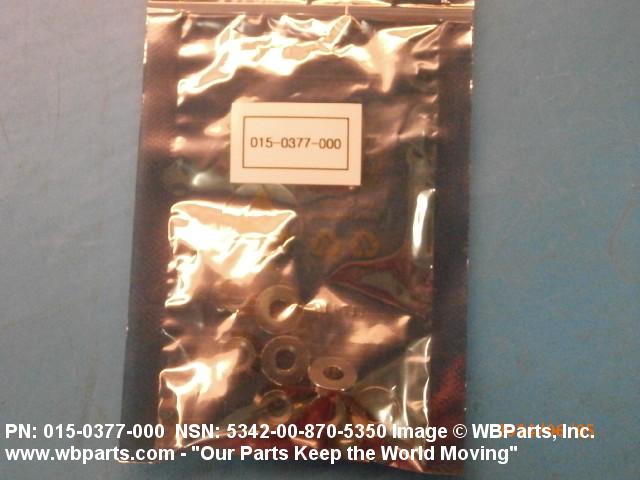

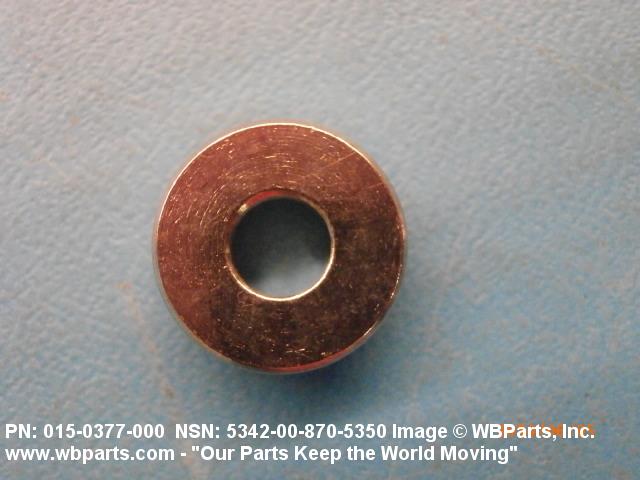

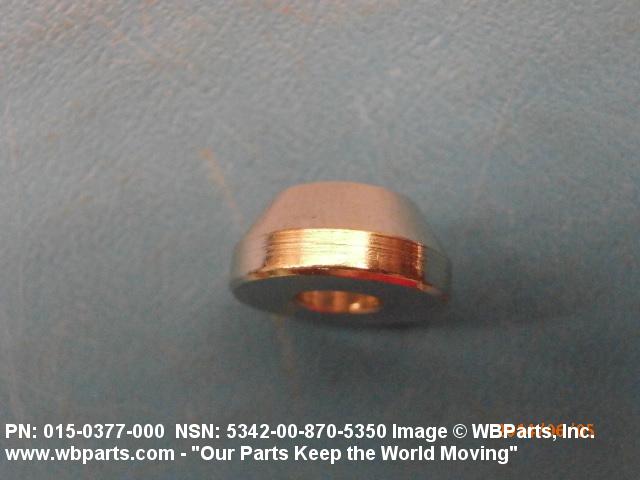

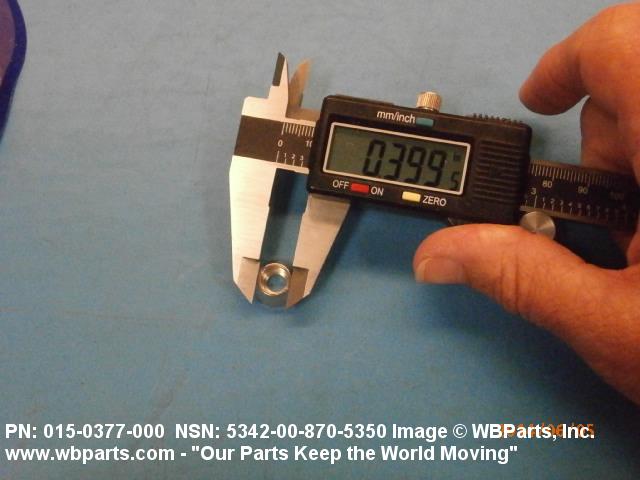

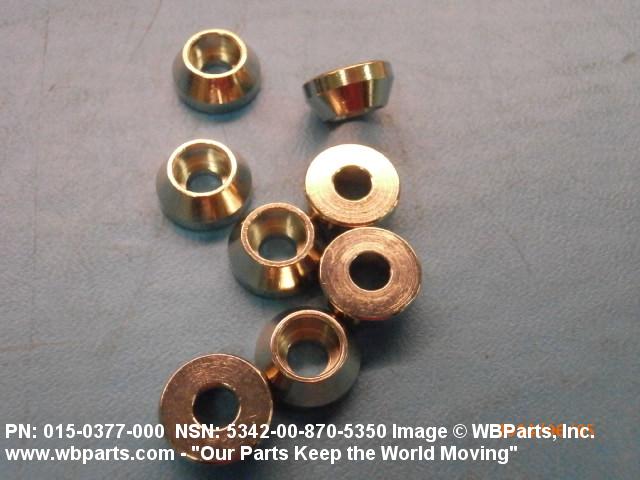

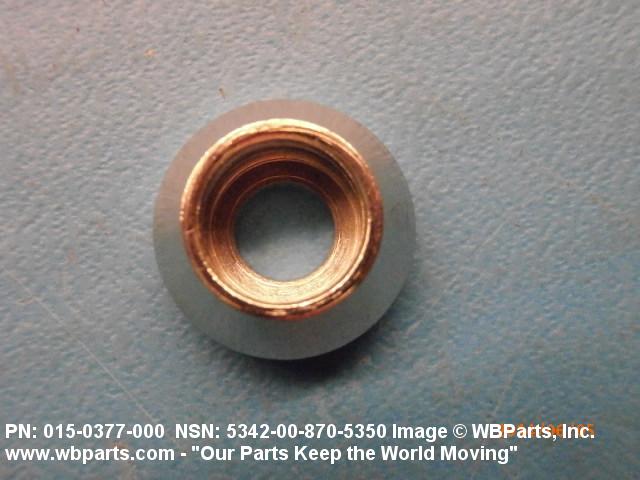

Drawings & Photos | NSN 5340-01-476-3953


Demand History | NSN 5340-01-476-3953

Part Number Request Date QTY Origin
015-0377-000 2023-07-201 150 DIBBS
015-0377-000 2021-03-70 362 DIBBS
015-0377-000 2021-02-52 133 DIBBS
015-0377-000 2020-09-274 87 DIBBS
5340-01-476-3953 2017-04-108 1 DIBBS-RFPs
5340-01-476-3953 2016-12-336 497 DIBBS
5340-01-476-3953 2015-09-246 241 DIBBS
5340-01-476-3953 2015-05-148 145 DIBBS
5340-01-476-3953 2012-11-334 104 DIBBS
5340-01-476-3953 2011-03-70 1 DIBBS
5340-01-476-3953 2011-03-67 104 DIBBS

Cross Reference | NSN 5340-01-476-3953

Part Number Cage Code Manufacturer
015-0377-000 13499 ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-476-3953

Technical Data | NSN 5340-01-476-3953

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT NICKEL OVERALL

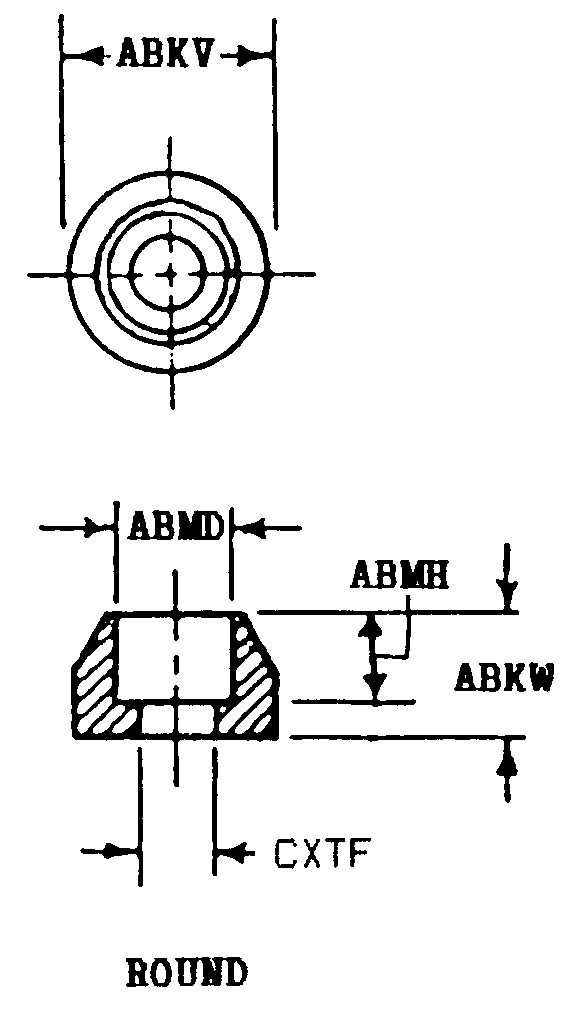

STYLE DESIGNATOR P5 ROUND

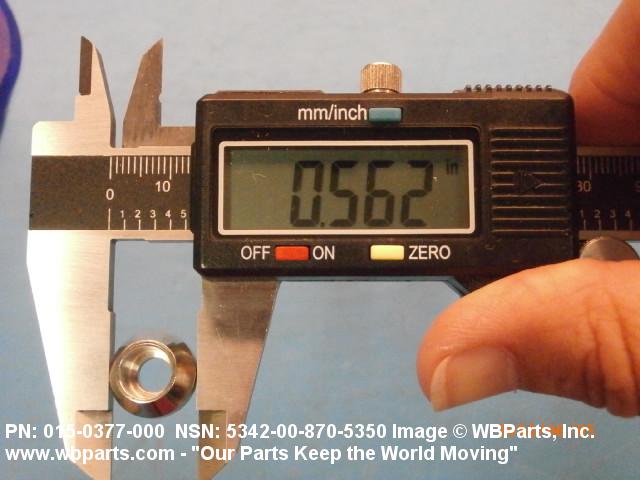

OUTSIDE DIAMETER 0.563 INCHES NOMINAL
OVERALL HEIGHT 0.250 INCHES NOMINAL
RECESS DIAMETER 0.320 INCHES NOMINAL
RECESS DEPTH 0.188 INCHES NOMINAL
HOLE DIAMETER 0.219 INCHES NOMINAL
MOUNTING METHOD FERRULE
III END ITEM IDENTIFICATION CONSOLIDATED GROUND SUPPORT EQUIPMENT

Restrictions/Controls & Freight Information | NSN 5340-01-476-3953

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 030480 BBC FERRULES
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-01-476-3953

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
