Product Details | DOUBLE ANGLE BRACKET
5340-01-455-6911 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 12421468, 5340-01-455-6911, 01-455-6911, 5340014556911, 014556911
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1998 | 01-455-6911 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-455-6911
Demand History | NSN 5340-01-455-6911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-455-6911 | 2016-12-356 | 1 | DIBBS |
| 5340-01-455-6911 | 2014-04-107 | 5 | DIBBS |
| 5340-01-455-6911 | 2014-04-96 | 5 | DIBBS |
| 5340-01-455-6911 | 2014-02-57 | 1 | DIBBS |
| 5340-01-455-6911 | 2014-02-41 | 1 | DIBBS |
| 5340-01-455-6911 | 2013-04-95 | 1 | DIBBS |
| 5340-01-455-6911 | 2010-01-23 | 1 | DIBBS |
| 5340-01-455-6911 | 2009-11-310 | 1 | DIBBS |
| 5340-01-455-6911 | 2009-08-240 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-455-6911
Related Products | NSN 5340-01-455-6911
Technical Data | NSN 5340-01-455-6911
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6063 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/9 FED SPEC SINGLE MATERIAL RESPONSE OR ASTM-B-221 ASSN STD SINGLE MATERIAL RESPONSE |

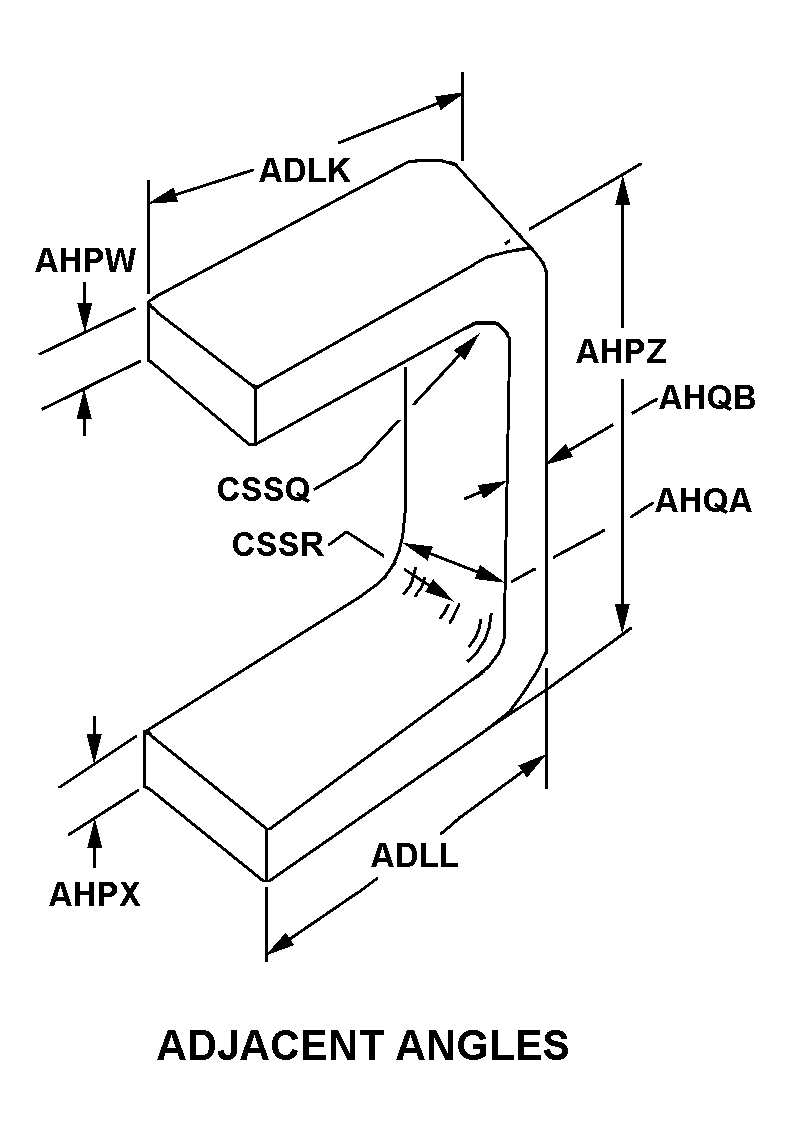

| STYLE DESIGNATOR | 13 ADJACENT ANGLES |
| FIRST LEG LENGTH | 50.8 MILLIMETERS NOMINAL |
| SECOND LEG LENGTH | 50.8 MILLIMETERS NOMINAL |
| FIRST LEG THICKNESS | 3.302 MILLIMETERS NOMINAL |
| SECOND LEG THICKNESS | 50.8 MILLIMETERS NOMINAL |
| CENTER SECTION HEIGHT | 50.8 MILLIMETERS NOMINAL |
| CENTER SECTION WIDTH | 190.5 MILLIMETERS NOMINAL |
| CENTER SECTION THICKNESS | 3.302 MILLIMETERS NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| SECOND LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 190.5 MILLIMETERS NOMINAL |
| SECOND LEG WIDTH | 190.5 MILLIMETERS NOMINAL |
| SECOND LEG END WIDTH | 158.7 MILLIMETERS NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 9.1 MILLIMETERS MINIMUM AND 9.9 MILLIMETERS MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 69.9 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 19.1 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 25.4 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 69.9 MILLIMETERS NOMINAL |
| SECOND LEG SLOT WIDTH | 9.1 MILLIMETERS MINIMUM AND 9.9 MILLIMETERS MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 107 ANGLE |

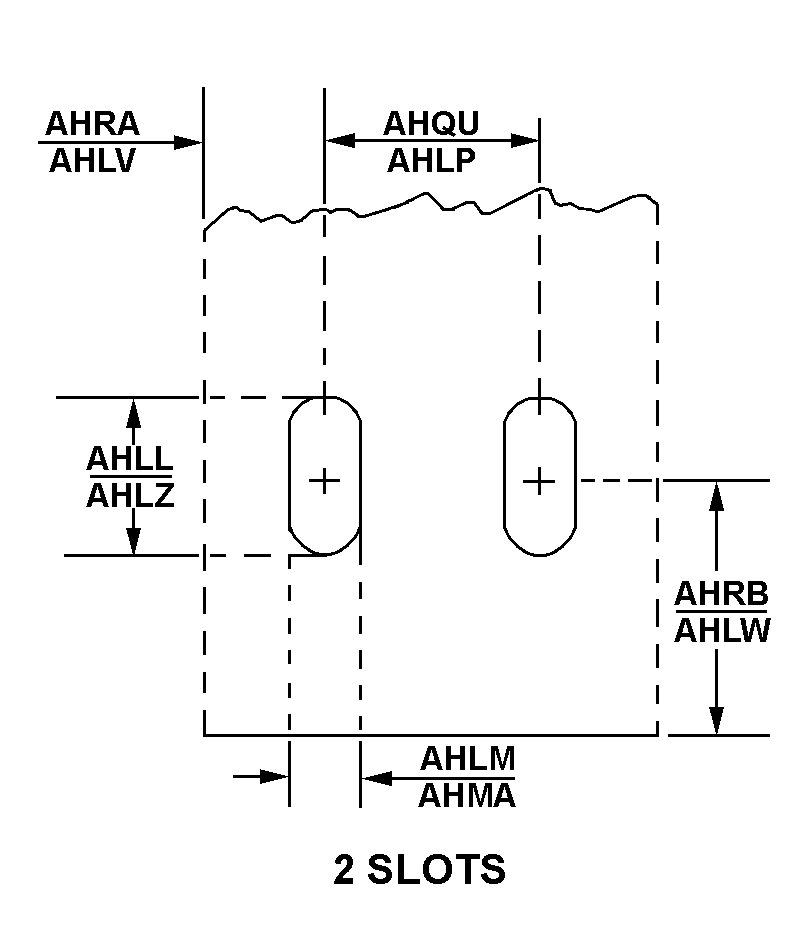

| SECOND LEG HOLE ARRANGEMENT STYLE | 205 2 SLOTS |
