NSN 5340-01-433-0820 AA556174SCBL, A-A-55617-4SCBL, 01-433-0820
Product Details | SWIVEL CASTER
5340-01-433-0820 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: AA556174SCBL, A-A-55617-4SCBL, 5340-01-433-0820, 01-433-0820, 5340014330820, 014330820
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUN 1996 | 01-433-0820 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-01-433-0820
Demand History | NSN 5340-01-433-0820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-433-0820 | 2018-02-53 | 43 | DIBBS |
| 5340-01-433-0820 | 2018-01-01 | 23 | DIBBS |
| 5340-01-433-0820 | 2017-11-333 | 20 | DIBBS |
| 5340-01-433-0820 | 2017-10-284 | 47 | DIBBS |
| 5340-01-433-0820 | 2017-10-276 | 47 | DIBBS |
| 5340-01-433-0820 | 2008-04-119 | 3 | DIBBS |
Cross Reference | NSN 5340-01-433-0820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-55617-4SCBL | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-433-0820
Related Products | NSN 5340-01-433-0820
Technical Data | NSN 5340-01-433-0820
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC, PHENOLIC TIRE |
| SAFE OPERATING LOAD RATING | 600.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 4.0000 INCHES NOMINAL |
| TREAD WIDTH | 1.5000 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 5.6300 INCHES NOMINAL |

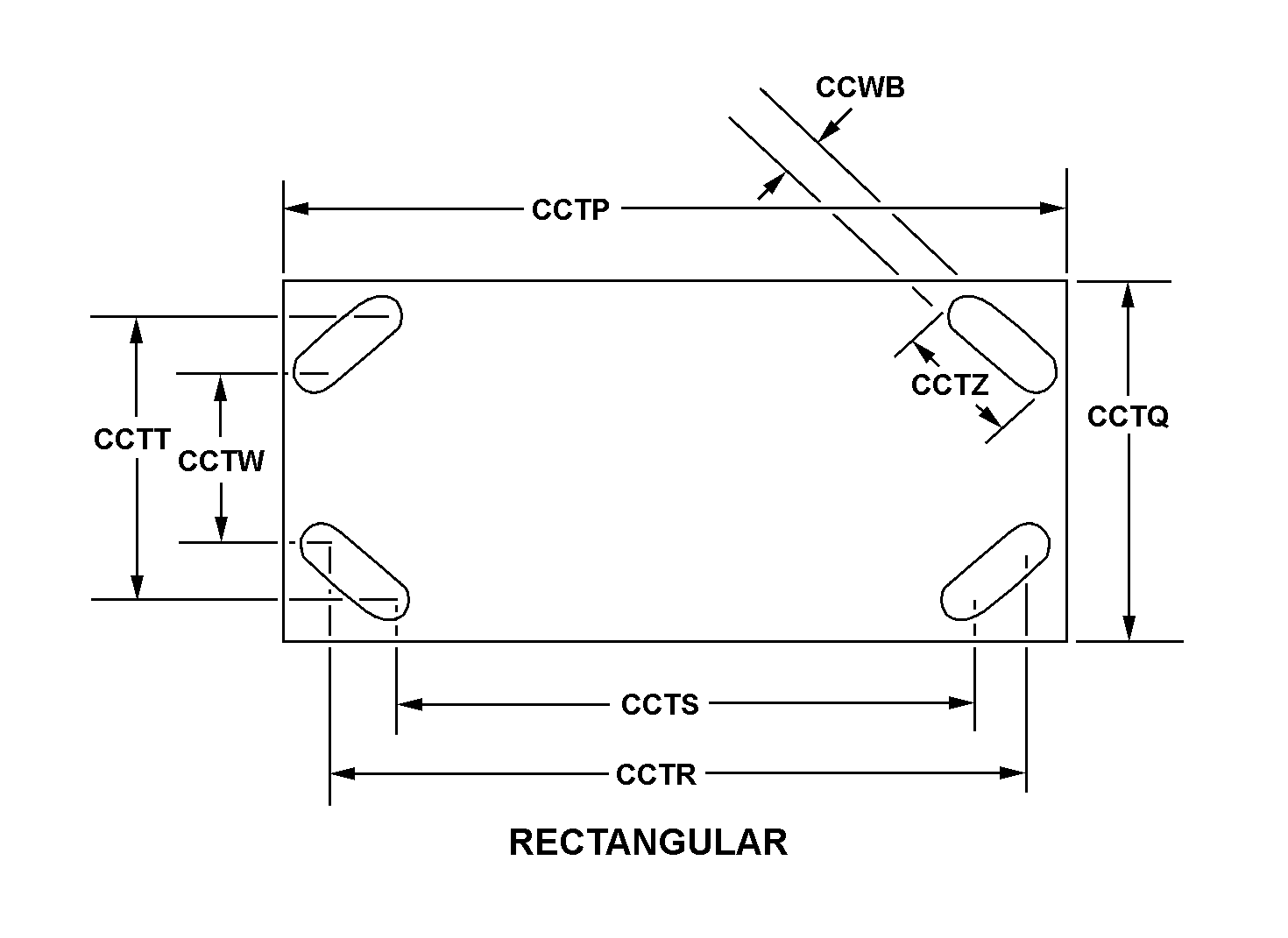

| PLATE STYLE | 12 RECTANGULAR |
| CASTER PLATE LENGTH | 4.5000 INCHES NOMINAL |
| CASTER PLATE WIDTH | 4.0000 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.6250 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.0000 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 3.0000 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 2.6250 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT WIDTH | 0.4370 INCHES NOMINAL |
| WHEEL BEARING TYPE | BALL OR ROLLER |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
| SPECIAL FEATURES | THE MOUNTING PLATE AND HORN ASSEMBLY SHALL BE MADE OF STEEL OR ALUMINUM;THE AXLE SHALL BE CONSTRUCTED OF STEEL AND SECURED BY LOCKNUT;THE CASTER HAS BRAKE AND SWIVEL LOCK |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55617-4SCBL |
Restrictions/Controls & Freight Information | NSN 5340-01-433-0820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-433-0820
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
