NSN 5340-01-430-7249 97529224, 975292-24, 01-430-7249
Product Details | ACCESS COVER
5340-01-430-7249 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 97529224, 975292-24, 5340-01-430-7249, 01-430-7249, 5340014307249, 014307249
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 MAY 1996 | 01-430-7249 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-01-430-7249
Cross Reference | NSN 5340-01-430-7249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 975292-24 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-430-7249
Technical Data | NSN 5340-01-430-7249
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 61 ROUND, MULTIEARS AND HOLES |
| BOLT CIRCLE DIAMETER | 3.250 INCHES NOMINAL |
| BODY RADIUS | 1.625 INCHES NOMINAL |
| INVERTED RADIUS | 0.210 INCHES NOMINAL |
| EAR RADIUS | 0.250 INCHES NOMINAL |
| EAR QUANTITY | 8 |
| BOLT CIRCLE HOLE QUANTITY | 8 |

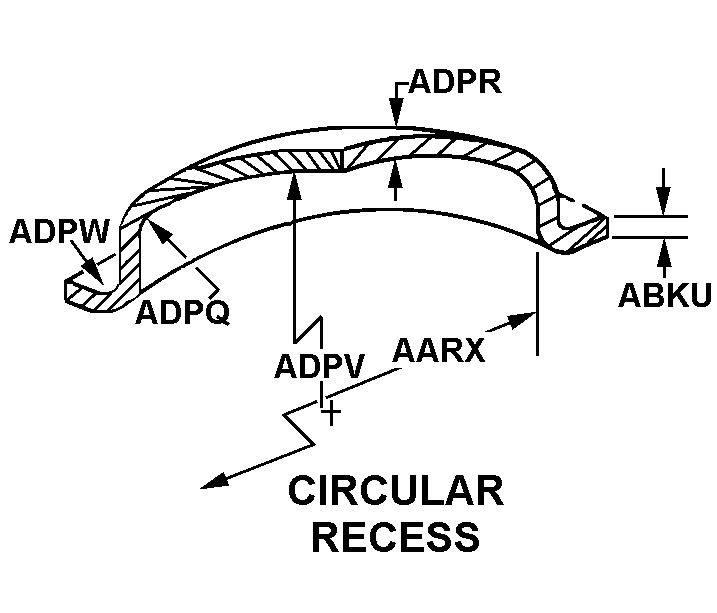

| CROSS-SECTIONAL SHAPE STYLE | 34 CIRCULAR RECESS |
| INSIDE DIAMETER | 2.550 INCHES NOMINAL |
| FLANGE THICKNESS | 0.110 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.030 INCHES NOMINAL |
| BODY THICKNESS | 0.110 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.030 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY A380.0 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE 1, CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.205 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| SPECIAL FEATURES | SUBMITTED AS COVER ASSEMBLY, ACTUATOR AND INCLUDES ACCOMODATION FOR VALVE OR FITTING ON TOP OF COVER WITH OVERALL HEIGHT 1.710 NOMINAL |
| END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5340-01-430-7249
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
