NSN 5340-01-430-3838 13076856009, 13076856-009, 01-430-3838
Product Details | DOUBLE ANGLE BRACKET
5340-01-430-3838 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 13076856009, 13076856-009, 5340-01-430-3838, 01-430-3838, 5340014303838, 014303838
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1996 | 01-430-3838 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-430-3838
Demand History | NSN 5340-01-430-3838
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-430-3838 | 2008-02-36 | 150 | DIBBS |
| 5340-01-430-3838 | 2008-01-24 | 150 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-430-3838
Related Products | NSN 5340-01-430-3838
Technical Data | NSN 5340-01-430-3838
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766,CL302,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 11 DOUBLE ANGLE |
| FIRST LEG LENGTH | 0.460 INCHES NOMINAL |
| SECOND LEG LENGTH | 2.420 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.040 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.040 INCHES NOMINAL |
| CENTER SECTION HEIGHT | 1.030 INCHES NOMINAL |
| CENTER SECTION WIDTH | 0.620 INCHES NOMINAL |
| CENTER SECTION THICKNESS | 0.040 INCHES NOMINAL |
| FIRST LEG ANGLE | 0.060 RADIANS NOMINAL |
| SECOND LEG ANGLE | 0.060 RADIANS NOMINAL |
| FIRST LEG STYLE | 114 CHAMFERED ENDS |
| FIRST LEG WIDTH | 0.620 INCHES NOMINAL |
| FIRST LEG END WIDTH | 0.420 INCHES NOMINAL |
| SECOND LEG WIDTH | 0.620 INCHES NOMINAL |
| FIRST LEG CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.155 INCHES MINIMUM AND 0.161 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.310 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |

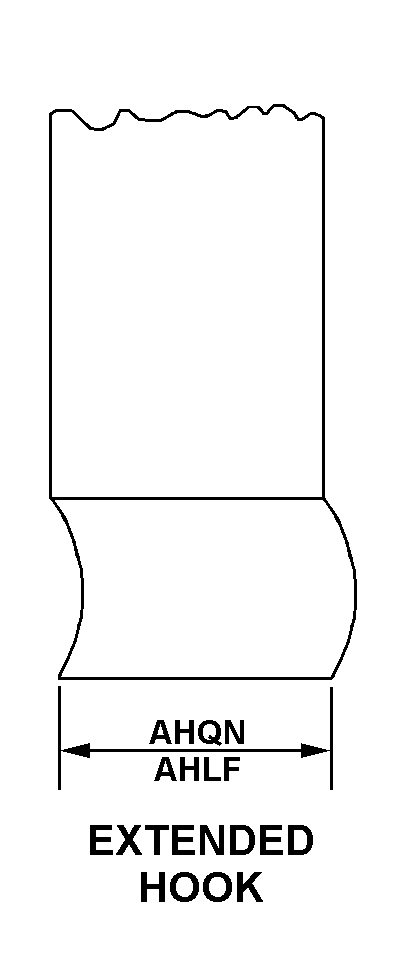

| SECOND LEG STYLE | 113 EXTENDED HOOK |
| SECOND LEG HOLE ARRANGEMENT STYLE | 131 NO HOLE |
| SPECIAL FEATURES | ASSEMBLY INCLUDES;REINFORCEMENT PLATE ALONG SECOND LEG LENGTH DIMENSIONS,2.050 INCH IN LENGTH,.620 INCH IN WIDTH;INSULATED SLEEVE P/N-M23053/5-109-0;SOLID COUNTERSUNK RIVET P/N-MS20426AD2-3;SELF-LOCKING PLATE NUT P/N-NAS1068RX06 |
Restrictions/Controls & Freight Information | NSN 5340-01-430-3838
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-430-3838
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
