Product Details | EXTENSION DRAWER SLIDE

5340-01-423-9978 An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position.

Part Alternates: 1302072AL, 1302072A-L, 600145P3, 5340-01-423-9978, 01-423-9978, 5340014239978, 014239978

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 18 JAN 1996 01-423-9978

Drawings & Photos | NSN 5340-01-423-9978


Cross Reference | NSN 5340-01-423-9978

Part Number Cage Code Manufacturer
1302072A-L 05236 JONATHAN ENGINEERED SOLUTIONS CORP. DBA JONATHAN ENGINEERED SOLUTIONS
600145P3 94117 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-423-9978

Technical Data | NSN 5340-01-423-9978

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 7075 OVERALL
SURFACE TREATMENT ANODIZE OVERALL

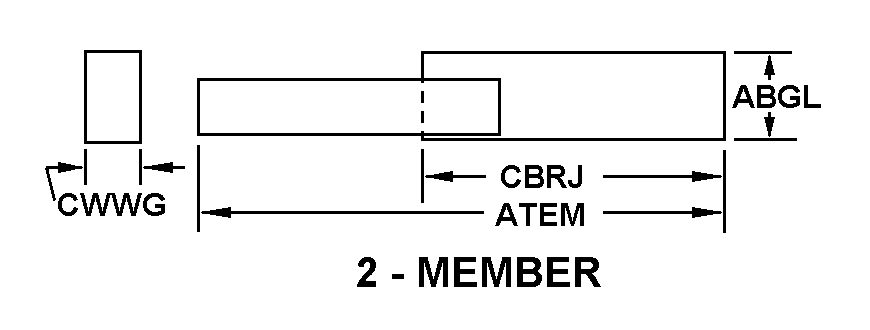

STYLE DESIGNATOR L3 2-MEMBER
WIDTH 2.630 INCHES NOMINAL
EXTENDED LENGTH 38.000 INCHES NOMINAL
CLOSED LENGTH 18.000 INCHES NOMINAL
MOUNTING METHOD MOUNTING SLOTS
MOUNTING FACILITY QUANTITY 4
MOUNTING FACILITY DIAMETER 0.176 INCHES MINIMUM AND 0.182 INCHES MAXIMUM
SIDE FOR WHICH DESIGNED RIGHT HAND

Restrictions/Controls & Freight Information | NSN 5340-01-423-9978

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
