NSN 5340-01-415-8859 M85449/1-24, M85449124, 01-415-8859
Product Details | RETAINING STRAP
5340-01-415-8859 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: M85449/1-24, M85449124, 5340-01-415-8859, 01-415-8859, 5340014158859, 014158859
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1995 | 01-415-8859 | 05072 ( STRAP, RETAINING ) |

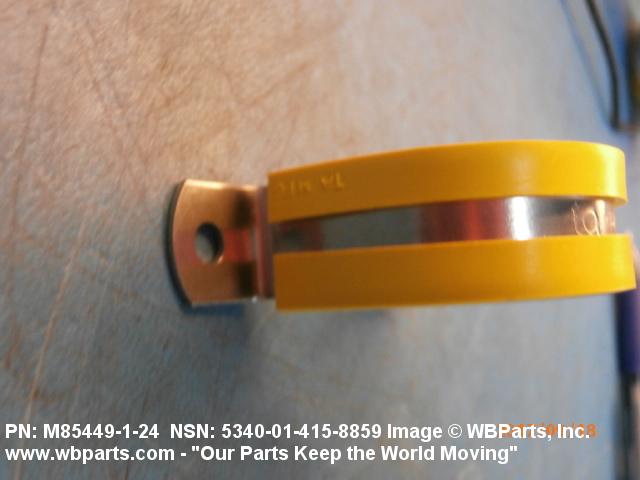

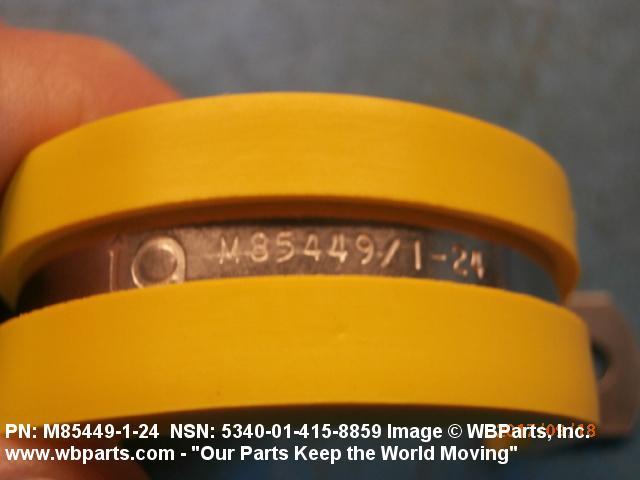

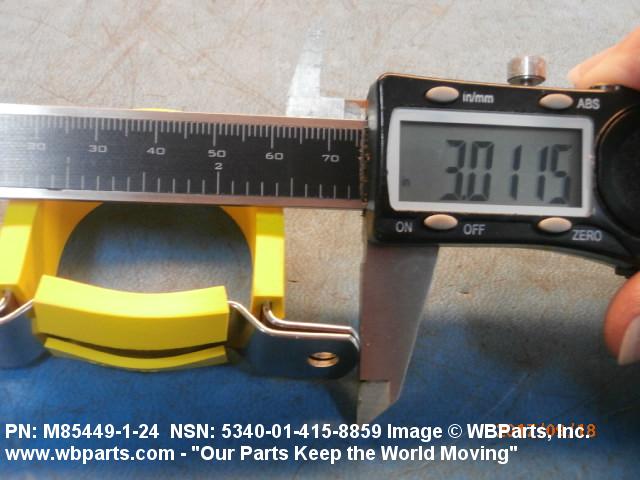

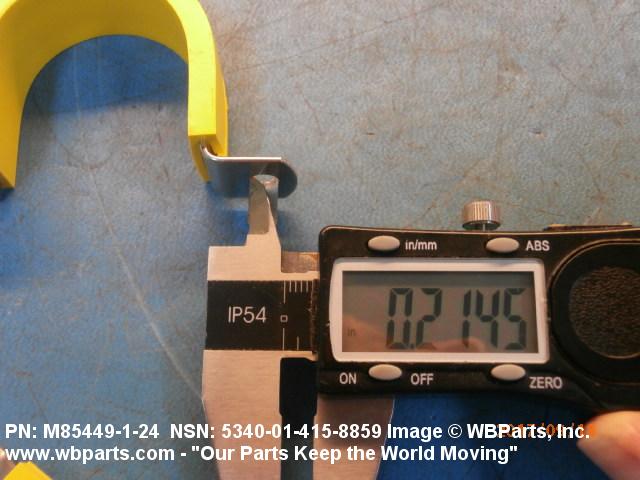

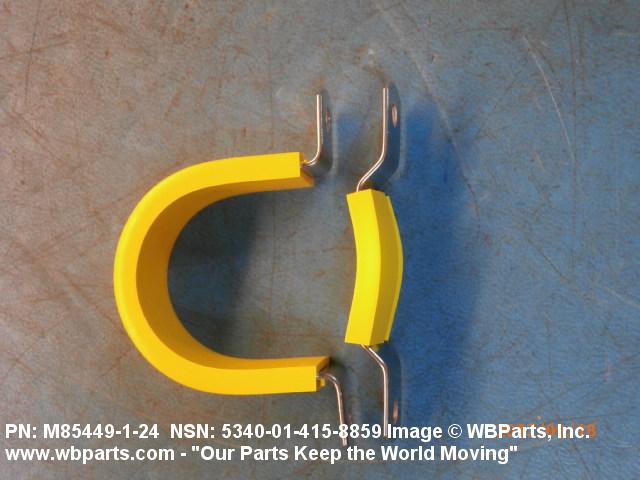

Drawings & Photos | NSN 5340-01-415-8859
Demand History | NSN 5340-01-415-8859
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-415-8859 | 2021-12-346 | 246 | DIBBS |
| 5340-01-415-8859 | 2021-11-318 | 513 | DIBBS |
| 5340-01-415-8859 | 2021-11-312 | 384 | DIBBS |
| 5340-01-415-8859 | 2021-10-298 | 384 | DIBBS |
| 5340-01-415-8859 | 2021-10-274 | 864 | DIBBS |
| 5340-01-415-8859 | 2021-09-263 | 864 | DIBBS |
| 5340-01-415-8859 | 2021-09-250 | 864 | DIBBS |
| 5340-01-415-8859 | 2021-08-241 | 286 | DIBBS |
| 5340-01-415-8859 | 2021-07-210 | 163 | DIBBS |
| 5340-01-415-8859 | 2021-02-59 | 291 | DIBBS |
| 5340-01-415-8859 | 2021-02-39 | 238 | DIBBS |
| 5340-01-415-8859 | 2021-01-28 | 238 | DIBBS |
| 5340-01-415-8859 | 2020-10-302 | 53 | DIBBS |
| 5340-01-415-8859 | 2020-03-71 | 1 | DIBBS-RFPs |
| M85449124 | 2017-09-248 | 5 | United States |
| 5340-01-415-8859 | 2013-10-300 | 289 | DIBBS |
| 5340-01-415-8859 | 2013-09-267 | 500 | DIBBS |
| 5340-01-415-8859 | 2013-09-251 | 500 | DIBBS |
| 5340-01-415-8859 | 2009-05-138 | 1 | US |
| 5340-01-415-8859 | 2009-01-22 | 736 | DIBBS |
| 5340-01-415-8859 | 2008-08-242 | 625 | DIBBS |
| 5340-01-415-8859 | 2008-02-50 | 339 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-415-8859
Related Products | NSN 5340-01-415-8859
Technical Data | NSN 5340-01-415-8859
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5510 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STYLE DESIGNATOR | A21 SADDLE ARCH |
| OVERALL LENGTH | 3.7080 INCHES NOMINAL |

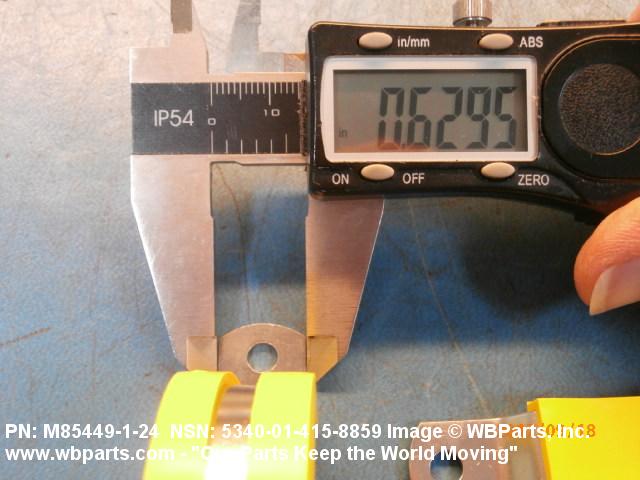

| OVERALL WIDTH | 0.6250 INCHES MINIMUM AND 0.6400 INCHES MAXIMUM |

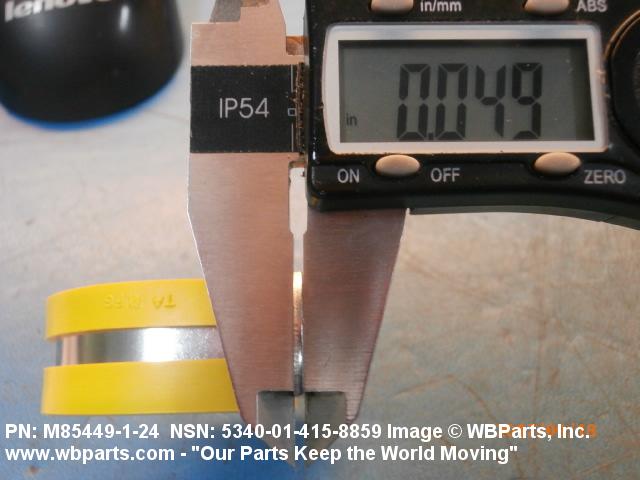

| MATERIAL THICKNESS | 0.0500 INCHES NOMINAL |

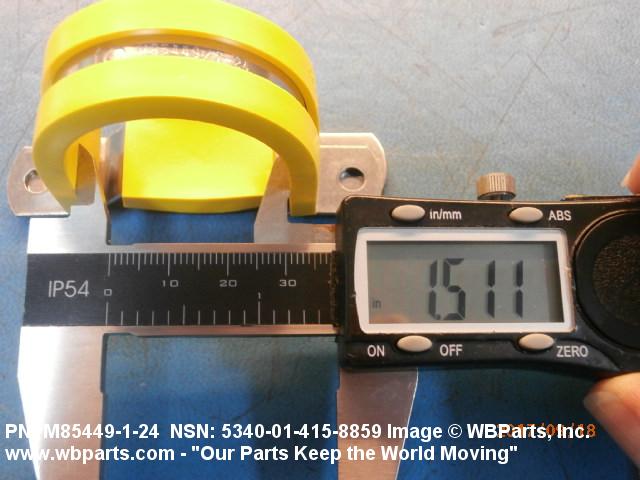

| INSIDE DIAMETER/ARCH LENGTH | 1.5000 INCHES NOMINAL |
| CUSHION | INCLUDED |
| CUSHIONING MATERIAL | RUBBER, SYNTHETIC |
| MOUNTING PAD | INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-01-415-8859
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-415-8859
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
