NSN 5340-01-406-7317 174D1036P1, 01-406-7317, 014067317
Product Details | DOOR HANDLE
5340-01-406-7317 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 174D1036P1, 5340-01-406-7317, 01-406-7317, 5340014067317, 014067317
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1995 | 01-406-7317 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 5340-01-406-7317
Cross Reference | NSN 5340-01-406-7317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 174D1036P1 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-406-7317
Technical Data | NSN 5340-01-406-7317
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ANSI H35.1 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE 2, CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |

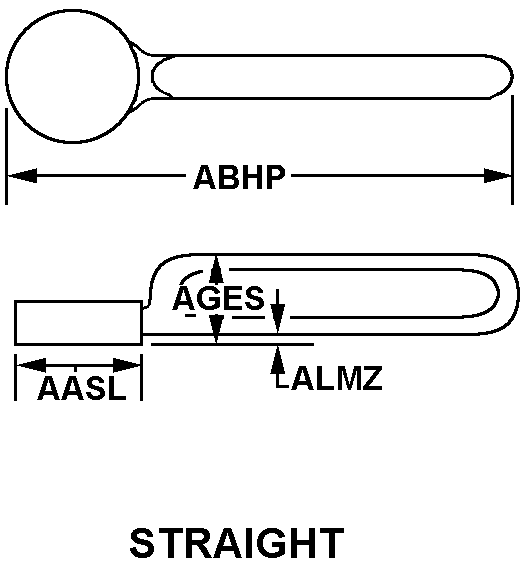

| STYLE DESIGNATOR | C25 STRAIGHT |
| HANDLE HEIGHT | 1.750 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 7 |
| SPECIAL FEATURES | HANDLE CONTAINS 3 MOUNTING SLOTS,0.281 IN. WIDTH BY 0.406 IN. LENGTH, CONTAINS 4 COUNTERBORED MOUNTING SLOTS,0.204 IN. WIDTH BY 0.406 IN. LENGTH, COUNTERBORE 0.406 IN. WIDTH BY 0.500 IN. LENGTH TO 0.150 IN. DEPTH; ORIGINAL NAME ON DRAWING IS HANDLE,RIGHT |
| III END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5340-01-406-7317
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
