NSN 5340-01-401-5417 588CS5 NON-ASBESTOS, 588CS5NONASBESTOS, 01-401-5417

Product Details | LOOP CLAMP

5340-01-401-5417 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: 588CS5 NON-ASBESTOS, 588CS5NONASBESTOS, 5340-01-401-5417, 01-401-5417, 5340014015417, 014015417

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	17 DEC 1994	01-401-5417	17532 ( CLAMP, LOOP )

Drawings & Photos | NSN 5340-01-401-5417

Part Number	Request Date	QTY	Origin
588CS5 NON-ASBESTOS	2022-09-254	277	DIBBS
588CS5 NON-ASBESTOS	2020-01-15	108	DIBBS
588CS5 NON-ASBESTOS	2019-08-220	109	DIBBS
5340-01-401-5417	2014-01-29	100	DIBBS
5340-01-401-5417	2012-12-342	75	DIBBS
5340-01-401-5417	2012-10-290	75	DIBBS
5340-01-401-5417	2012-08-243	49	DIBBS
5340-01-401-5417	2012-05-142	10	DIBBS
5340-01-401-5417	2011-11-328	26	DIBBS
5340-01-401-5417	2011-09-264	10	DIBBS
5340-01-401-5417	2011-02-59	25	DIBBS
5340-01-401-5417	2011-02-59	35	DIBBS
5340-01-401-5417	2011-02-59	44	DIBBS
5340-01-401-5417	2011-02-59	47	DIBBS
5340-01-401-5417	2009-06-166	236	DIBBS
5340-01-401-5417	2009-06-162	250	DIBBS
5340-01-401-5417	2009-04-91	270	DIBBS
5340-01-401-5417	2009-03-86	325	DIBBS
5340-01-401-5417	2008-12-340	325	DIBBS
5340-01-401-5417	2008-11-317	84	DIBBS
5340-01-401-5417	2008-09-261	73	DIBBS
5340-01-401-5417	2008-08-225	62	DIBBS

Cross Reference | NSN 5340-01-401-5417

Part Number	Cage Code	Manufacturer
588CS5 NON-ASBESTOS	83930	TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-401-5417

Compare

Related Products | NSN 5340-01-401-5417

5340-01-405-9893, 5340-01-405-9926, 5340-01-405-9927, 5340-01-405-9928, 5340-01-405-9929

Technical Data | NSN 5340-01-401-5417

Characteristic	Specifications
MATERIAL	PLASTIC CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE BAND
SURFACE TREATMENT	CADMIUM BAND

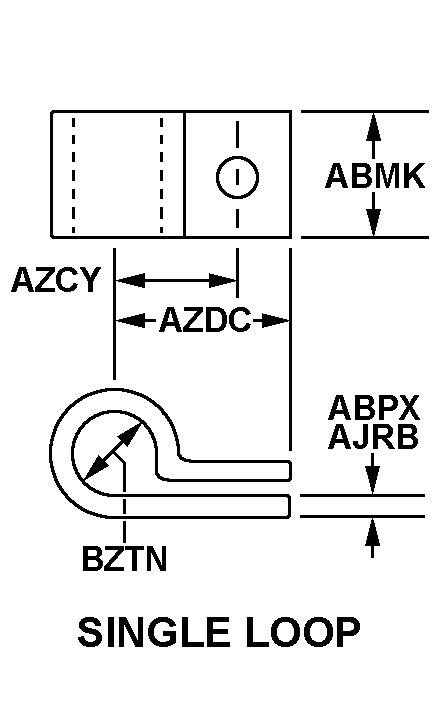

STYLE DESIGNATOR	A2 SINGLE LOOP
OVERALL WIDTH	0.500 INCHES NOMINAL
MATERIAL THICKNESS	0.029 INCHES MINIMUM AND 0.035 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.530 INCHES MINIMUM AND 0.590 INCHES MAXIMUM
DISTANCE FROM LOOP CENTER TO TONGUE END	0.748 INCHES MINIMUM AND 0.808 INCHES MAXIMUM
LOOP INSIDE DIAMETER	0.298 INCHES MINIMUM AND 0.328 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
ENVIRONMENTAL ATTRIBUTE CODE	ASBESTOS ALTERNATIVE PRODUCTS

Restrictions/Controls & Freight Information | NSN 5340-01-401-5417

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Environmental Attribute Code:	JG
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062140	GROUND CLAMPS IN BOXES
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-401-5417

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
