NSN 5340-01-394-3560 13MPE-101-013 PC. 12, 13MPE101013PC12, 5105224 ITEM 608
Product Details | DOORSTOP
5340-01-394-3560 A device generally made of wood or metal consisting of a base and a tip; may or may not have a shank. The tip has a rubber buffer imbedded in it to prevent the door from striking or damaging the wall or baseboard.
Part Alternates: 13MPE-101-013 PC. 12, 13MPE101013PC12, 5105224 ITEM 608, 5105224ITEM608, 5742, 574-2, 574DP2CHR, 5340-01-394-3560, 01-394-3560, 5340013943560, 013943560
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1994 | 01-394-3560 | 06698 ( DOORSTOP ) |
Drawings & Photos | NSN 5340-01-394-3560
Demand History | NSN 5340-01-394-3560
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-394-3560 | 2017-05-124 | 25 | DIBBS |
| 5340-01-394-3560 | 2017-02-32 | 17 | DIBBS |
| 5340-01-394-3560 | 2016-12-348 | 1 | DIBBS |
| 5340-01-394-3560 | 2016-03-70 | 5 | DIBBS |
| 5340-01-394-3560 | 2016-02-48 | 20 | DIBBS |
| 5340-01-394-3560 | 2014-09-273 | 20 | DIBBS |
| 5340-01-394-3560 | 2012-08-243 | 8 | DIBBS |
| 5340-01-394-3560 | 2012-07-201 | 58 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-394-3560
Technical Data | NSN 5340-01-394-3560
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |

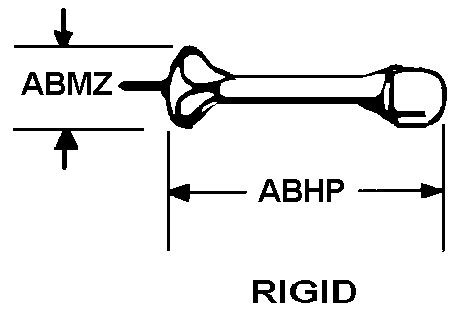

| STYLE DESIGNATOR | N1 RIGID |
| OVERALL LENGTH | 3.2500 INCHES NOMINAL |
| DIAMETER | 1.7500 INCHES NOMINAL |
| UNIT TYPE | BASEBOARD MOUNTED |
| ATTACHMENT METHOD | SCREW |
| SPECIAL FEATURES | THERE IS A RUBBER TIP TO PROTECT DOOR FROM DAMAGE |
Restrictions/Controls & Freight Information | NSN 5340-01-394-3560
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-394-3560
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
