NSN 5340-01-390-4426 6874420001, 687-4420-001, 01-390-4426
Product Details | ACCESS COVER
5340-01-390-4426 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 6874420001, 687-4420-001, 5340-01-390-4426, 01-390-4426, 5340013904426, 013904426
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAY 1994 | 01-390-4426 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-01-390-4426
Cross Reference | NSN 5340-01-390-4426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 687-4420-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-390-4426
Technical Data | NSN 5340-01-390-4426
| Characteristic | Specifications |
|---|---|

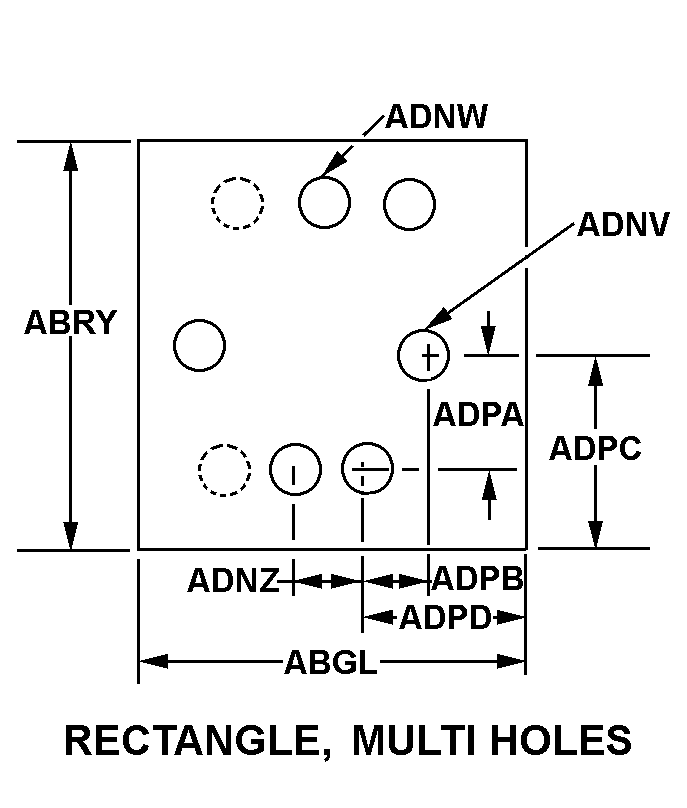

| PERIPHERAL SHAPE STYLE | 28 RECTANGLE, MULTI HOLES |
| HOLE QUANTITY ALONG LENGTH | 25 |
| HOLE QUANTITY ALONG WIDTH | 7 |
| CORNER RADIUS | 0.450 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 26 FLAT |
| BODY THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727 MIL SPEC SINGLE TREATMENT RESPONSE |
| SECURING DEVICE TYPE | SPECIAL |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.109 INCHES NOMINAL |
| FEATURES PROVIDED | SPECIAL MARKING |
| SPECIAL FEATURES | ORIGINAL NAME COVER, OUTSIDE RECEIVER; FINISH ALKALINE TIN PLATE 0.00015 MIN THK TYPE I; THERE ARE 6 ADDITIONAL HOLES W/DIA 0.250 IN |
| END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5340-01-390-4426
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
