NSN 5340-01-388-7087 968C8651, 968C865-1, 01-388-7087
Product Details | RETAINING STRAP
5340-01-388-7087 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: 968C8651, 968C865-1, 5340-01-388-7087, 01-388-7087, 5340013887087, 013887087
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1994 | 01-388-7087 | 05072 ( STRAP, RETAINING ) |

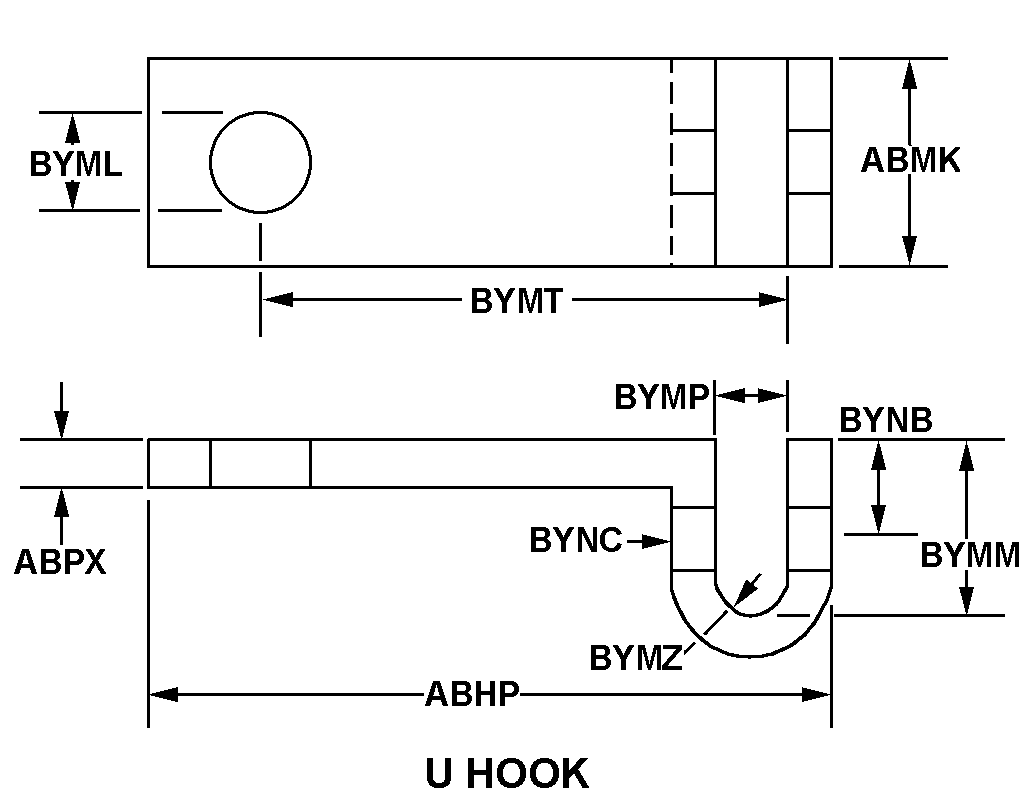

Drawings & Photos | NSN 5340-01-388-7087
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-388-7087
Technical Data | NSN 5340-01-388-7087
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, ASTM A167 |
| STYLE DESIGNATOR | A24 U HOOK |
| OVERALL WIDTH | 0.400 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.185 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
| III END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5340-01-388-7087
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
