NSN 5340-01-387-6030 CA12129101, CA12129-101, 9M8811
Product Details | CLAMP BOLT ASSEMBLY

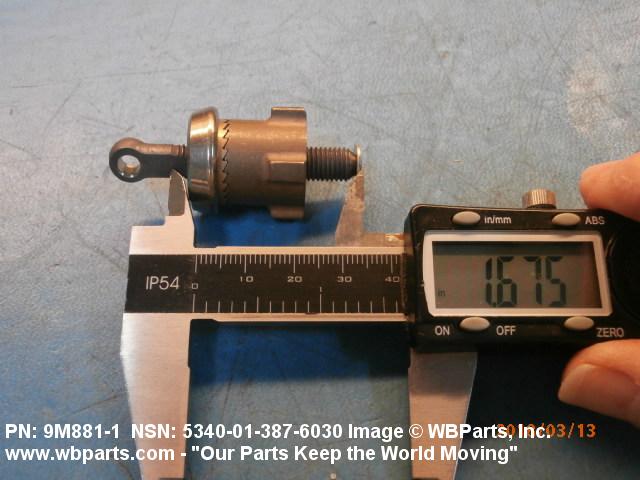

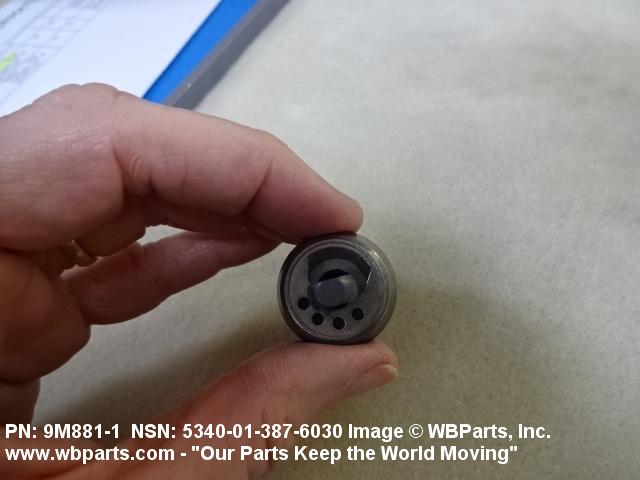

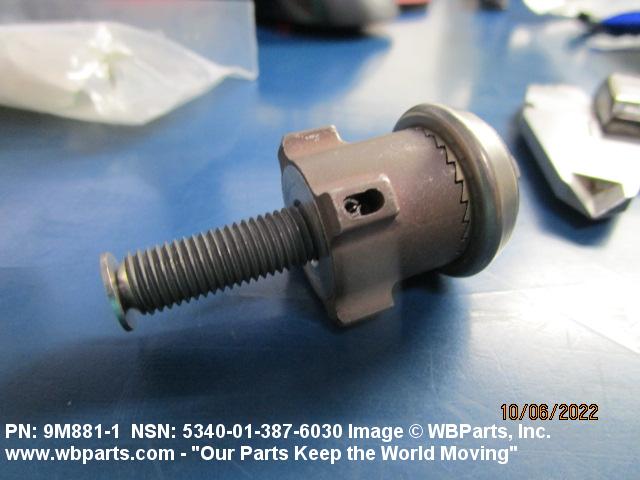

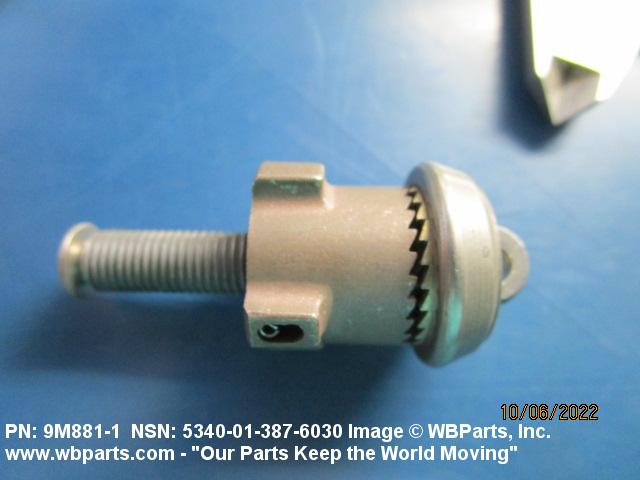

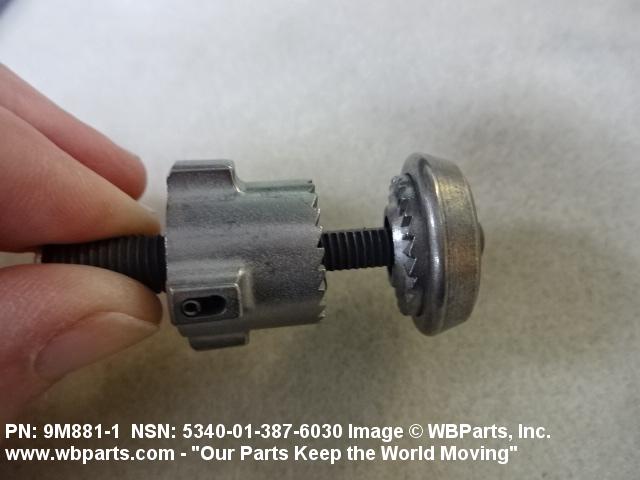

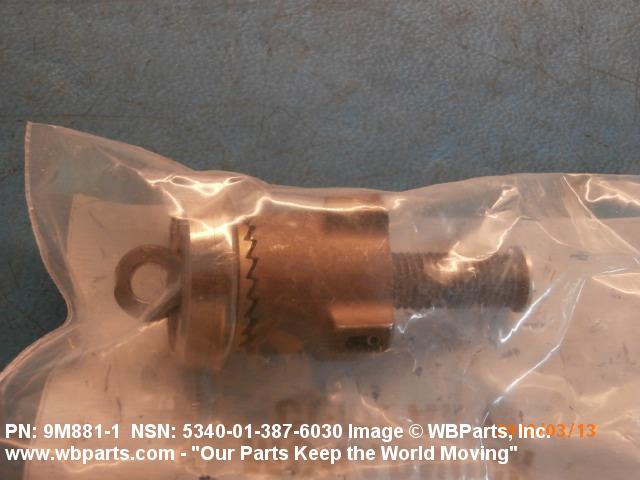

5340-01-387-6030 A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like.

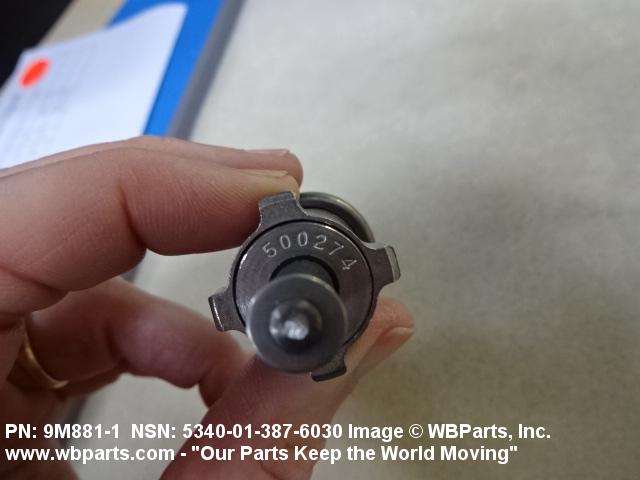

Part Alternates: CA12129101, CA12129-101, 9M8811, 9M881-1, 10113300 , 500274, 5340-01-387-6030, 01-387-6030, 5340013876030, 013876030
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 1994 | 01-387-6030 | 20271 ( BOLT ASSEMBLY, CLAMP ) |

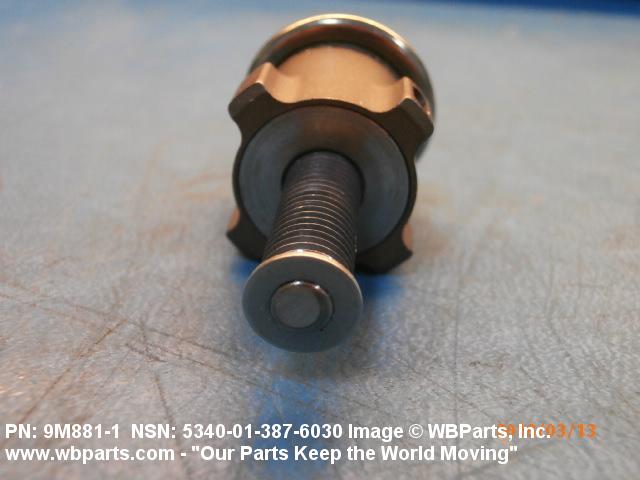

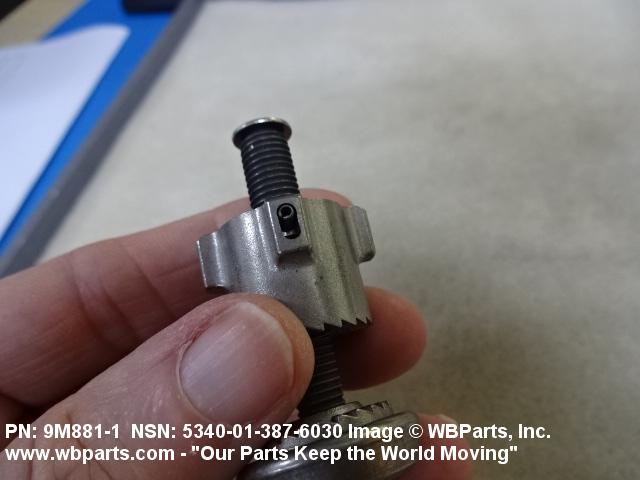

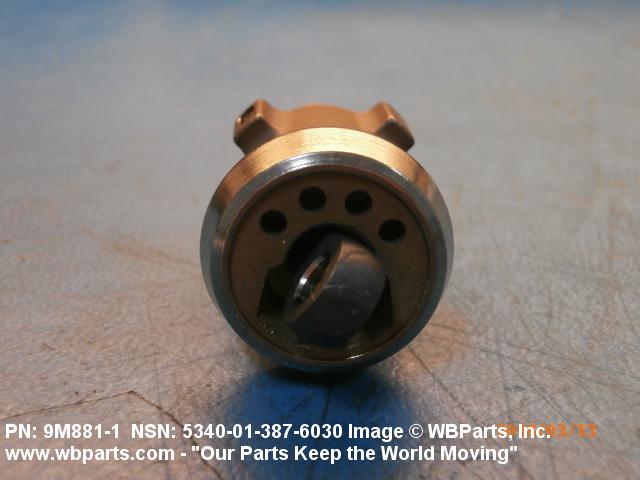

Drawings & Photos | NSN 5340-01-387-6030
Demand History | NSN 5340-01-387-6030
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-387-6030 | 2022-09-245 | 10 | United States |
| 5340-01-387-6030 | 2018-01-31 | 15 | DIBBS |
| 5340-01-387-6030 | 2018-01-09 | 5 | France |
| 5340-01-387-6030 | 2017-05-124 | 3 | DIBBS |
| 5340-01-387-6030 | 2016-05-138 | 6 | US |
| 5340-01-387-6030 | 2016-04-118 | 15 | DIBBS |
| 5340-01-387-6030 | 2015-07-191 | 2 | United States |
| 5340-01-387-6030 | 2012-11-316 | 29 | DIBBS |
| 5340-01-387-6030 | 2012-09-270 | 16 | DIBBS |
| 5340-01-387-6030 | 2010-06-179 | 45 | DIBBS |
| 5340-01-387-6030 | 2009-07-210 | 15 | DIBBS |
| 500274 | 2009-01-07 | 100 | United States |
| 5340-01-387-6030 | 2008-10-303 | 33 | DIBBS |
| 5340-01-387-6030 | 2008-03-88 | 45 | DIBBS |
Cross Reference | NSN 5340-01-387-6030
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-387-6030
Related Products | NSN 5340-01-387-6030
Technical Data | NSN 5340-01-387-6030

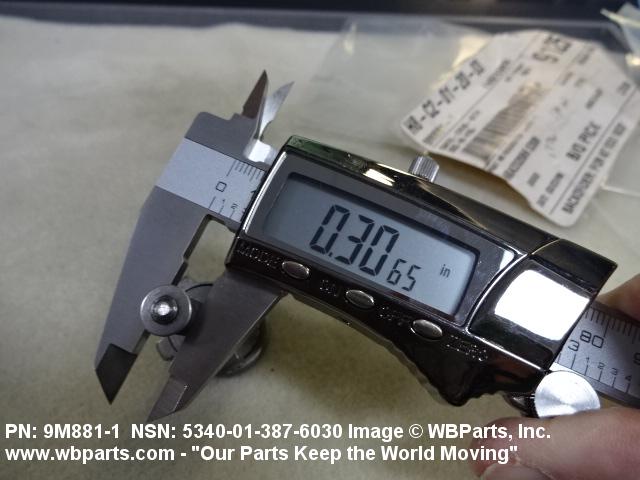

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OR STEEL COMP 304 COLLAR STEEL CORROSION RESISTING SCREW STEEL COMP 302 SLEEVE STEEL COMP 301 WASHER STEEL CORROSION RESISTING RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE COLLAR AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5629 FED SPEC 2ND MATERIAL RESPONSE SCREW QQ-S-764 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE WASHER AISI1632 ASSN STD SINGLE MATERIAL RESPONSE RING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 WING NO. 1 |
| MOUNTING METHOD | BOLT |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |

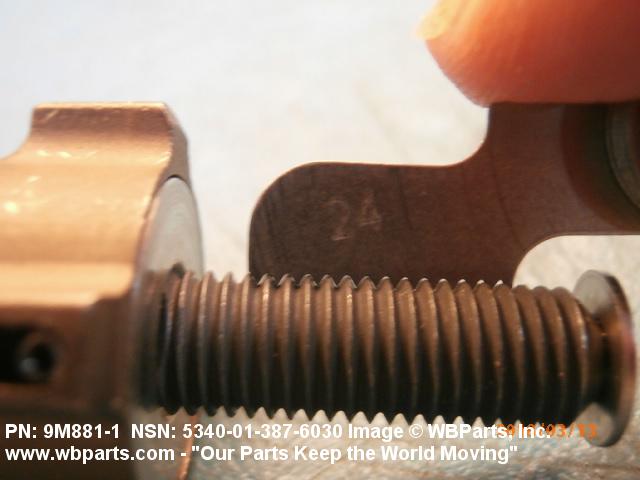

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

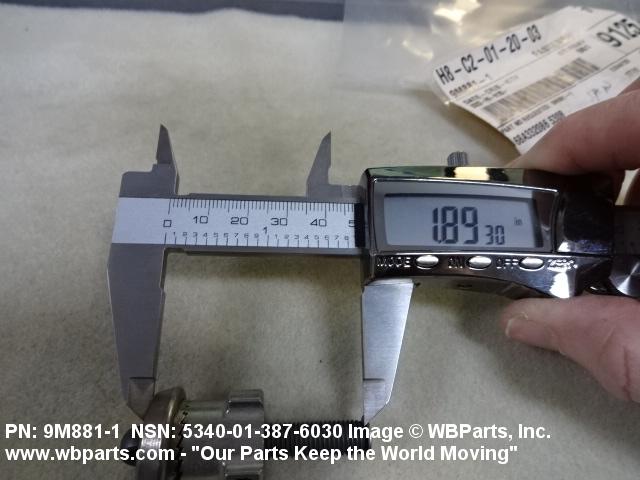

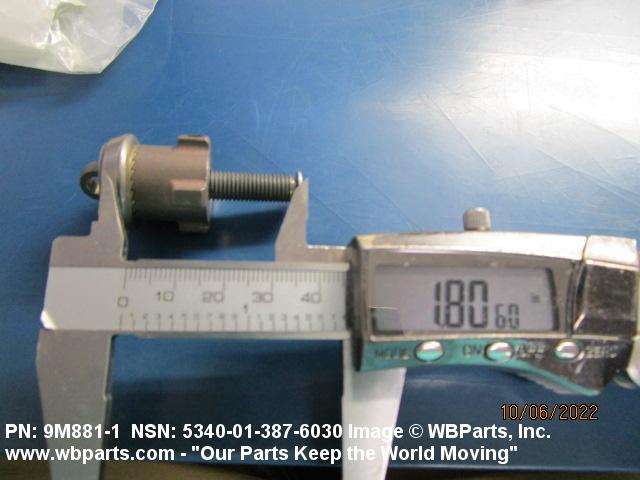

| THREAD LENGTH | 1.800 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AIRCRAFT, HORNET F/A-18; F/A-18E/F HORNET AIRCRAFT; AIRCRAFT, EAGLE F-15 |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | 9M881-1 |
Restrictions/Controls & Freight Information | NSN 5340-01-387-6030
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
