NSN 5340-01-378-8738 10964SS10326B, 10964-SS-1032-6B, 2636220G001
Product Details | BOW HANDLE
5340-01-378-8738 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: 10964SS10326B, 10964-SS-1032-6B, 2636220G001, 5340-01-378-8738, 01-378-8738, 5340013788738, 013788738
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 AUG 1993 | 01-378-8738 | 20350 ( HANDLE, BOW ) |

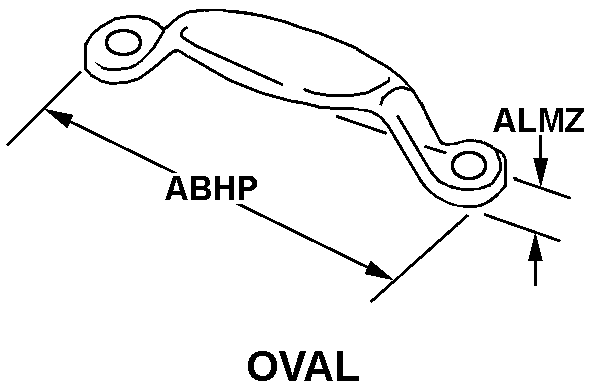

Drawings & Photos | NSN 5340-01-378-8738
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-378-8738
Technical Data | NSN 5340-01-378-8738
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| COLOR | BLACK OVERALL |
| STYLE DESIGNATOR | B22 OVAL |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.750 INCHES NOMINAL |
| MOUNTING METHOD | BOLT |
| MOUNTING FACILITY QUANTITY | 2 |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.281 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-378-8738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
