NSN 5340-01-376-1364 M85449/3-12, M85449312, MIL-C-85449/3-12

Product Details | RETAINING STRAP

5340-01-376-1364 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.

Part Alternates: M85449/3-12, M85449312, MIL-C-85449/3-12, MILC85449312, 5340-01-376-1364, 01-376-1364, 5340013761364, 013761364

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 MAY 1993	01-376-1364	05072 ( STRAP, RETAINING )

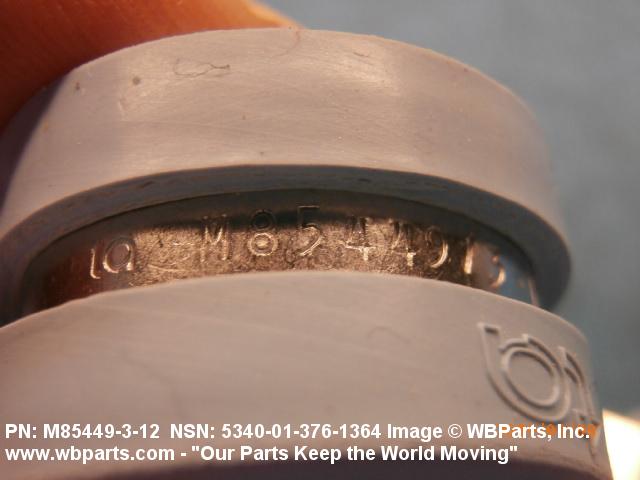

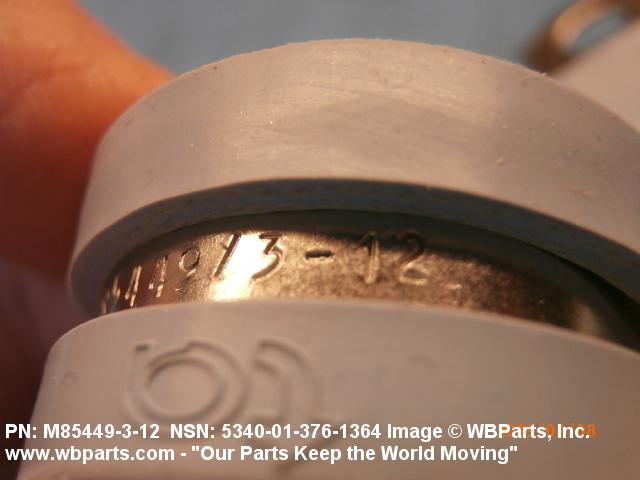

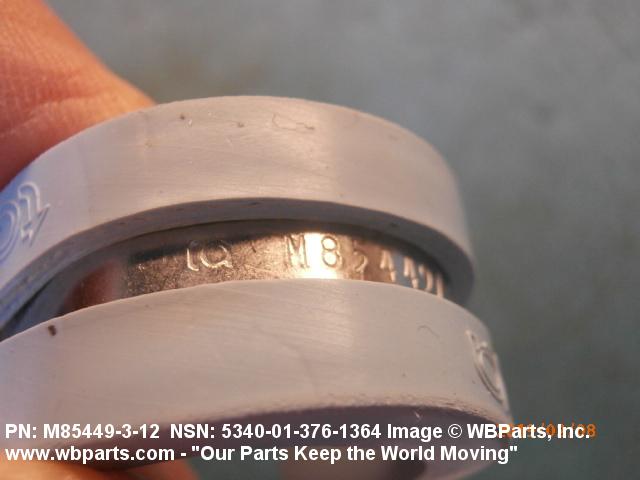

Drawings & Photos | NSN 5340-01-376-1364

Part Number	Request Date	QTY	Origin
M85449312	2021-11-323	2	Italy
5340-01-376-1364	2020-01-17	1	United States
5340-01-376-1364	2020-01-17	50	United States
5340-01-376-1364	2020-01-17	100	United States
M85449312	2019-01-23	20	United States
M85449312	2019-01-23	25	United States
M85449312	2019-01-23	50	United States
M85449312	2019-01-23	100	United States
M85449312	2017-11-306	6	United States
M85449312	2017-11-306	10	United States
M85449312	2017-03-74	16	United States
M85449312	2017-03-74	25	United States
M85449312	2017-03-74	50	United States
M85449312	2010-03-81	15	United States

Cross Reference | NSN 5340-01-376-1364

Part Number	Cage Code	Manufacturer
M85449/3-12	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85449/3-12	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-376-1364

Compare

Related Products | NSN 5340-01-376-1364

5340-01-376-1365, 5340-01-376-1367, 5340-01-376-1829, 5340-01-376-1830, 5340-01-376-1832

Technical Data | NSN 5340-01-376-1364

Characteristic	Specifications
MATERIAL	STEEL, AMS 5510
SURFACE TREATMENT	PASSIVATED, QQ-P-35

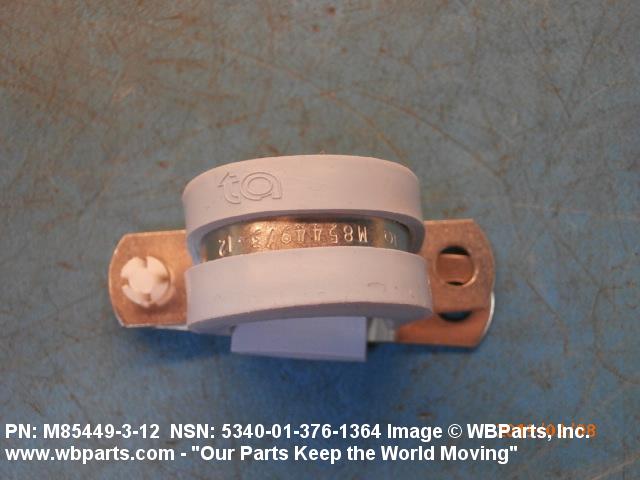

STYLE DESIGNATOR	A21 SADDLE ARCH
OVERALL LENGTH	2.068 INCHES NOMINAL

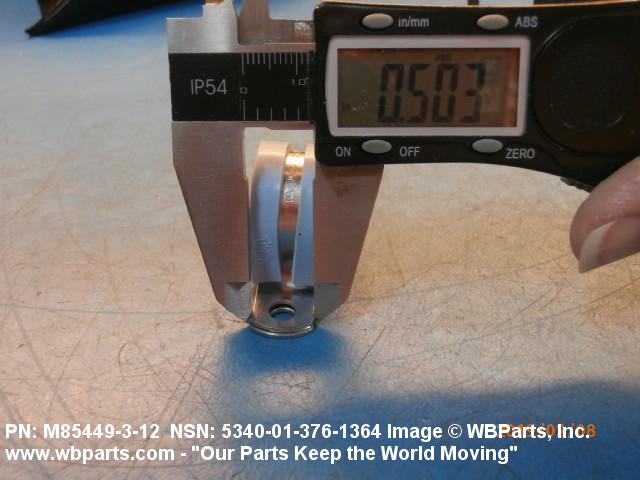

OVERALL WIDTH	0.500 INCHES NOMINAL

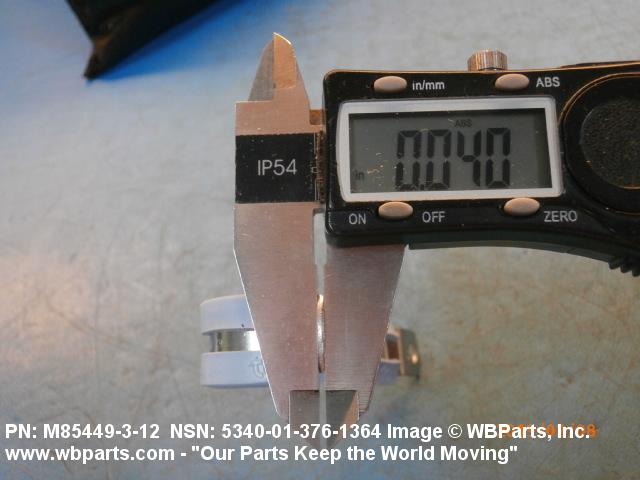

MATERIAL THICKNESS	0.040 INCHES NOMINAL

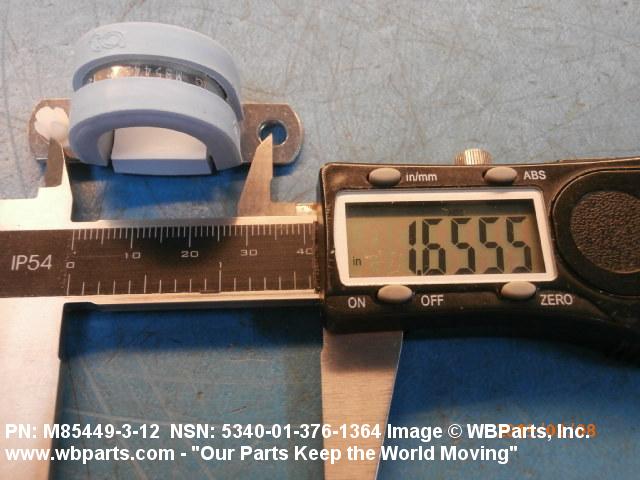

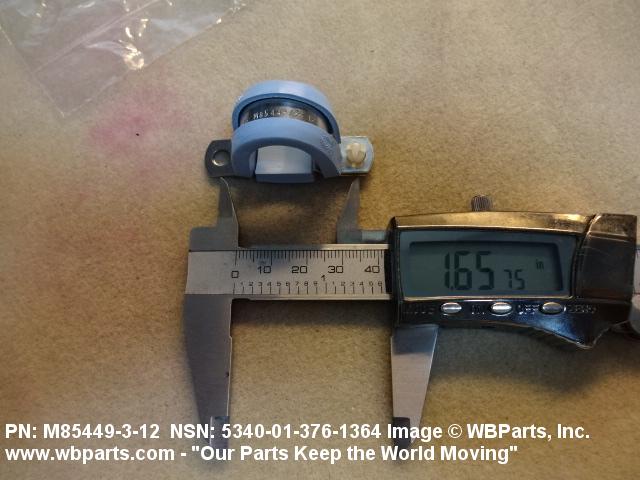

DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.650 INCHES NOMINAL

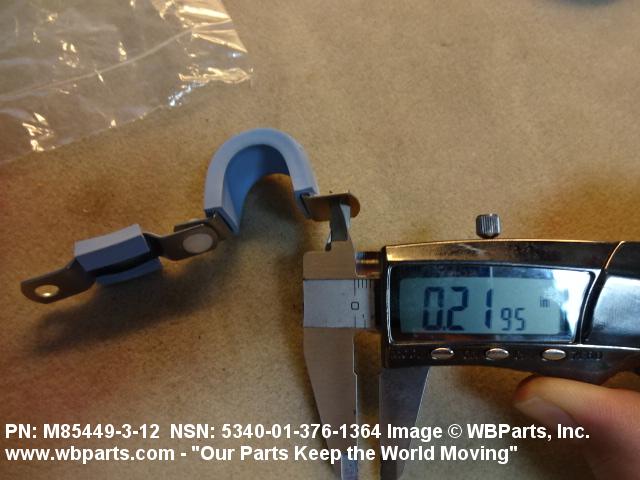

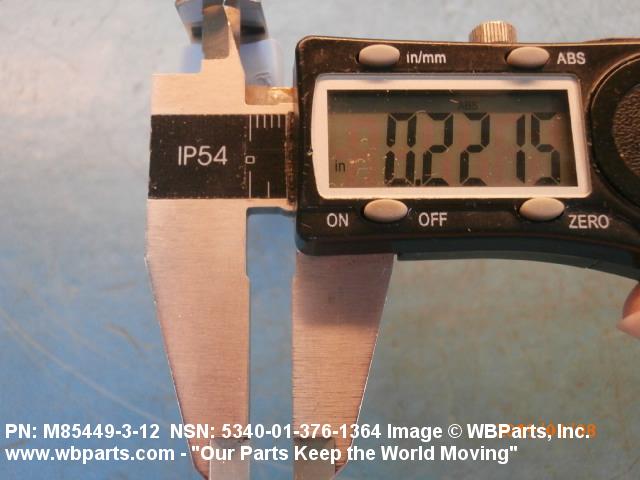

MOUNTING HOLE SIZE	0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM

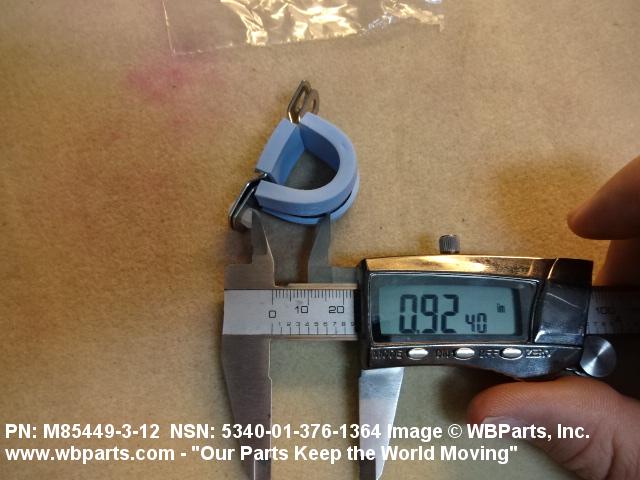

DISTANCE BETWEEN BASE AND INSIDE OF ARCH	0.930 INCHES NOMINAL
INSIDE DIAMETER/ARCH LENGTH	0.750 INCHES NOMINAL
CUSHION	INCLUDED
CUSHIONING MATERIAL	FABRIC REINFORCED SILICONE RUBBER
MOUNTING PAD	NOT INCLUDED
SPECIAL FEATURES	CUSHION COLOR BLUE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-85449/3-12
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M85449/3-12

Restrictions/Controls & Freight Information | NSN 5340-01-376-1364

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	N	The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Management | NSN 5340-01-376-1364

Air Force

Category	Code	Description
Materiel Management Aggregation Code	BA	TB:C-17 PROGRAM
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Budget Code	S	1557X3010:Aircraft Replenishment Spares
Source of Supply	F77	Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
