NSN 5340-01-371-5143 PTC1130288AL, PTC1130288A-L, 01-371-5143
Product Details | EXTENSION DRAWER SLIDE SECTION
5340-01-371-5143 An item specifically designed for use as a component of a SLIDE, DRAWER, EXTENSION. It may contain ball bearings, rollers, locking device(s), and mounting provisions.
Part Alternates: PTC1130288AL, PTC1130288A-L, 5340-01-371-5143, 01-371-5143, 5340013715143, 013715143
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 FEB 1993 | 01-371-5143 | 28415 ( SLIDE SECTION, DRAWER, EXTENSION ) |
Drawings & Photos | NSN 5340-01-371-5143
Cross Reference | NSN 5340-01-371-5143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PTC1130288A-L | 05236 | JONATHAN ENGINEERED SOLUTIONS CORP. DBA JONATHAN ENGINEERED SOLUTIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-371-5143
Technical Data | NSN 5340-01-371-5143
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OR ALUMINUM ALLOY 2014 SLIDE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/11 T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-200/2 T6 FED SPEC 2ND MATERIAL RESPONSE SLIDE |
| SURFACE TREATMENT | ANODIZE SLIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 2 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SLIDE |

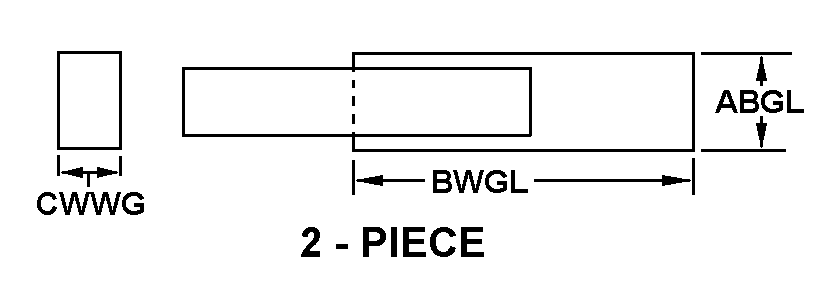

| STYLE DESIGNATOR | M2 2-PIECE |
| WIDTH | 4.000 INCHES NOMINAL |
| SECTION LENGTH | 23.190 INCHES NOMINAL |
| HEIGHT | 0.425 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
| MOUNTING METHOD | BRACKET |
| MOUNTING FACILITY QUANTITY | 1 |
| SIDE FOR WHICH DESIGNED | LEFT HAND |
Restrictions/Controls & Freight Information | NSN 5340-01-371-5143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
