NSN 5340-01-367-9146 NE1032100735, NE103210-0735, 9D00980735
Product Details | RETAINING BAND
5340-01-367-9146 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Part Alternates: NE1032100735, NE103210-0735, 9D00980735, 9D0098-0735, 5340-01-367-9146, 01-367-9146, 5340013679146, 013679146
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 NOV 1992 | 01-367-9146 | 20318 ( BAND, RETAINING ) |
Drawings & Photos | NSN 5340-01-367-9146
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-367-9146
Technical Data | NSN 5340-01-367-9146
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-5059, COMP 301, COND 1/4 HARD |
| BASIC SHAPE STYLE | K4 C |
| WIDTH | 0.7500 INCHES NOMINAL |
| THICKNESS | 0.0250 INCHES NOMINAL |

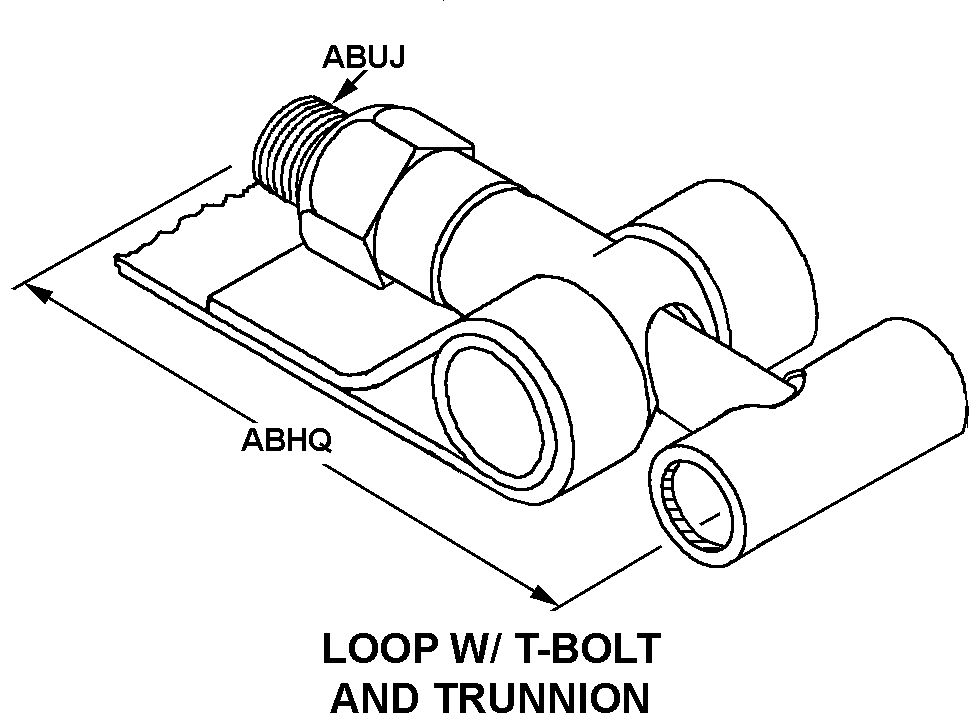

| END STYLE | L5 LOOP WITH T-BOLT AND TRUNNION |
| LENGTH | 3.0000 INCHES NOMINAL |
| THREAD SIZE | 0.2500-28 |
| SPECIAL FEATURES | THE BAND HAS A CUSHION POLYOLEFIN PER MIL-I-23053/5 |
Restrictions/Controls & Freight Information | NSN 5340-01-367-9146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE NOI IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-367-9146
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
