NSN 5340-01-363-8567 704AS4138, 01-363-8567, 013638567
Product Details | CRANK HANDLE
5340-01-363-8567 A metallic or nonmetallic item specifically designed to be attached to a ARM, HAND CRANK parallel to its axis for transmitting motion to a shaft or object.
Part Alternates: 704AS4138, 5340-01-363-8567, 01-363-8567, 5340013638567, 013638567
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 SEP 1992 | 01-363-8567 | 42077 ( HANDLE, CRANK ) |
Drawings & Photos | NSN 5340-01-363-8567
Cross Reference | NSN 5340-01-363-8567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 704AS4138 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-363-8567
Technical Data | NSN 5340-01-363-8567
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, MIL-S-6758, SAE 4130 ARM PLASTIC HANDLE |
| SURFACE TREATMENT AND LOCATION | ZINC ARM |

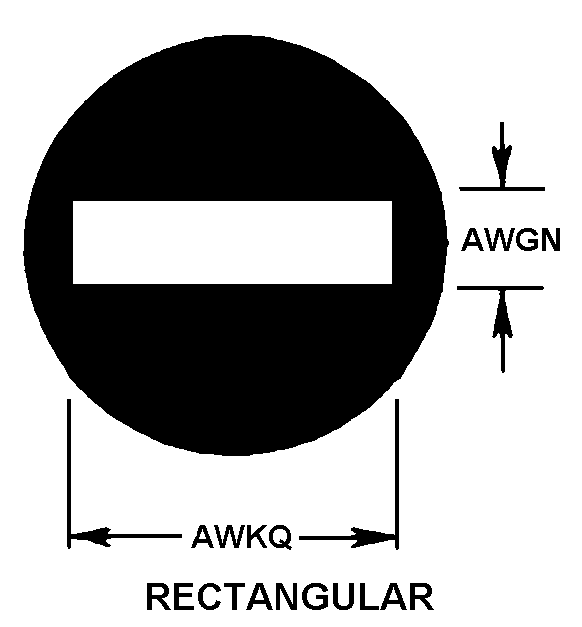

| DRIVE FACILITY STYLE | 124 RECTANGULAR |
| DRIVE WIDTH | 0.260 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| DRIVE LENGTH | 1.015 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | BOLT |
| HANDLE MOUNTING HOLE DIAMETER | 0.375 INCHES MINIMUM AND 0.382 INCHES MAXIMUM |
| HANDLE STYLE | 64 ROUND |
| HANDLE LENGTH | 4.090 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-01-363-8567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-363-8567
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
