NSN 5340-01-363-0394 9166580, 01-363-0394, 013630394
Product Details | MECHANICAL STOP
5340-01-363-0394 An item designed to restrict the movement of a rotary mechanism, linear mechanism or its components. It protects a mechanism from loss of adjustment or damage due to extreme movement. It may be wedge shaped with a threaded shank projecting from the apex or it may be round or rectangular in cross section, with mounting holes or slots, and is usually longer than its width. Excludes KEY, MACHINE, and BUMPER (as modified).20316150056Helicopter Rotor Blades, Drive Mechanisms and Components25100052Vehicular Cab, Body, and Frame Structural Components53400020Hardware, Commercial
Part Alternates: 9166580, 5340-01-363-0394, 01-363-0394, 5340013630394, 013630394
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 AUG 1992 | 01-363-0394 | 40270 ( STOP, MECHANICAL ) |

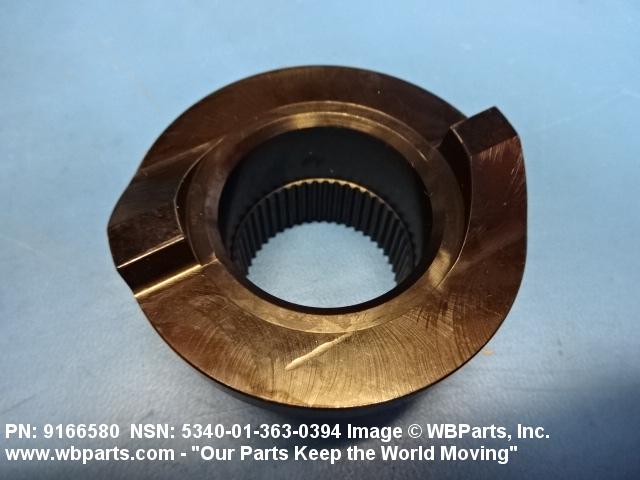

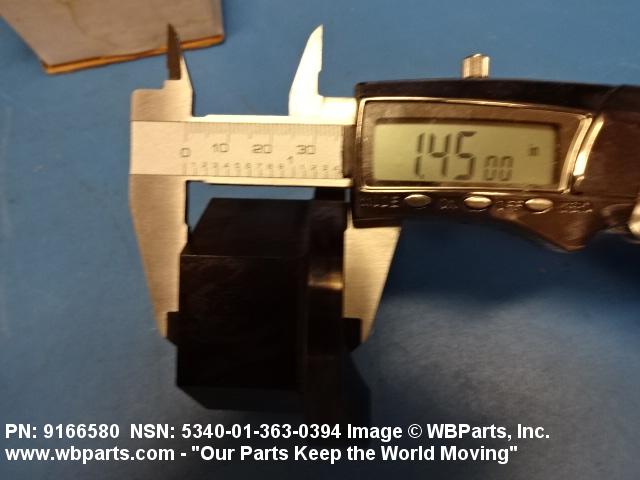

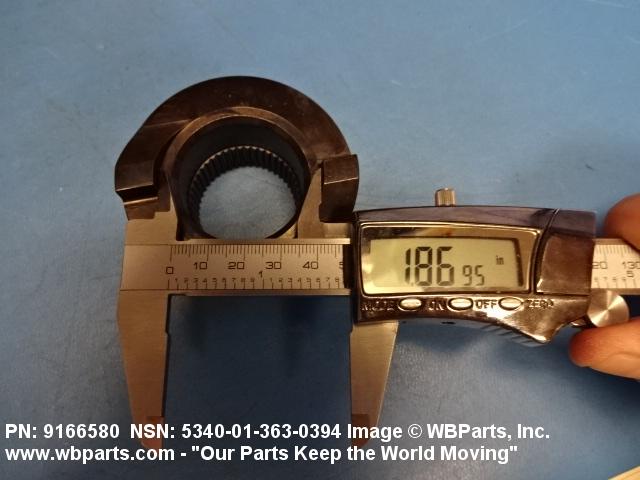

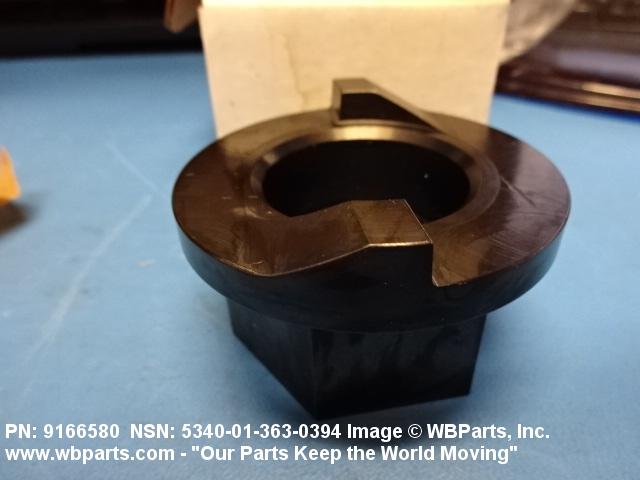

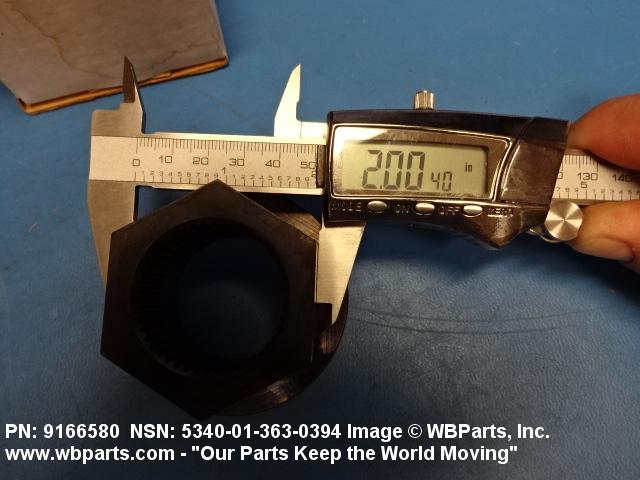

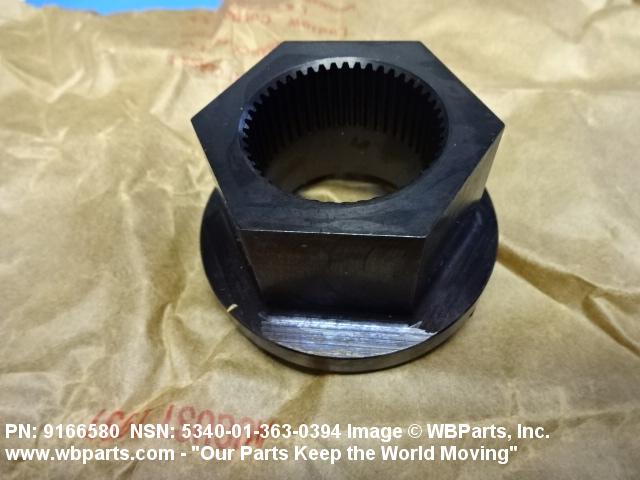

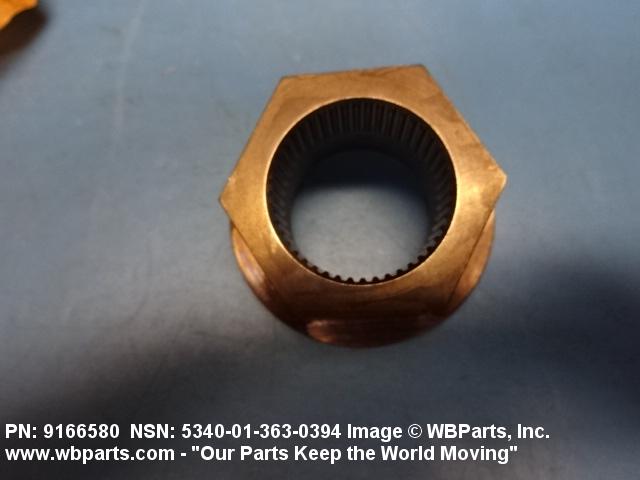

Drawings & Photos | NSN 5340-01-363-0394
Demand History | NSN 5340-01-363-0394
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-363-0394 | 2018-09-249 | 38 | DIBBS |
| 5340-01-363-0394 | 2018-07-183 | 100 | DIBBS |
| 5340-01-363-0394 | 2018-01-04 | 225 | DIBBS |
| 5340-01-363-0394 | 2017-08-220 | 225 | DIBBS |
| 5340-01-363-0394 | 2017-07-204 | 10 | DIBBS |
| 5340-01-363-0394 | 2017-07-202 | 30 | United States |
| 5340-01-363-0394 | 2017-06-166 | 30 | DIBBS |
| 5340-01-363-0394 | 2014-06-164 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-363-0394
Technical Data | NSN 5340-01-363-0394
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-6758 |
| DESIGN TYPE | FLANGE |

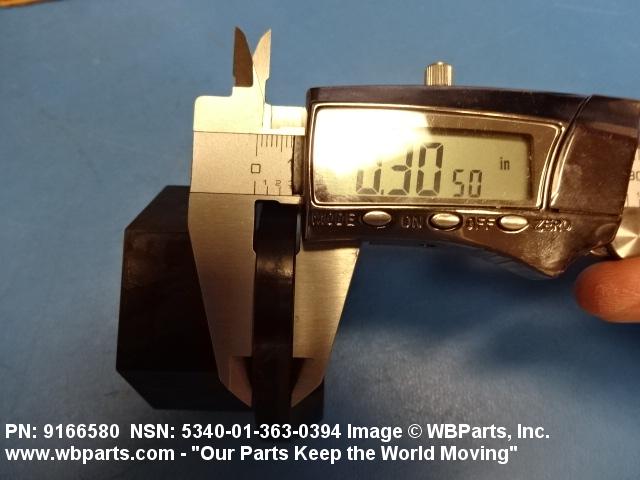

| FLANGE THICKNESS | 0.300 INCHES NOMINAL |
| OVERALL HEIGHT | 3.200 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM HAS AMERICAN STD INVOLUTE SPLINE PER A.S.A. 85.15 32/64 DIAMETERAL PITCH,1.4375 PITCH DIA(REF) 46 TEETH CLASS "8" P11 FLAT ROOT SIDE TOOTH BEARING |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 9166580 |
Restrictions/Controls & Freight Information | NSN 5340-01-363-0394
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-363-0394
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
