NSN 5340-01-354-1343 WP106280103, WP106280-103, 01-354-1343
Product Details | NONMETALLIC BUMPER
5340-01-354-1343 An item so designed that when attached to an object, protects that objec from damage by reducing the force of impact with another object. For external vehicular bumpers see BUMPER, VEHICULAR. Excludes GROMMET (as modified); BUSHING, NONMETALLIC; PAD, CUSHIONING and WASHER (as modified).
Part Alternates: WP106280103, WP106280-103, 5340-01-354-1343, 01-354-1343, 5340013541343, 013541343
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 FEB 1992 | 01-354-1343 | 67806 ( BUMPER ) |

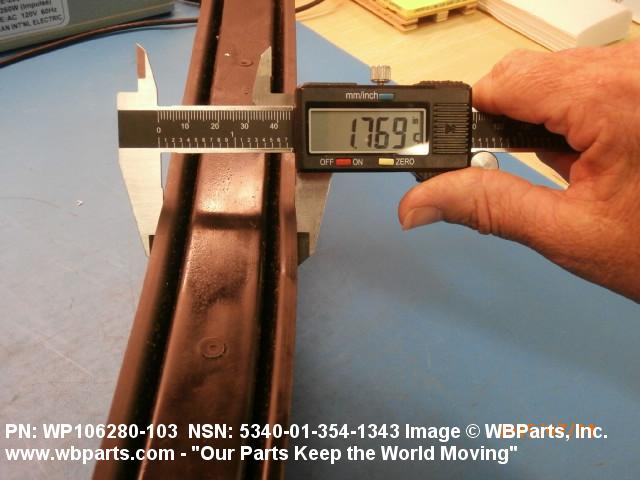

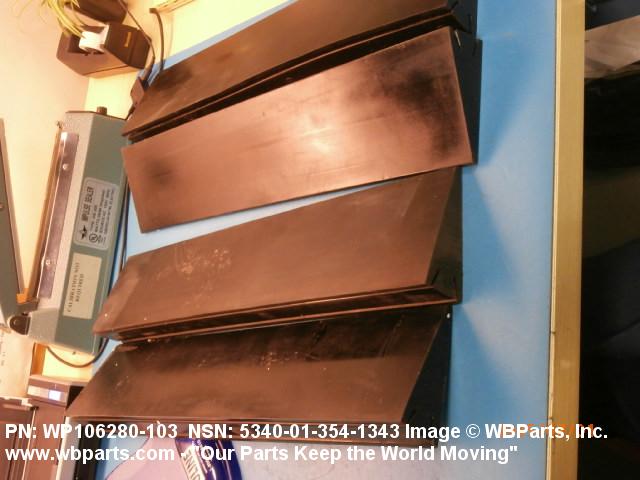

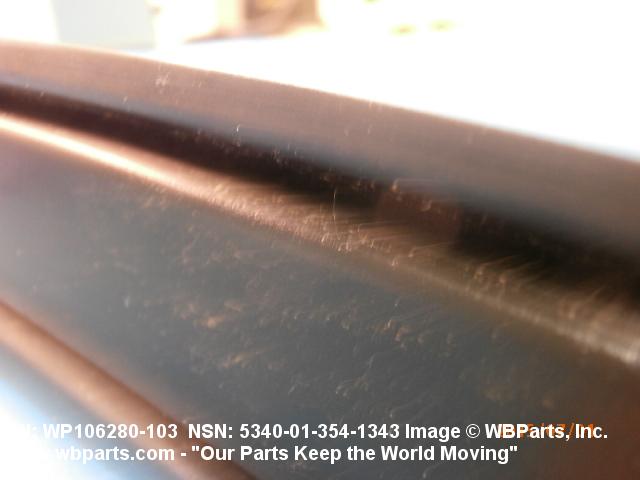

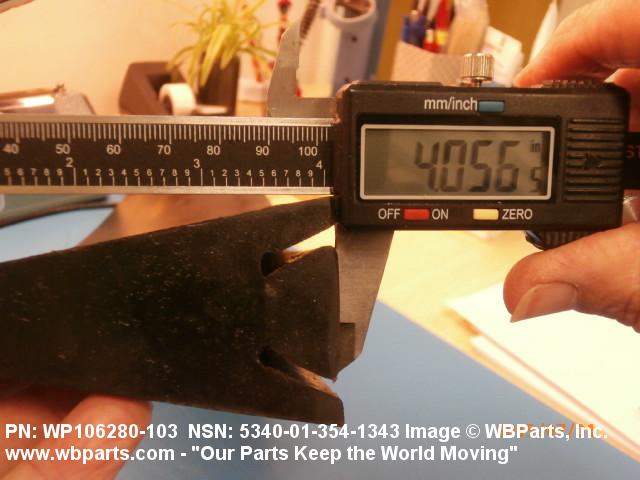

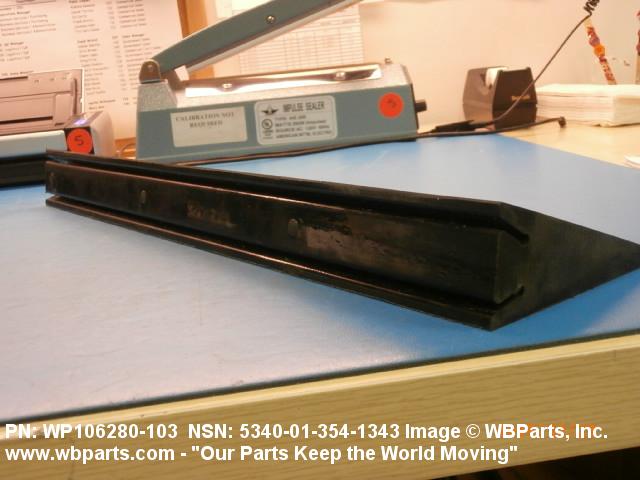

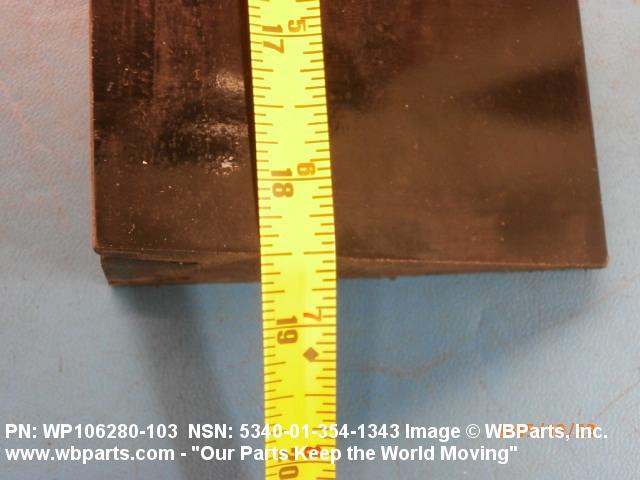

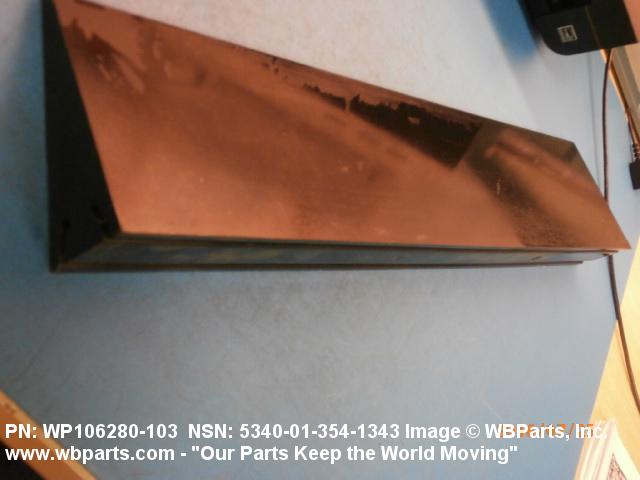

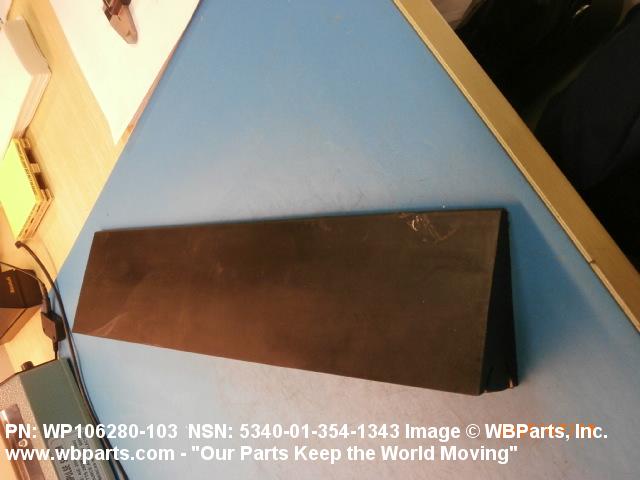

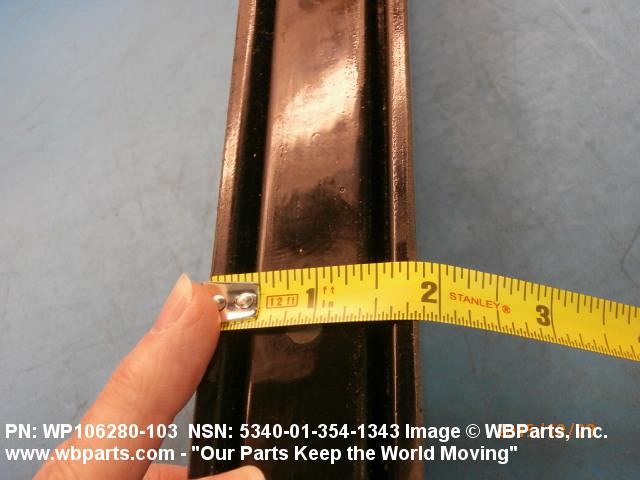

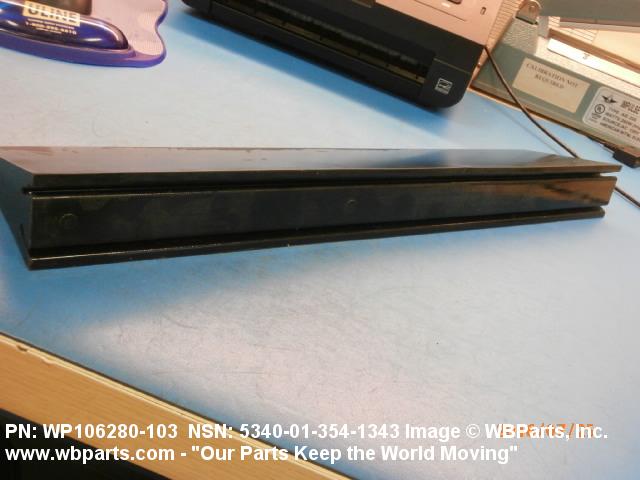

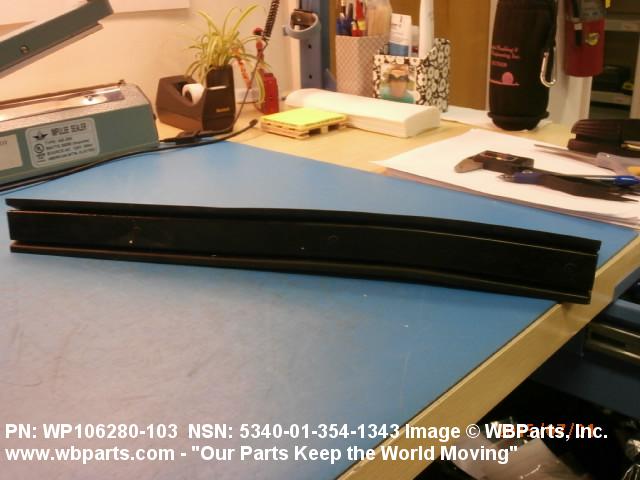

Drawings & Photos | NSN 5340-01-354-1343
Demand History | NSN 5340-01-354-1343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-354-1343 | 2024-05-130 | 2 | us |
| WP106280-103 | 2022-03-90 | 30 | DIBBS |
| WP106280-103 | 2020-10-281 | 41 | DIBBS |
| WP106280-103 | 2019-08-237 | 34 | DIBBS |
| WP106280103 | 2016-07-196 | 10 | United States |
| WP106280103 | 2015-12-345 | 4 | United States |
| WP106280103 | 2015-06-176 | 4 | United States |
| 5340-01-354-1343 | 2014-02-41 | 65 | DIBBS |
| 5340-01-354-1343 | 2012-05-144 | 110 | DIBBS |
| 5340-01-354-1343 | 2012-03-90 | 29 | DIBBS |
| 5340-01-354-1343 | 2011-10-297 | 0 | DIBBS |
| 5340-01-354-1343 | 2009-08-219 | 35 | DIBBS |
| 5340-01-354-1343 | 2009-05-135 | 31 | DIBBS |
| 5340-01-354-1343 | 2008-11-318 | 7 | DIBBS |
| 5340-01-354-1343 | 2008-10-281 | 5 | DIBBS |
| 5340-01-354-1343 | 2008-09-253 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-354-1343
Related Products | NSN 5340-01-354-1343
Technical Data | NSN 5340-01-354-1343
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, MIL-R-6855, CLASS 1 |

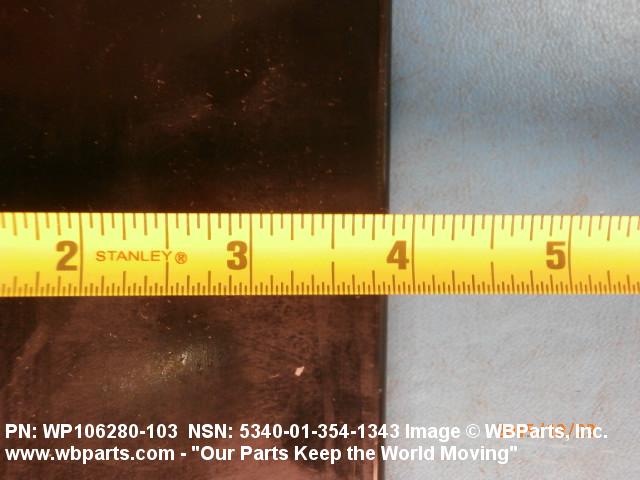

| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.800 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |

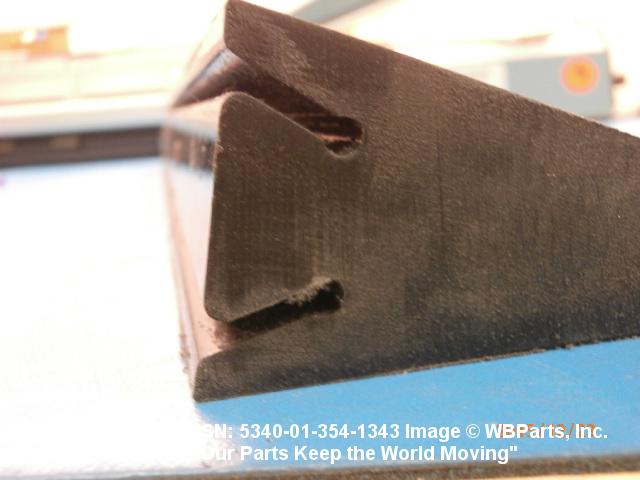

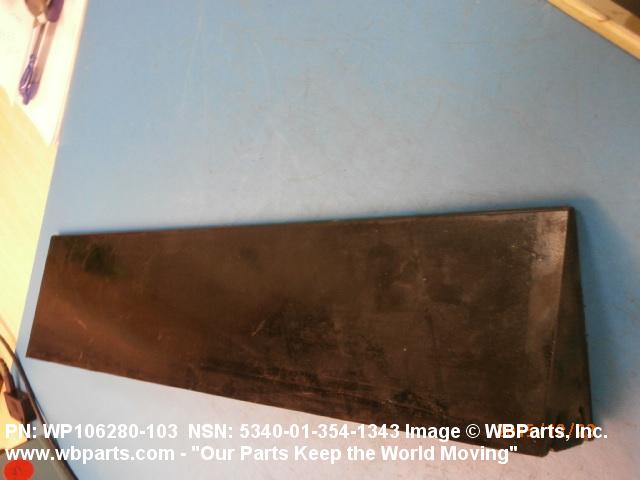

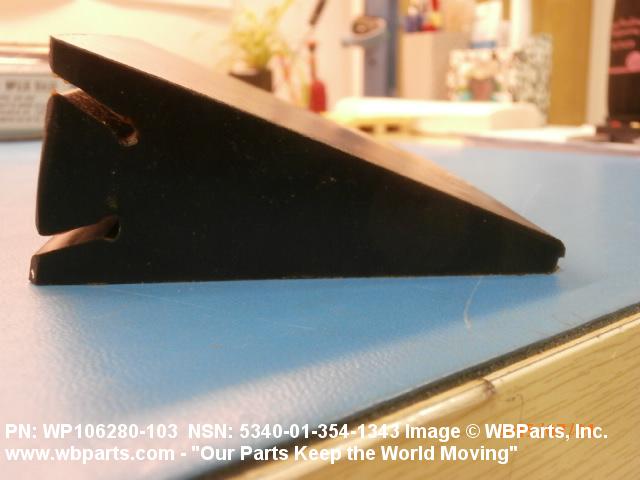

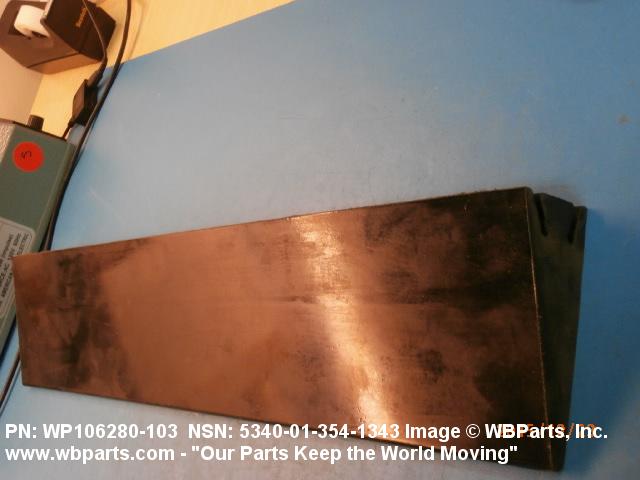

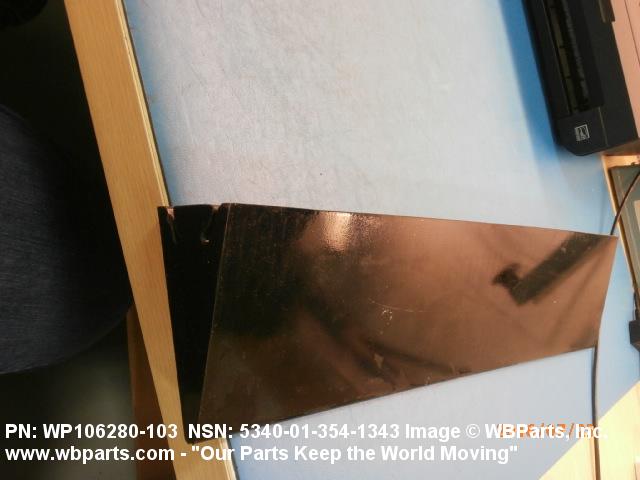

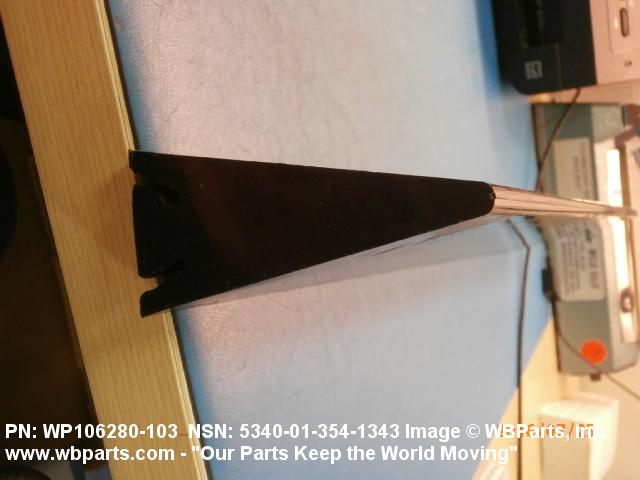

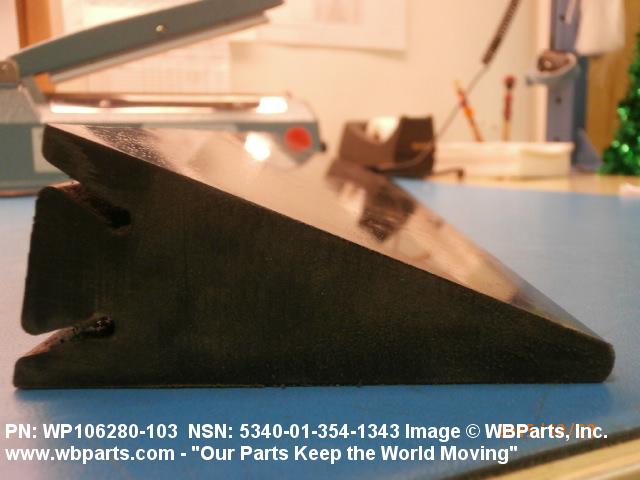

| SPECIAL FEATURES | ITEM'S SHAPE/APPEARANCE IS SIMILIAR TO AN ARROW THAT IS GROOVED AT WIDEST END(2PL),THIS END MATCHES WITH P/N WP106220-101(1680-01-221-0868); OPPOSITE END HAS 0.140 IN. RADIUS |
| III END ITEM IDENTIFICATION | MC130E |
| MANUFACTURERS CODE | 58060 |
| DESIGN CONTROL REFERENCE | WP106280-103 |
Restrictions/Controls & Freight Information | NSN 5340-01-354-1343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-354-1343
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LG | TG:C-130 HERCULES |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
