NSN 5340-01-353-7265 013537265
Product Details | HAND CRANK ARM
5340-01-353-7265 A radial arm designed to be used with a HANDLE, CRANK parallel to its axis for transmitting motion to a shaft or other object. For items with an integral handle, see CRANK, HAND.
Part Alternates: 013537265
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-353-7265 | 60065 ( ARM, HAND CRANK ) |
Drawings & Photos | NSN 5340-01-353-7265
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-353-7265
Related Products | NSN 5340-01-353-7265
Technical Data | NSN 5340-01-353-7265
| Characteristic | Specifications |
|---|---|

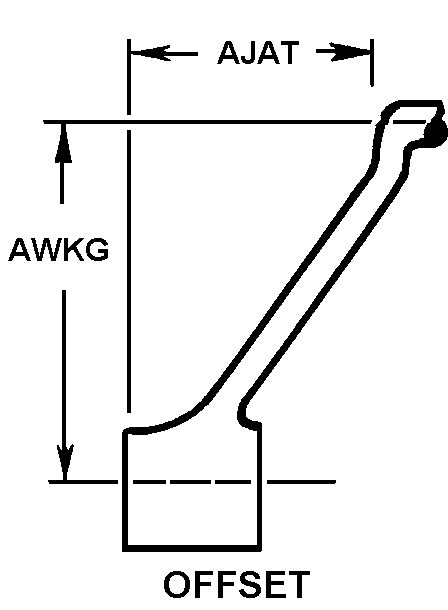

| ARM STYLE | 9 OFFSET |
| OFFSET HEIGHT | 9.980 INCHES MINIMUM AND 10.020 INCHES MAXIMUM |

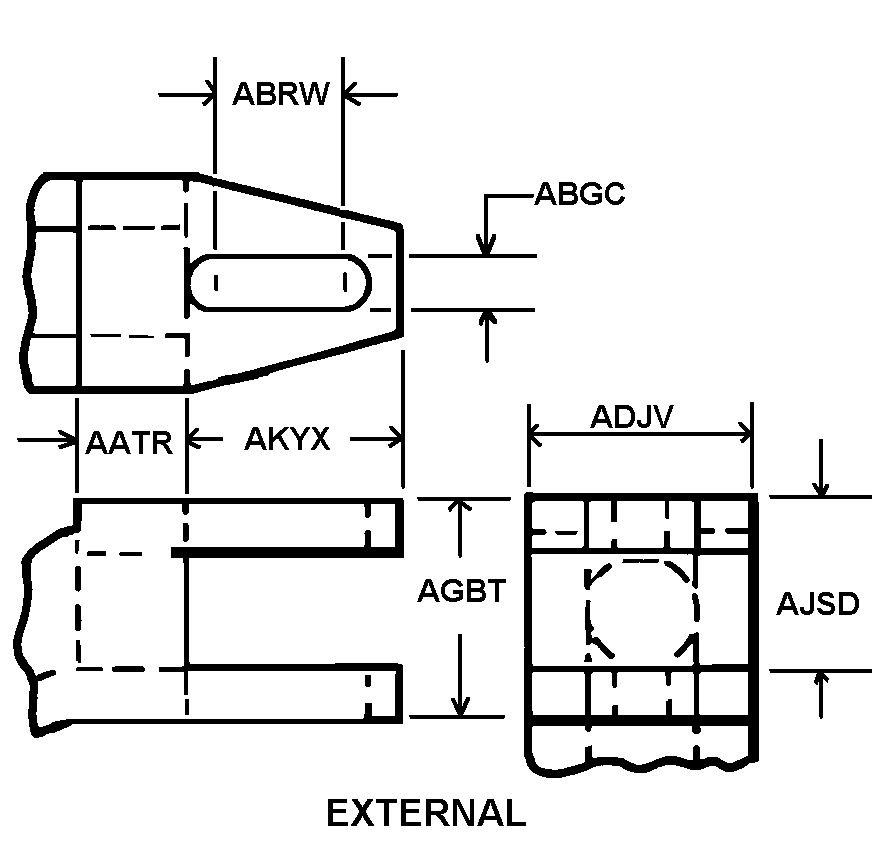

| DRIVE END STYLE | 101 EXTERNAL |
| MOUNTING FACILITY | UNTHREADED MOUNTING HOLES |
| SPECIAL FEATURES | 2 ADDITIONAL HOLES W/DIA 0.255 TO 0.265 IN. THRU W/5.000 IN. C TO C DIST BTWN HOLES ALONG LENGTH |
| III END ITEM IDENTIFICATION | PACER DAWN |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3661359-1 |
Restrictions/Controls & Freight Information | NSN 5340-01-353-7265
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
