NSN 5340-01-324-7554 NM1026190800, NM102619-0800, BACC10DU800AB
Product Details | LOOP CLAMP
5340-01-324-7554 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: NM1026190800, NM102619-0800, BACC10DU800AB, 5340-01-324-7554, 01-324-7554, 5340013247554, 013247554
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-324-7554 | 17532 ( CLAMP, LOOP ) |

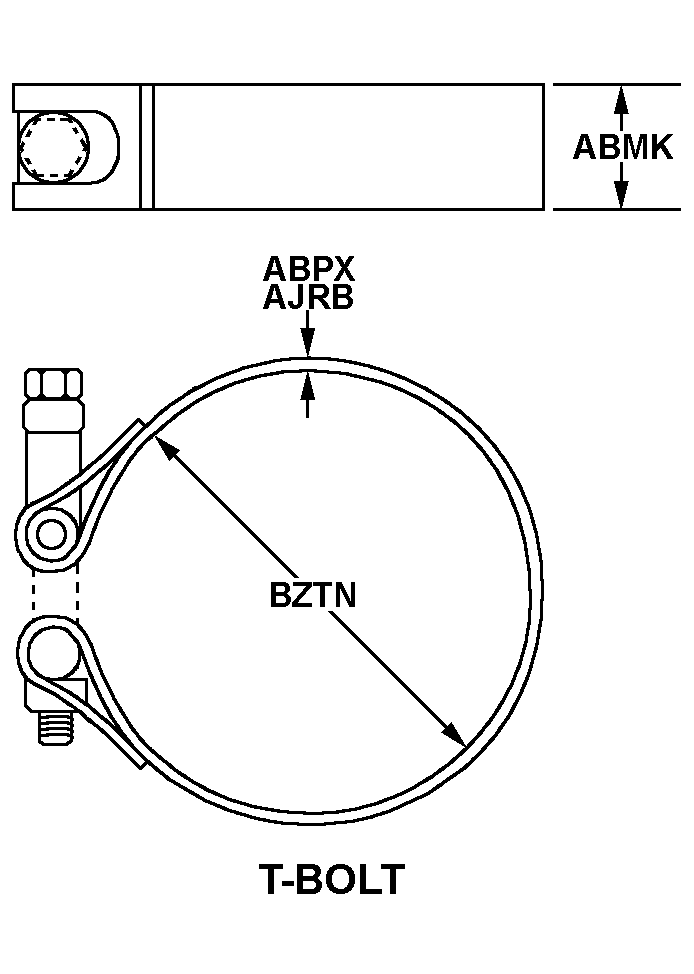

Drawings & Photos | NSN 5340-01-324-7554
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-324-7554
Technical Data | NSN 5340-01-324-7554
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BAND STEEL CORROSION RESISTING BOLT |
| MATERIAL DOCUMENT AND CLASSIFICATION | ARMCO 21-6-9 PER BMS 7-191 ASSN STD 1ST MATERIAL RESPONSE BAND AMS5732 ASSN STD 2ND MATERIAL RESPONSE BOLT |
| STYLE DESIGNATOR | A51 T-BOLT |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.044 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |
| MATERIAL DIAMETER | 8.000 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 8.636 INCHES NOMINAL |
| FASTENING DEVICE TYPE | T-BOLT |
| TEMP RATING | 700.0 DEG FAHRENHEIT |
| SPECIFICATION/STANDARD DATA | 81205-BACC10DU800AB PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-01-324-7554
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
