NSN 5340-01-324-4492 LS5911AHP20GG, 01-324-4492, 013244492
Product Details | WEBBING STRAP
5340-01-324-4492 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: LS5911AHP20GG, 5340-01-324-4492, 01-324-4492, 5340013244492, 013244492
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1990 | 01-324-4492 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-01-324-4492
Cross Reference | NSN 5340-01-324-4492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5911AHP20GG | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-324-4492
Technical Data | NSN 5340-01-324-4492
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-530, TYPE 2A, CLASS 3 |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 0.750 INCHES NOMINAL |
| COLOR | GRAY, FED STD 595, 36231 |
| END TYPE | FOLDED AND W/ATTACHMENT PLAIN |
| FOLD TYPE | TIGHT |
| ATTACHMENT METHOD FOR WHICH DESIGNED | GROMMET AND SEWED |
| END ATTACHMENT/FASTENING FACILITY | METALLIC GROMMET |
| GROMMET QUANTITY | 1 |
| GROMMET BARREL STYLE DESIGNATOR | F2 TAPERED ROUND TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | G1 FLANGE |

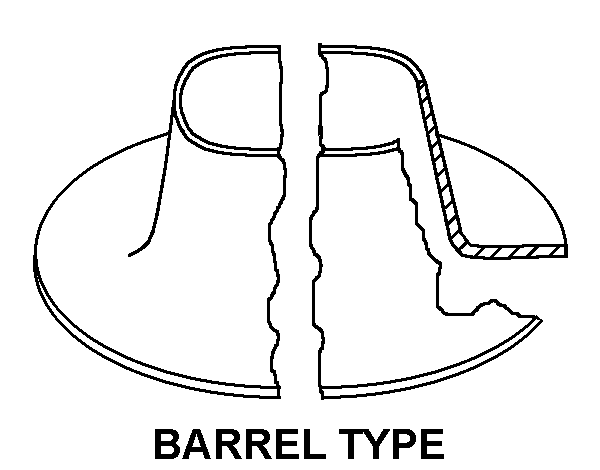

| GROMMET WASHER STYLE DESIGNATOR | H6 BARREL TYPE |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.310 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 98897-LS5911 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-01-324-4492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-324-4492
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
