NSN 5340-01-324-4259 LS53778T, LS5377-8T, 01-324-4259
Product Details | ANGLE BRACKET
5340-01-324-4259 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: LS53778T, LS5377-8T, 5340-01-324-4259, 01-324-4259, 5340013244259, 013244259
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1990 | 01-324-4259 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-324-4259
Demand History | NSN 5340-01-324-4259
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS5377-8T | 2023-08-236 | 91 | DIBBS |
| LS5377-8T | 2023-04-97 | 91 | DIBBS |
| LS5377-8T | 2023-02-43 | 91 | DIBBS |
| LS5377-8T | 2022-12-355 | 5 | DIBBS |
Cross Reference | NSN 5340-01-324-4259
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5377-8T | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-324-4259
Related Products | NSN 5340-01-324-4259
Technical Data | NSN 5340-01-324-4259
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4911 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE AND ZINC |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-8585 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.870 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |
| III SECOND LEG LENGTH | 1.090 INCHES MINIMUM AND 1.150 INCHES MAXIMUM |
| III FIRST LEG THICKNESS | 0.025 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.025 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG WIDTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| FIRST LEG CORNER RADIUS | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.227 INCHES MINIMUM AND 0.233 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.380 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |

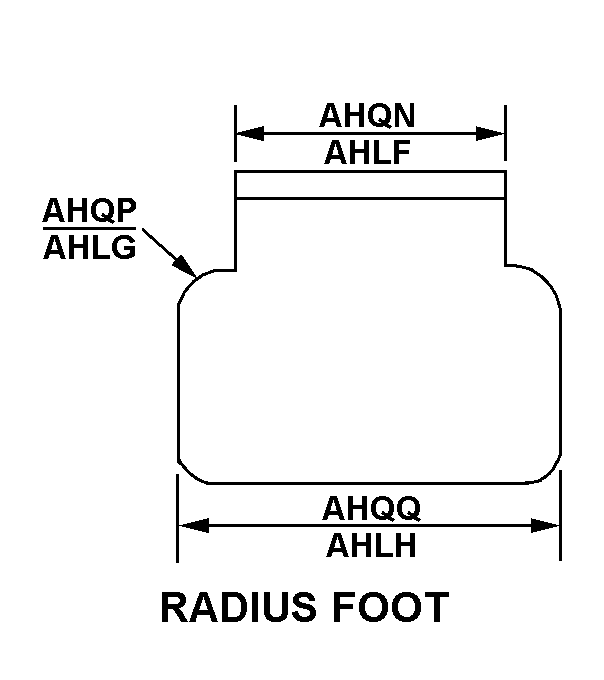

| SECOND LEG STYLE | 116 RADIUS FOOT |
| SECOND LEG WIDTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| SECOND LEG END WIDTH | 2.030 INCHES NOMINAL |

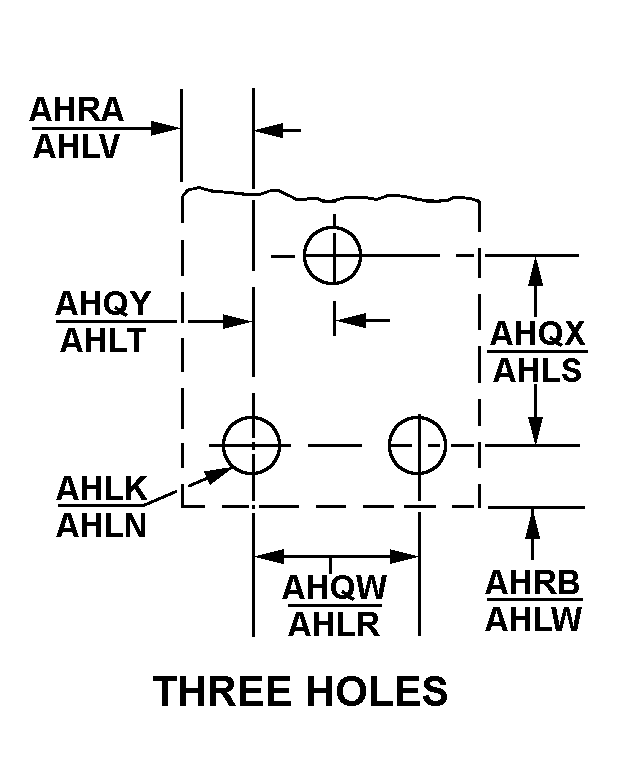

| SECOND LEG HOLE ARRANGEMENT STYLE | 140 THREE HOLES |
| SECOND LEG HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN LOWER HOLE CENTERS ALONG WIDTH | 1.390 INCHES MINIMUM AND 1.430 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.230 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 0.670 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | PLAIN |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS5377-8T |
Restrictions/Controls & Freight Information | NSN 5340-01-324-4259
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-324-4259
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
