NSN 5340-01-321-8649 MS9600048, MS9600-048, 01-321-8649
Product Details | ANGLE BRACKET

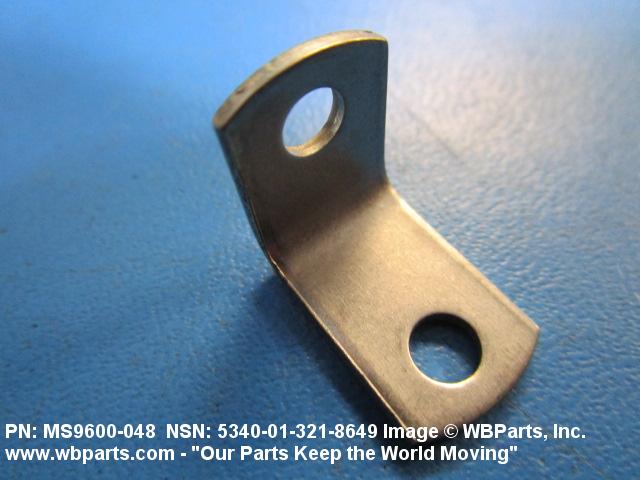

5340-01-321-8649 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: MS9600048, MS9600-048, 5340-01-321-8649, 01-321-8649, 5340013218649, 013218649
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUN 1990 | 01-321-8649 | 16900 ( BRACKET, ANGLE ) |

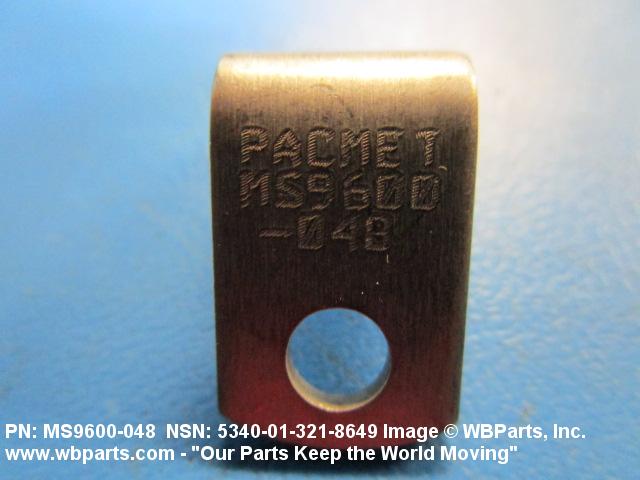

Drawings & Photos | NSN 5340-01-321-8649
Demand History | NSN 5340-01-321-8649
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-321-8649 | 2021-07-203 | 13 | United States |
| MS9600048 | 2010-12-341 | 2 | FR |
Cross Reference | NSN 5340-01-321-8649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9600-048 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-321-8649
Technical Data | NSN 5340-01-321-8649
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5504 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |

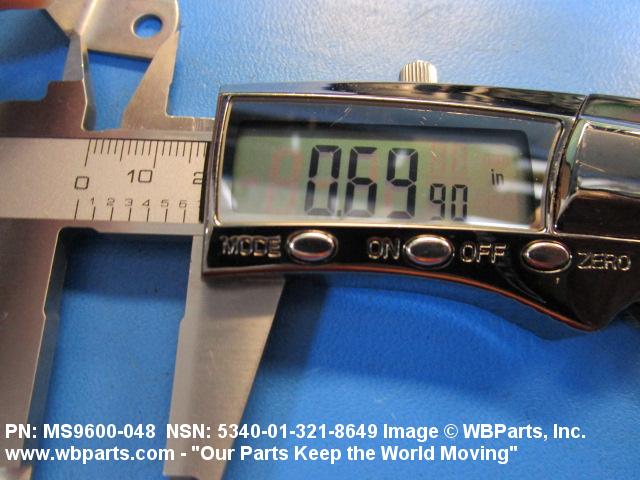

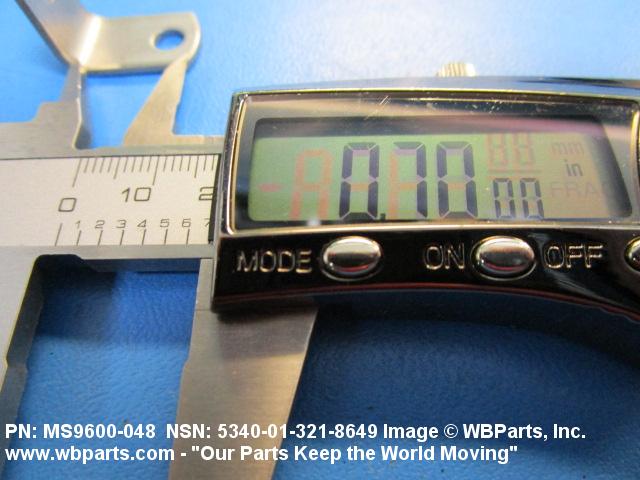

| III FIRST LEG LENGTH | 0.700 INCHES NOMINAL |

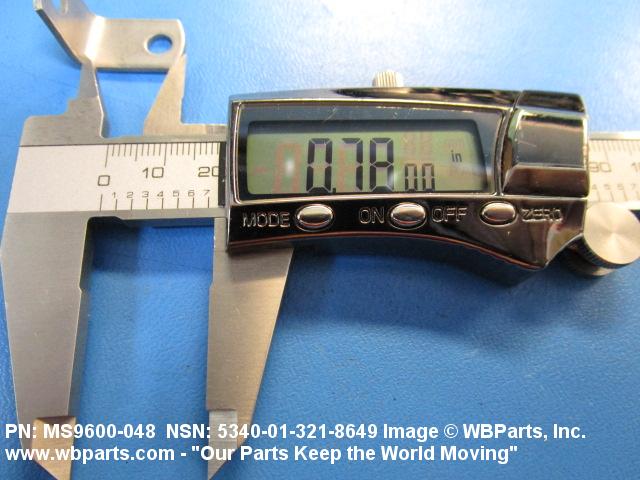

| III SECOND LEG LENGTH | 0.825 INCHES NOMINAL |

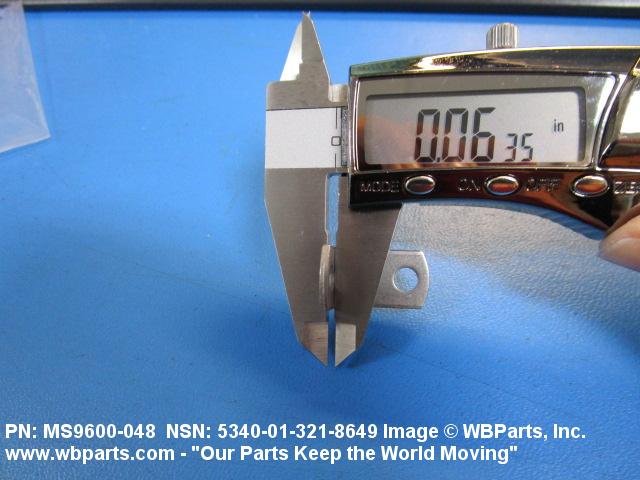

| III FIRST LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III SECOND LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 |

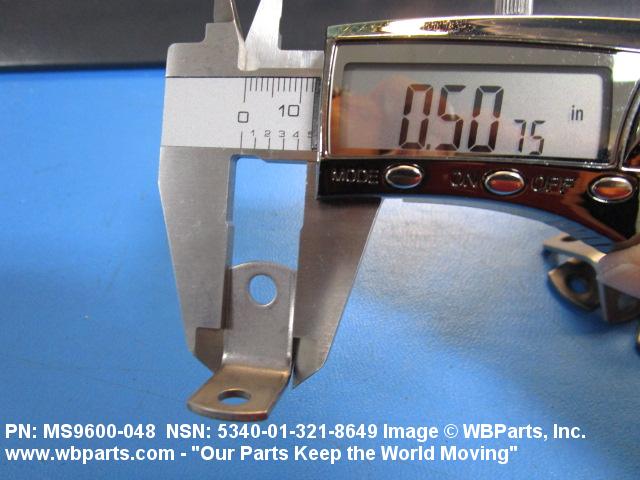

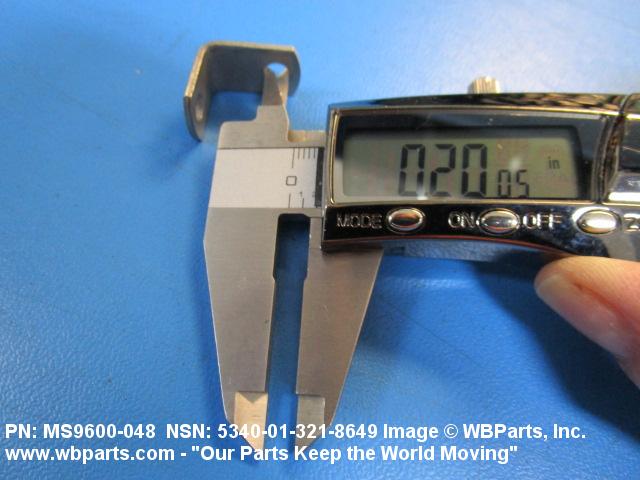

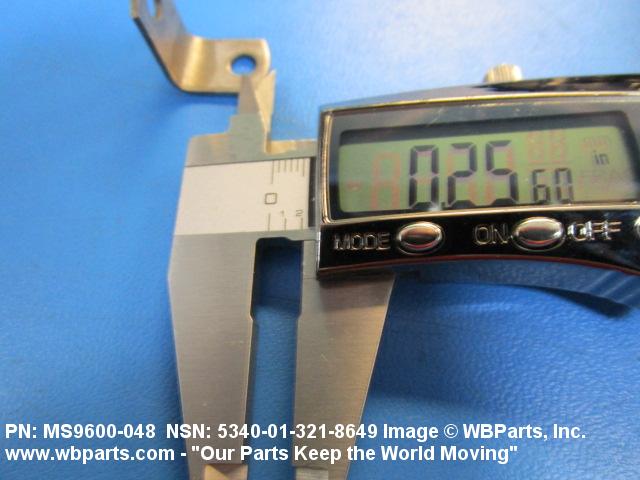

| FIRST LEG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG END RADIUS | 0.500 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 |
| FIRST LEG HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| MOUNTING HOLE TYPE | PLAIN |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9600-048 |
Restrictions/Controls & Freight Information | NSN 5340-01-321-8649
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
