NSN 5340-01-297-2616 5266345001, 5266345-001, 01-297-2616
Product Details | SECTION BLOCK CLAMP
5340-01-297-2616 A single piece of multipiece CLAMP, BLOCK. For items specifically designed to serve as a guide, see FAIRLEAD BLOCK and FAIRLEAD SECTION, BLOCK. Excludes BRACKET, PIPE.
Part Alternates: 5266345001, 5266345-001, 5340-01-297-2616, 01-297-2616, 5340012972616, 012972616
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1989 | 01-297-2616 | 39404 ( CLAMP, BLOCK, SECTION ) |
Drawings & Photos | NSN 5340-01-297-2616
Demand History | NSN 5340-01-297-2616
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-297-2616 | 2023-04-114 | 2 | DIBBS |
| 5340-01-297-2616 | 2022-08-214 | 1 | DIBBS |
| 5340-01-297-2616 | 2021-08-243 | 3 | DIBBS |
| 5340-01-297-2616 | 2019-06-158 | 4 | DIBBS |
| 5340-01-297-2616 | 2019-06-158 | 6 | DIBBS |
| 5340-01-297-2616 | 2019-05-149 | 4 | DIBBS |
| 5340-01-297-2616 | 2019-05-149 | 6 | DIBBS |
| 5340-01-297-2616 | 2012-04-114 | 30 | DIBBS |
| 5340-01-297-2616 | 2012-03-73 | 4 | US |
| 5340-01-297-2616 | 2012-03-73 | 4 | MANUAL |
Cross Reference | NSN 5340-01-297-2616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5266345-001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-297-2616
Related Products | NSN 5340-01-297-2616
Technical Data | NSN 5340-01-297-2616
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-18177 MIL SPEC SINGLE MATERIAL RESPONSE |

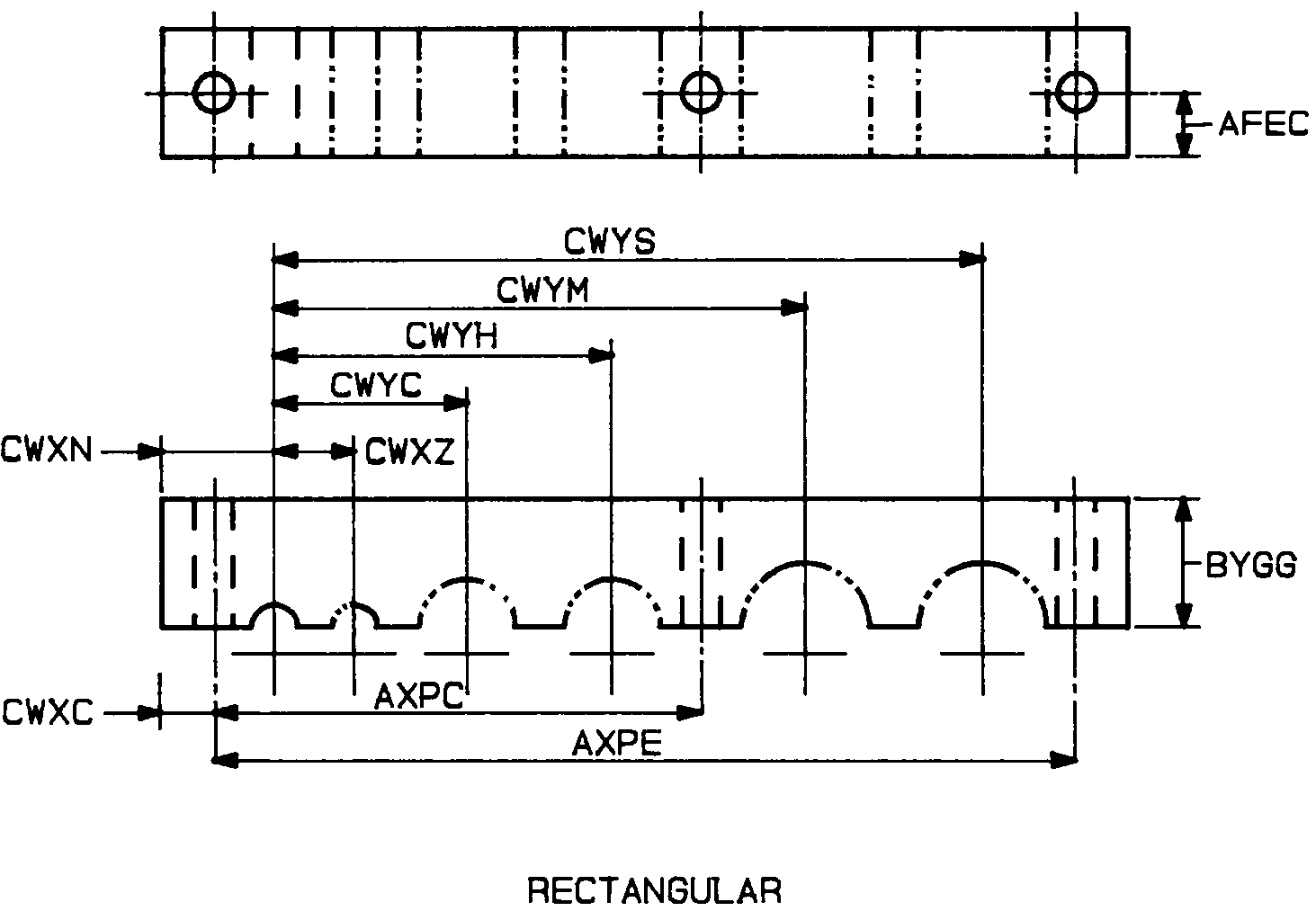

| STYLE DESIGNATOR | 280 RECTANGULAR |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE WIDTH | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 3.000 INCHES NOMINAL |
| BLOCK HEIGHT | 2.000 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST MOUNTING HOLE CENTER | 0.872 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST CLAMPING HOLE CENTER | 2.375 INCHES NOMINAL |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY | CLAMP |
| CLAMPING HOLE QUANTITY | 1 |
| CLAMPING HOLE DIAMETER | 3.780 INCHES MINIMUM AND 3.800 INCHES MAXIMUM ALL HOLES |
Restrictions/Controls & Freight Information | NSN 5340-01-297-2616
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 195190 | WASTE:MAGNESIUM CARBONATE SPENT |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-297-2616
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
