NSN 5340-01-292-3405 6358784001, 635-8784-001, 01-292-3405
Product Details | BRIDGE CLAMP
5340-01-292-3405 A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal.
Part Alternates: 6358784001, 635-8784-001, 5340-01-292-3405, 01-292-3405, 5340012923405, 012923405
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JAN 1989 | 01-292-3405 | 11206 ( CLAMP, BRIDGE ) |
Drawings & Photos | NSN 5340-01-292-3405
Cross Reference | NSN 5340-01-292-3405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 635-8784-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-292-3405
Technical Data | NSN 5340-01-292-3405
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OR COPPER ALLOY 268 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613,1/4 HARD FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | TIN OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B545 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

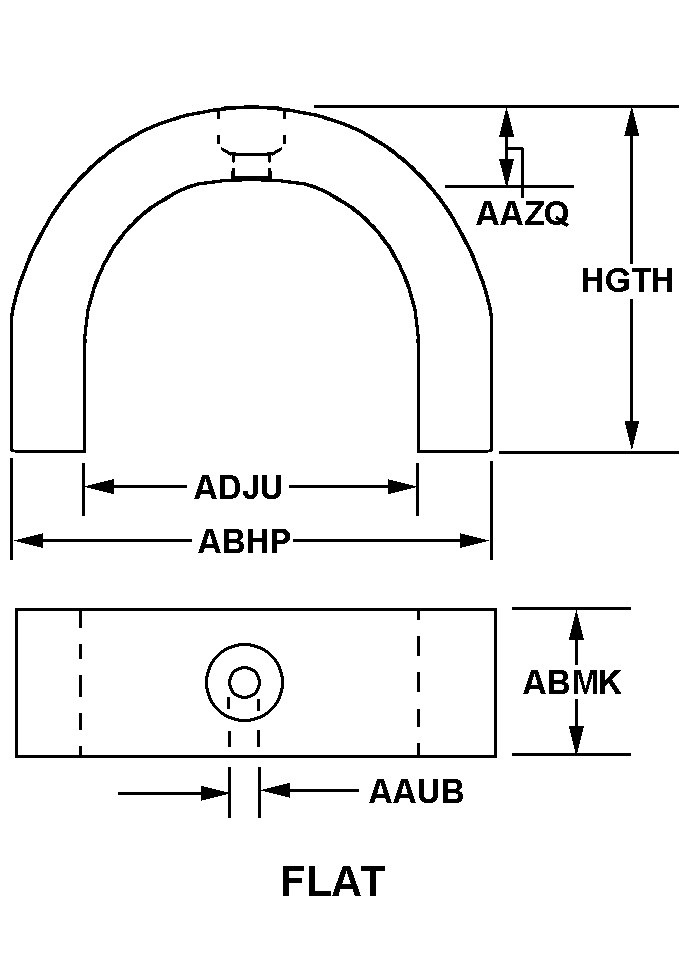

| STYLE DESIGNATOR | B13 FLAT |
| HOLE DEPTH | 0.028 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| OVERALL LENGTH | 0.204 INCHES NOMINAL |
| OVERALL WIDTH | 0.200 INCHES NOMINAL |
| INSIDE LENGTH | 0.140 INCHES NOMINAL |
| HEIGHT | 0.182 INCHES NOMINAL |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 635-8784-001 |
Restrictions/Controls & Freight Information | NSN 5340-01-292-3405
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
