NSN 5340-01-291-7280 ST40C1251900S, ST40C-125-1900-S, GC501NB1900
Product Details | RETAINING BAND
5340-01-291-7280 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Part Alternates: ST40C1251900S, ST40C-125-1900-S, GC501NB1900, GC501N-B1900, 24341251900, 2434-125-1900, 5340-01-291-7280, 01-291-7280, 5340012917280, 012917280
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1989 | 01-291-7280 | 20318 ( BAND, RETAINING ) |
Drawings & Photos | NSN 5340-01-291-7280
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-291-7280
Technical Data | NSN 5340-01-291-7280
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-5059, COMP 301, COND 1/2 HARD |

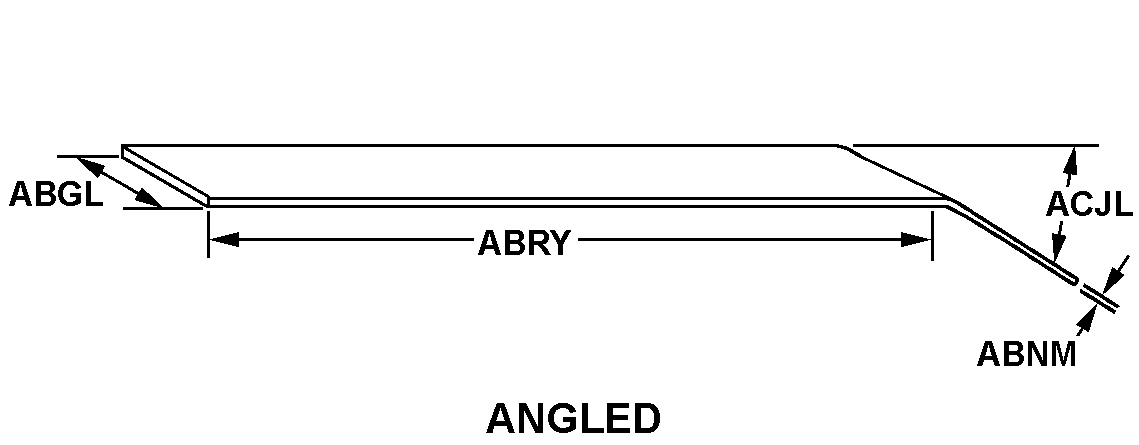

| BASIC SHAPE STYLE | K2 ANGLED |
| WIDTH | 1.250 INCHES NOMINAL |
| THICKNESS | 0.025 INCHES NOMINAL |
| LENGTH | 19.000 INCHES NOMINAL |
| END STYLE | L3 EXTENDED TONGUE W/T-BOLT L7 SOLID LOOP |
| LENGTH | 2.500 INCHES NOMINAL |
| THREAD SIZE | 0.250-25 |
| LOOP RADIUS | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-291-7280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104180 | BAND/HOOP I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-291-7280
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
