NSN 5340-01-282-7624 10113097 , 74A1807212004, 74A180721-2004
Product Details | MOUNTING BRACKET
5340-01-282-7624 A bracket of various shapes (other than angle), designed to be attached to a supporting surface for the specific purpose of positioning, aligning and/or supporting another item. Excludes BRACE (as modified); BRACKET, ANGLE; and BRACKET, DOUBLE ANGLE. See also BRACKET (1), ELECTRICAL CONNECTOR; BRACKET, FIRE EXTINGUISHER; BRACKET, SOLENOID; BRACKET, TRACK, SLIDING DOOR; and RETAINER (as modified).20510050018Guns, through 30mm10100026Guns, over 30mm up to 75mm1420000053400020Hardware, Commercial
Part Alternates: 10113097 , 74A1807212004, 74A180721-2004, 5340-01-282-7624, 01-282-7624, 5340012827624, 012827624
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1988 | 01-282-7624 | 38089 ( BRACKET, MOUNTING ) |
Demand History | NSN 5340-01-282-7624
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74A1807212004 | 2024-10-303 | 3 | us |
| 5340-01-282-7624 | 2024-09-257 | 8 | Malaysia |
| 74A1807212004 | 2024-09-247 | 3 | us |
| 5340-01-282-7624 | 2018-06-156 | 24 | DIBBS |
| 5340-01-282-7624 | 2017-11-334 | 52 | DIBBS |
| 5340-01-282-7624 | 2017-10-289 | 130 | DIBBS |
| 5340-01-282-7624 | 2017-09-258 | 24 | DIBBS |
| 5340-01-282-7624 | 2017-09-248 | 52 | DIBBS |
| 5340-01-282-7624 | 2017-07-197 | 24 | DIBBS |
| 5340-01-282-7624 | 2017-03-89 | 49 | DIBBS |
| 5340-01-282-7624 | 2015-07-210 | 85 | DIBBS |
| 5340-01-282-7624 | 2009-05-147 | 130 | DIBBS |
Cross Reference | NSN 5340-01-282-7624
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A180721-2004 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-282-7624
Technical Data | NSN 5340-01-282-7624
| Characteristic | Specifications |
|---|---|

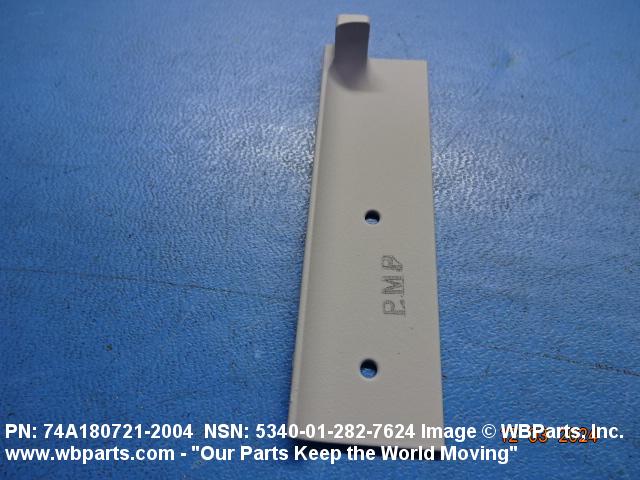

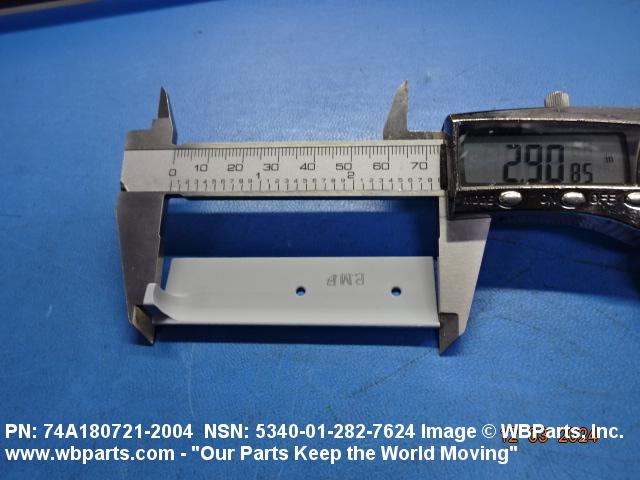

| SPECIAL FEATURES | 2.900 IN. LG; 0.830 IN W; 0.490 IN. H; ONE END CURVED 0.281 IN. R; TWO MTG HOLES 0.191 IN. MIN 0.197 IN. MAX DIA SPACED 1.000 IN. APART; HOLES CSK FOR ST3M454 SCREW,MCDONNELL AIRCRAFT |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A180721-2004 |
Restrictions/Controls & Freight Information | NSN 5340-01-282-7624
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-282-7624
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
