Product Details | ANGLE BRACKET
5340-01-280-5137 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 68A5808392001, 68A580839-2001, 68A5808392009, 68A580839-2009, 5340-01-280-5137, 01-280-5137, 5340012805137, 012805137
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUN 1988 | 01-280-5137 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-280-5137
Demand History | NSN 5340-01-280-5137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-280-5137 | 2013-05-128 | 77 | DIBBS |
| 5340-01-280-5137 | 2013-03-84 | 16 | DIBBS |
| 5340-01-280-5137 | 2013-02-58 | 16 | DIBBS |
| 5340-01-280-5137 | 2008-03-70 | 113 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-280-5137
Related Products | NSN 5340-01-280-5137
Technical Data | NSN 5340-01-280-5137
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 COND T3 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |

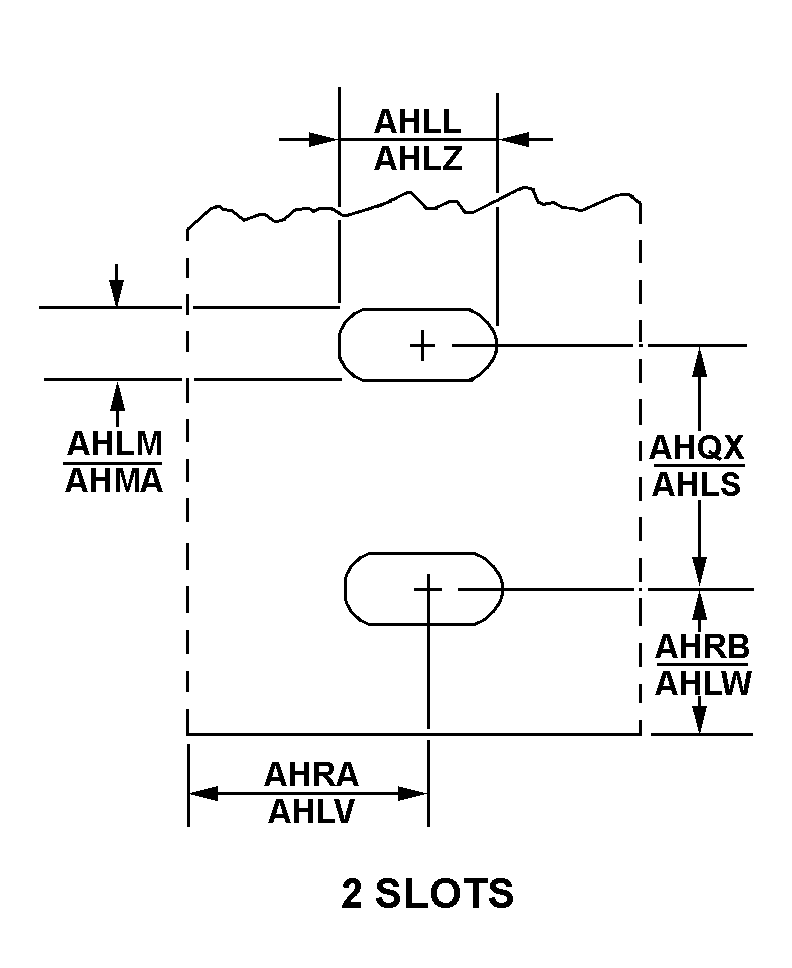

| FIRST LEG HOLE ARRANGEMENT STYLE | 206 2 SLOTS |
| FIRST LEG SLOT LENGTH | 0.437 INCHES NOMINAL |
| FIRST LEG SLOT WIDTH | 0.195 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | 208 2 SLOTS |
| SECOND LEG SLOT LENGTH | 0.437 INCHES NOMINAL |
| SECOND LEG SLOT WIDTH | 0.195 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | F-15 |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68A580839-2009 |
Restrictions/Controls & Freight Information | NSN 5340-01-280-5137
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
