NSN 5340-01-267-2315 176842-501, 01-267-2315, 176842501
Product Details | DUST AND MOISTURE SEAL BOOT
5340-01-267-2315 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 176842-501, 5340-01-267-2315, 01-267-2315, 5340012672315, 176842501, 012672315
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 NOV 1987 | 01-267-2315 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5340-01-267-2315
Cross Reference | NSN 5340-01-267-2315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 176842-501 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-267-2315
Technical Data | NSN 5340-01-267-2315
| Characteristic | Specifications |
|---|---|

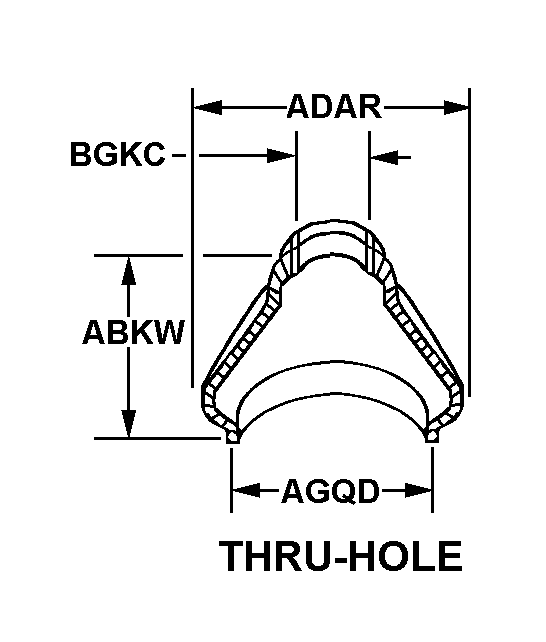

| STYLE DESIGNATOR | A10 THRU-HOLE |
| BASE OUTSIDE DIAMETER | 46.760 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.880 INCHES NOMINAL |
| MATERIAL | LEATHER BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | KK-L-201F FED STD ALL MATERIAL RESPONSES BODY |
| SPECIAL FEATURES | T-33 AIRCRAFT,AROUND JOYSTICK |
| III FSC APPLICATION DATA | AIRCRAFT ACCESSORY EQUIPMENT |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 176842-501 |
Restrictions/Controls & Freight Information | NSN 5340-01-267-2315
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI SUB2 |
| Less than car load rating | D | 200 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
