NSN 5340-01-267-1542 70209-74024-101, 01-267-1542, 7020974024101
Product Details | MENDING PLATE
5340-01-267-1542 A flat, rectangular shaped item, with holes, used to join or attach two surfaces in the same plane by means of screws, bolts, and the like.
Part Alternates: 70209-74024-101, 5340-01-267-1542, 01-267-1542, 5340012671542, 7020974024101, 012671542
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 NOV 1987 | 01-267-1542 | 09726 ( PLATE, MENDING ) |
Drawings & Photos | NSN 5340-01-267-1542
Demand History | NSN 5340-01-267-1542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-267-1542 | 2015-09-259 | 4 | DIBBS |
Cross Reference | NSN 5340-01-267-1542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70209-74024-101 | 78289 | AEROTECH ENTERPRISES DBA K AND F MFG CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-267-1542
Related Products | NSN 5340-01-267-1542
Technical Data | NSN 5340-01-267-1542
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

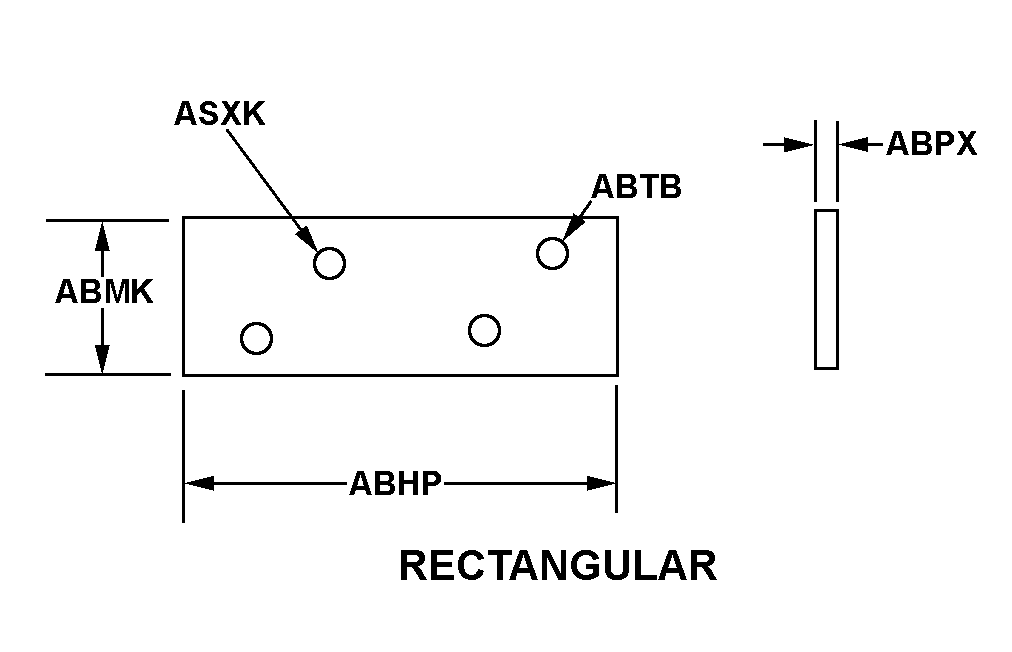

| STYLE DESIGNATOR | 82 RECTANGULAR |
| III OVERALL LENGTH | 1.760 INCHES NOMINAL |
| III OVERALL WIDTH | 2.140 INCHES NOMINAL |
| III MATERIAL THICKNESS | 2.000 INCHES NOMINAL |
| III HOLE QUANTITY | 4 |
| III FSC APPLICATION DATA | STATIC GROUND PIN,REFUELING PROBE |
| MANUFACTURERS CODE | 78289 |
| DESIGN CONTROL REFERENCE | 70209-74024-101 |
Restrictions/Controls & Freight Information | NSN 5340-01-267-1542
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | K | 92.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-267-1542
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
