NSN 5340-01-243-7324 SMB803752, SM-B-803752, 01-243-7324
Product Details | CORNER BRACE
5340-01-243-7324 An item of rigid flat material usually shaped to a 90 degree angle (1.5705 radians), designed to be mounted on a single plane. For items designed to be mounted on more than one plane, see BRACKET, ANGLE.
Part Alternates: SMB803752, SM-B-803752, 5340-01-243-7324, 01-243-7324, 5340012437324, 012437324
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 OCT 1986 | 01-243-7324 | 06606 ( BRACE, CORNER ) |
Drawings & Photos | NSN 5340-01-243-7324
Demand History | NSN 5340-01-243-7324
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-243-7324 | 2017-02-32 | 100 | DIBBS |
Cross Reference | NSN 5340-01-243-7324
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-B-803752 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-243-7324
Related Products | NSN 5340-01-243-7324
Technical Data | NSN 5340-01-243-7324
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC EPOXY AND GLASS |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-509,GR G 190 FED SPEC ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | 2 TRIANGLE |
| MATERIAL THICKNESS | 0.093 INCHES NOMINAL |
| FIRST LEG LENGTH | 0.940 INCHES NOMINAL |
| SECOND LEG LENGTH | 0.930 INCHES NOMINAL |

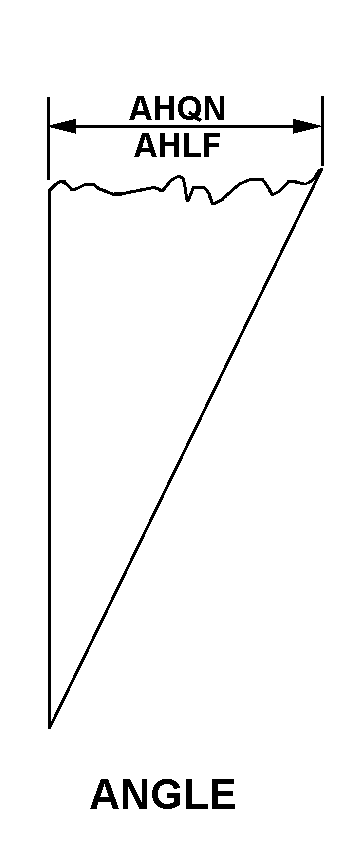

| ANGLE | 0.16 RADIANS NOMINAL |
| FIRST LEG STYLE | 110 ANGLE |
| FIRST LEG WIDTH | 0.940 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 140 THREE HOLES |
| FIRST LEG HOLE DIAMETER | 0.160 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN LOWER HOLE CENTERS ALONG WIDTH | 0.625 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.612 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.159 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | ROUNDED CORNERS |
Restrictions/Controls & Freight Information | NSN 5340-01-243-7324
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
