NSN 5340-01-239-9553 9974M42G02, 01-239-9553, 012399553
Product Details | ANGLE BRACKET
5340-01-239-9553 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 9974M42G02, 5340-01-239-9553, 01-239-9553, 5340012399553, 012399553
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1986 | 01-239-9553 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-239-9553
Demand History | NSN 5340-01-239-9553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-239-9553 | 2010-03-75 | 33 | DIBBS |
| 5340-01-239-9553 | 2009-08-216 | 7 | DIBBS |
| 5340-01-239-9553 | 2009-07-205 | 10 | DIBBS |
| 5340-01-239-9553 | 2009-06-162 | 17 | DIBBS |
Cross Reference | NSN 5340-01-239-9553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9974M42G02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-239-9553
Related Products | NSN 5340-01-239-9553
Technical Data | NSN 5340-01-239-9553
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5599 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG THICKNESS | 0.060 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.060 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |

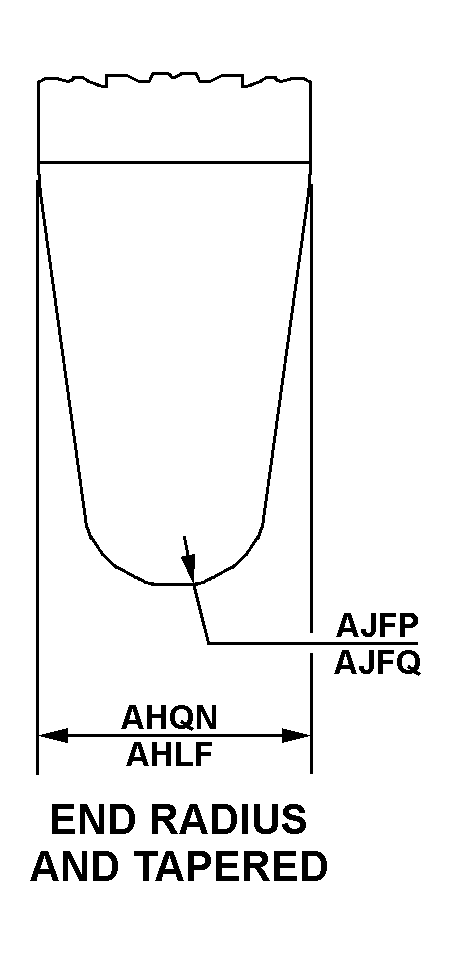

| FIRST LEG STYLE | 108 END RADIUS AND TAPERED |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | 131 NO HOLE |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | SECOND LEG INCL RETAINING CLIP RIVETED TO EXTERIOR SURFACE |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 9974M42G02 |
Restrictions/Controls & Freight Information | NSN 5340-01-239-9553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139780 | NICKEL ARTICLES NOI |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
