NSN 5340-01-234-6691 70308-03605-041, 01-234-6691, 7030803605041
Product Details | DOUBLE ANGLE BRACKET

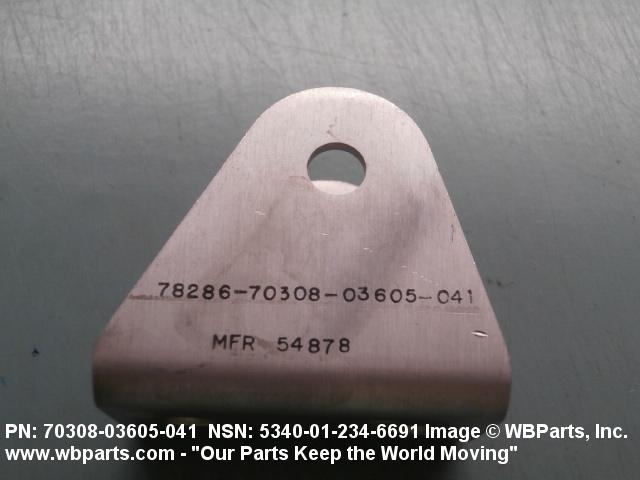

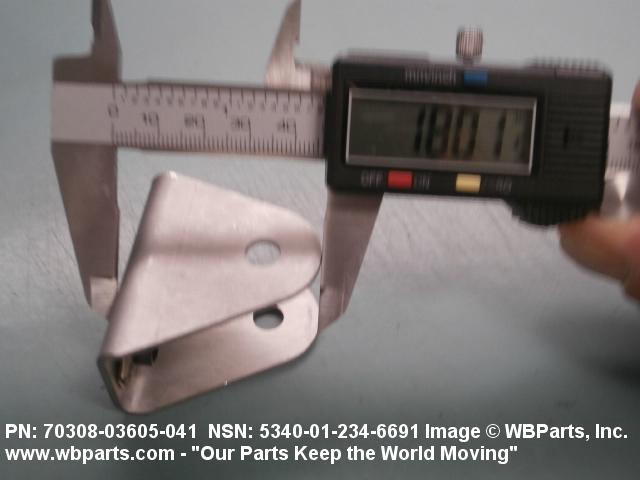

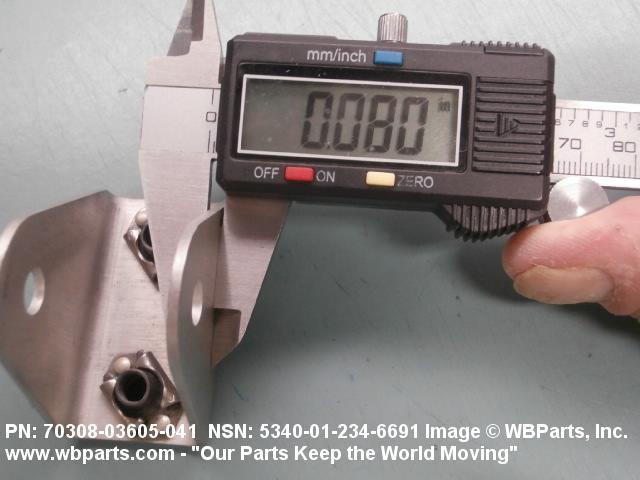

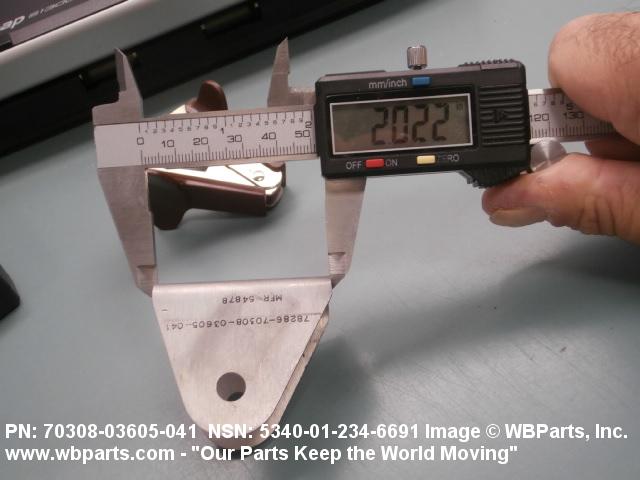

5340-01-234-6691 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 70308-03605-041, 5340-01-234-6691, 01-234-6691, 5340012346691, 7030803605041, 012346691
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUN 1986 | 01-234-6691 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-234-6691
Demand History | NSN 5340-01-234-6691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-234-6691 | 2020-12-339 | 45 | DIBBS |
| 5340-01-234-6691 | 2020-11-331 | 45 | DIBBS |
| 5340-01-234-6691 | 2020-05-128 | 1 | us |
| 7030-80-360-5041 | 2014-04-113 | 2 | United States |
| 7030-80-360-5041 | 2014-03-64 | 12 | United States |
| 5340-01-234-6691 | 2012-05-152 | 101 | DIBBS |
| 5340-01-234-6691 | 2010-09-253 | 161 | DIBBS |
| 5340-01-234-6691 | 2010-03-84 | 216 | DIBBS |
| 5340-01-234-6691 | 2010-02-32 | 116 | DIBBS |
| 5340-01-234-6691 | 2008-01-20 | 3 | DIBBS |
Cross Reference | NSN 5340-01-234-6691
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70308-03605-041 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-234-6691
Related Products | NSN 5340-01-234-6691
Technical Data | NSN 5340-01-234-6691
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 301 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | 13 ADJACENT ANGLES |
| FIRST LEG STYLE | 108 END RADIUS AND TAPERED |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.312 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| MOUNTING HOLE TYPE | THREADED |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70308-03605-041 |
Restrictions/Controls & Freight Information | NSN 5340-01-234-6691
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012030 | AIRCRAFT GROUP FUSELAGE OR SECTIONS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | C | 250.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
