Product Details | ANGLE BRACKET
5340-01-231-9290 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 12302854, 5340-01-231-9290, 01-231-9290, 5340012319290, 012319290
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 MAY 1986 | 01-231-9290 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-231-9290
Cross Reference | NSN 5340-01-231-9290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12302854 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-231-9290
Related Products | NSN 5340-01-231-9290
Technical Data | NSN 5340-01-231-9290
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.940 INCHES NOMINAL |
| III SECOND LEG LENGTH | 0.940 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.120 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.120 INCHES NOMINAL |
| III FIRST LEG ANGLE | 0.06 RADIANS NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 20.180 INCHES NOMINAL |

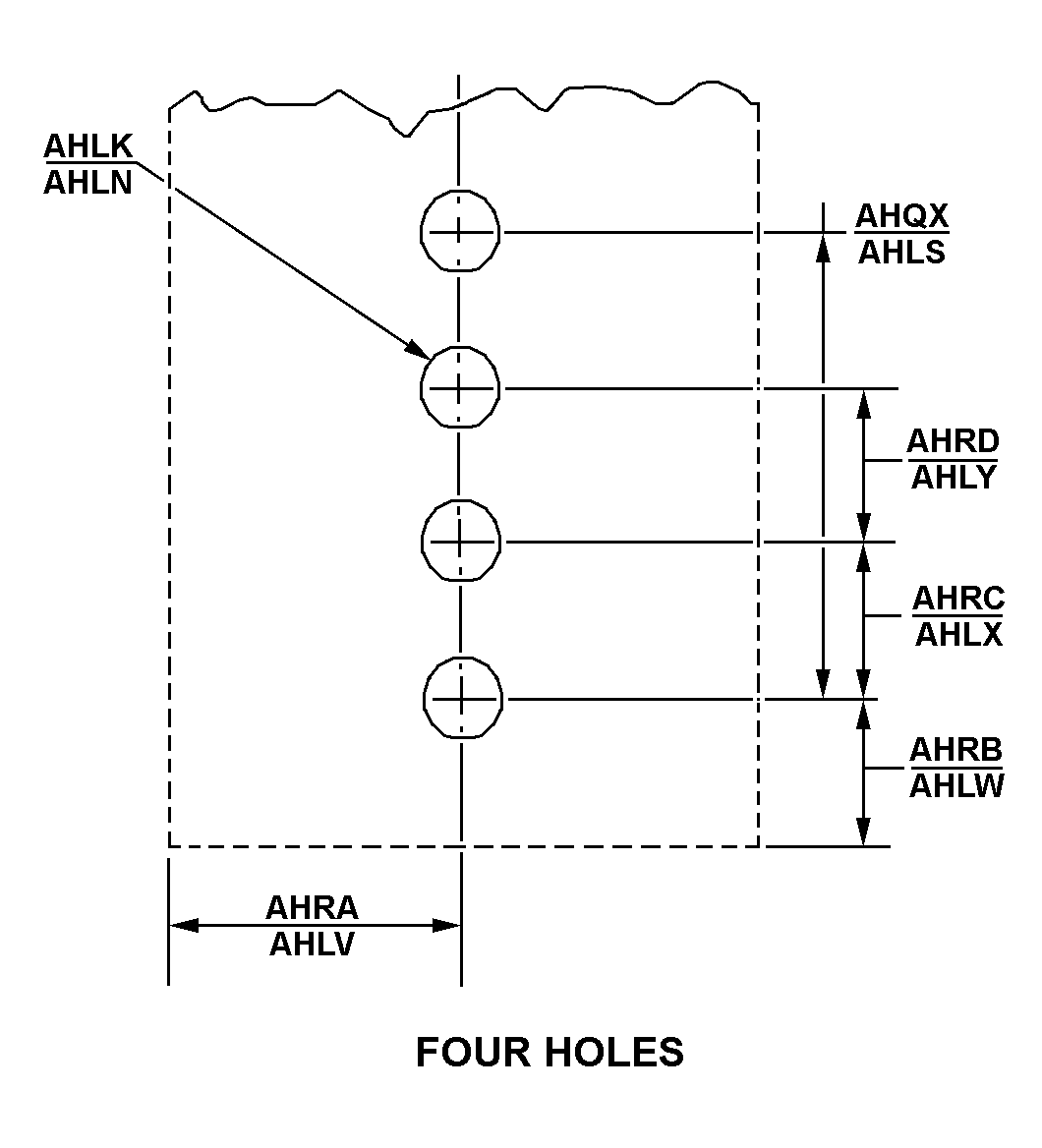

| FIRST LEG HOLE ARRANGEMENT STYLE | 144A FOUR HOLES |
| FIRST LEG HOLE DIAMETER | 0.177 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 18.000 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.440 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.090 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG LENGTH | 6.000 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG LENGTH | 6.000 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG WIDTH | 20.180 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 131 NO HOLE |
