NSN 5340-01-231-7749 551AS1151, 551AS115-1, 01-231-7749
Product Details | BOW HANDLE
5340-01-231-7749 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: 551AS1151, 551AS115-1, 5340-01-231-7749, 01-231-7749, 5340012317749, 012317749
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAY 1986 | 01-231-7749 | 20350 ( HANDLE, BOW ) |
Drawings & Photos | NSN 5340-01-231-7749
Demand History | NSN 5340-01-231-7749
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-231-7749 | 2023-04-107 | 10 | DIBBS |
| 5340-01-231-7749 | 2022-04-111 | 16 | DIBBS |
| 5340-01-231-7749 | 2021-08-238 | 10 | DIBBS |
| 5340-01-231-7749 | 2021-08-229 | 10 | DIBBS |
| 5340-01-231-7749 | 2014-03-68 | 11 | DIBBS |
| 5340-01-231-7749 | 2013-02-58 | 9 | DIBBS |
| 5340-01-231-7749 | 2013-02-38 | 1 | DIBBS |
| 5340-01-231-7749 | 2013-02-38 | 2 | DIBBS |
| 5340-01-231-7749 | 2012-12-363 | 1 | DIBBS |
| 5340-01-231-7749 | 2012-12-347 | 2 | DIBBS |
| 5340-01-231-7749 | 2012-12-338 | 1 | DIBBS |
| 5340-01-231-7749 | 2009-05-140 | 6 | DIBBS |
Cross Reference | NSN 5340-01-231-7749
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 551AS115-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-231-7749
Related Products | NSN 5340-01-231-7749
Technical Data | NSN 5340-01-231-7749
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A575, GRADE 1020 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B21 ROUND |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| HANDLE CLEARANCE | 2.750 INCHES NOMINAL |
| MOUNTING METHOD | THREADED SHAFT |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.750 INCHES NOMINAL |

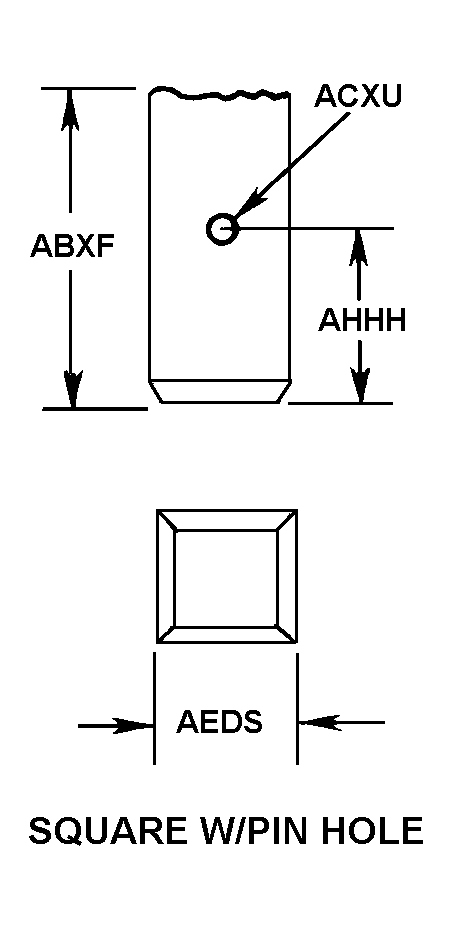

| INTEGRAL SHAFT STYLE | U12 SQUARE W/PIN HOLE |
| GROOVE WIDTH | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.875 INCHES NOMINAL |
| SQUARE SHAFT WIDTH | 0.425 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-231-7749
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-231-7749
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
