NSN 5340-01-223-2652 12334352, 01-223-2652, 012232652
Product Details | ANGLE BRACKET
5340-01-223-2652 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 12334352, 5340-01-223-2652, 01-223-2652, 5340012232652, 012232652
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 DEC 1985 | 01-223-2652 | 16900 ( BRACKET, ANGLE ) |

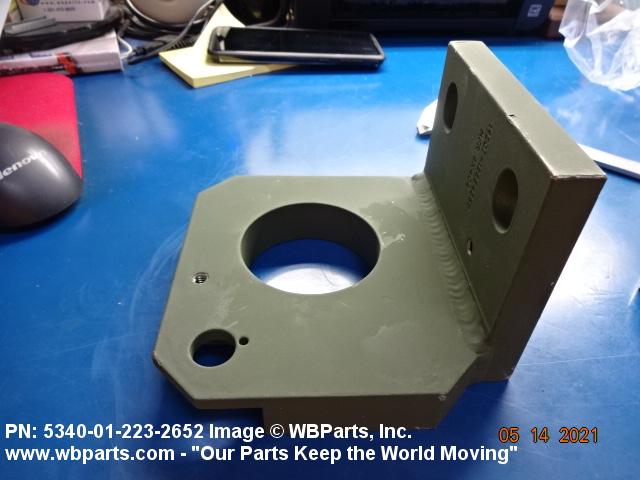

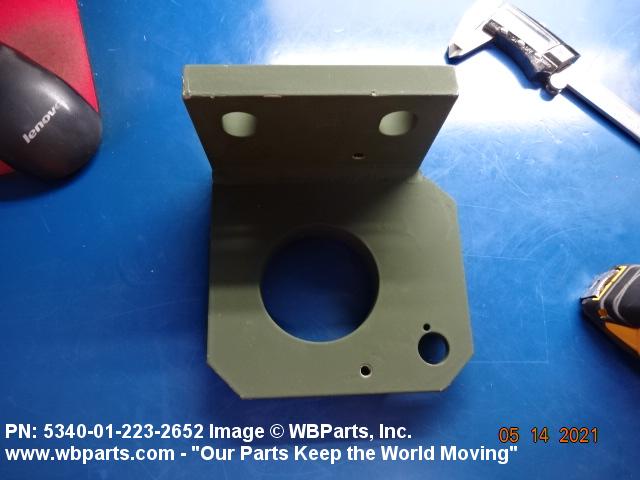

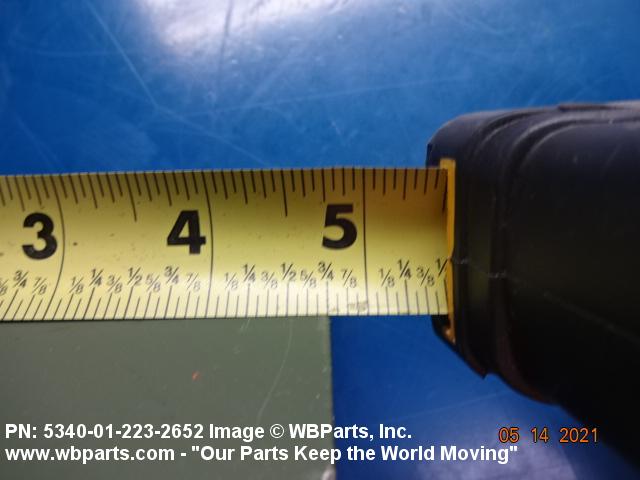

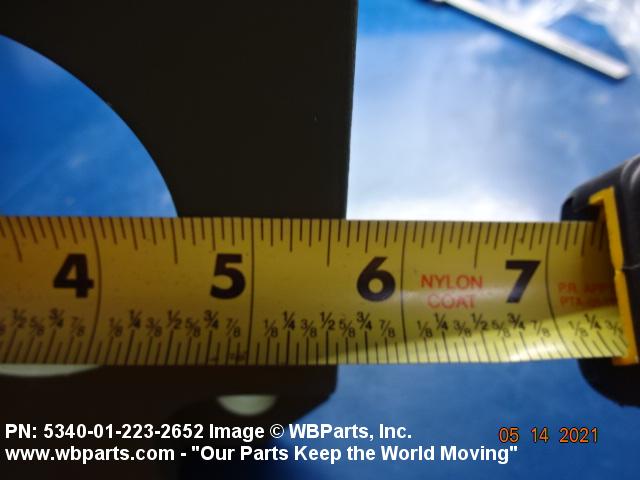

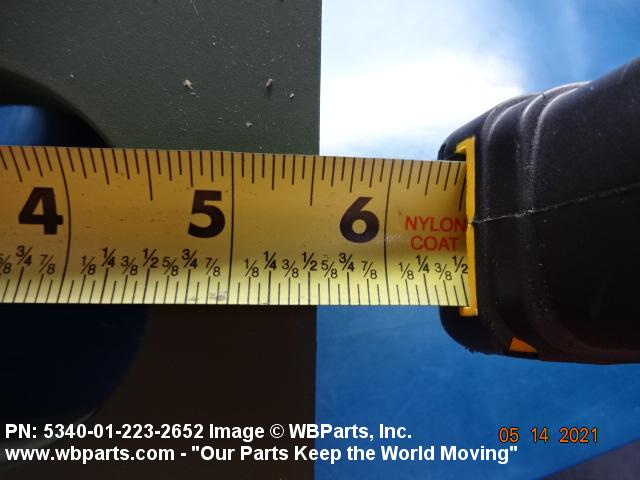

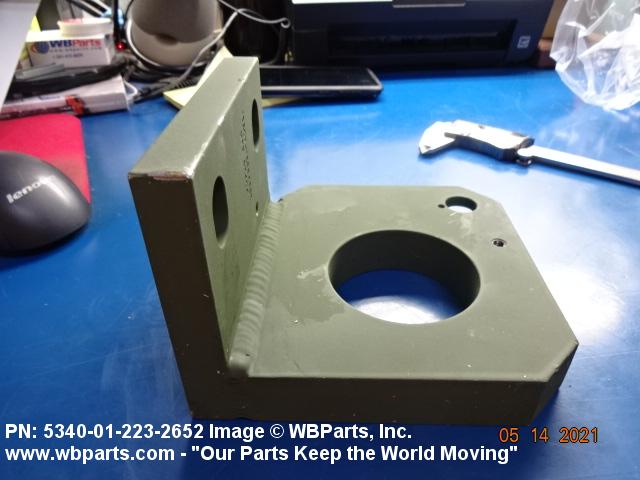

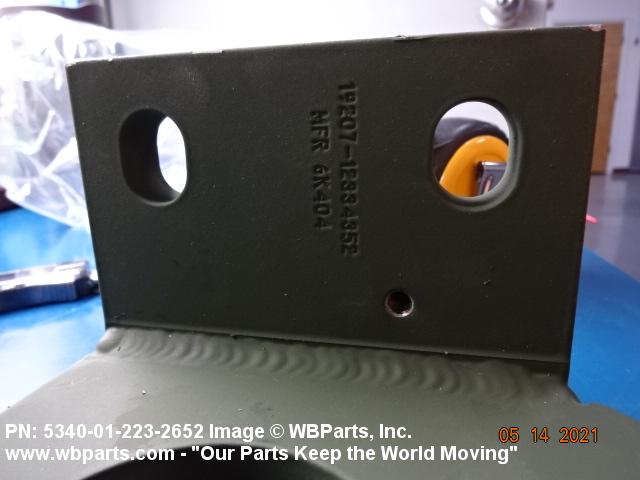

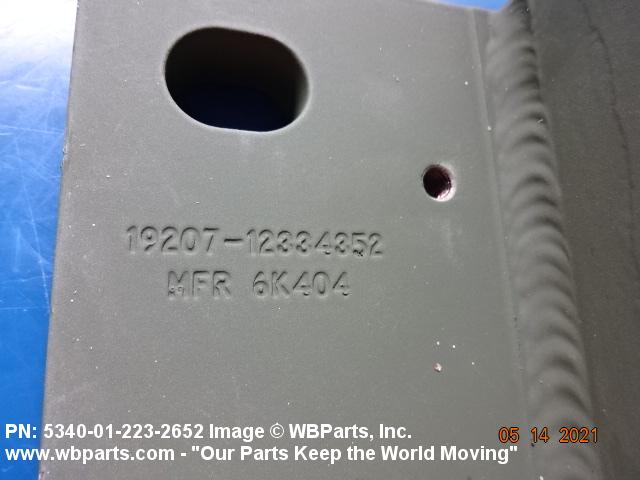

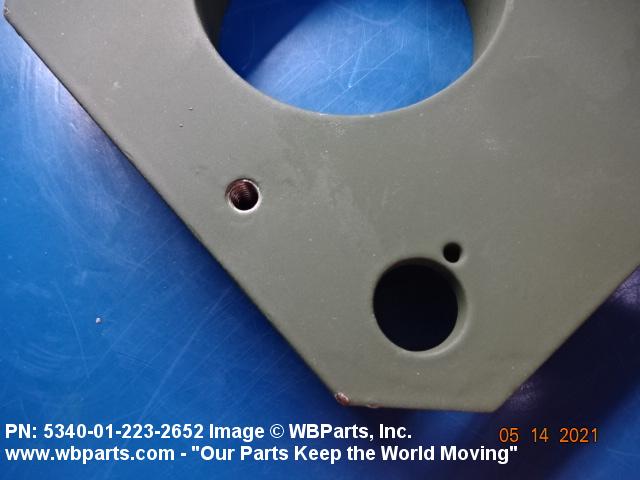

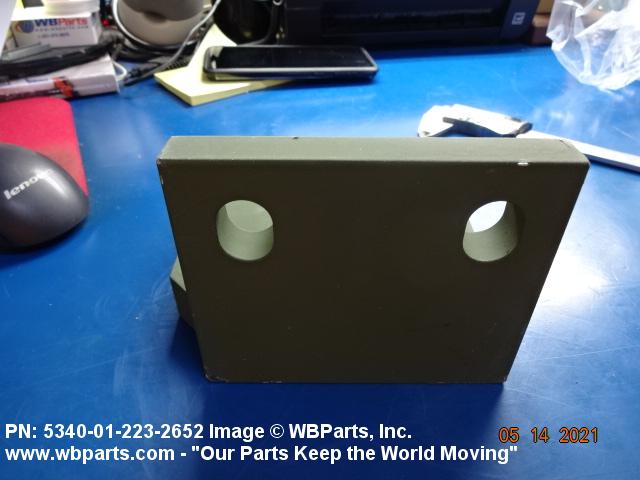

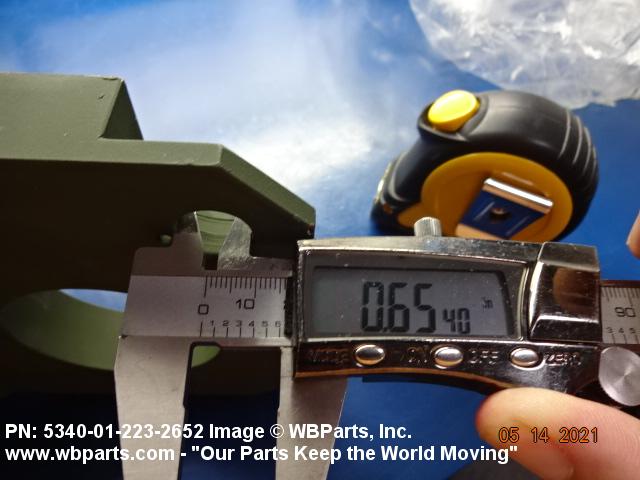

Drawings & Photos | NSN 5340-01-223-2652
Demand History | NSN 5340-01-223-2652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12334352 | 2021-03-90 | 1 | United States |
| 5340-01-223-2652 | 2020-01-10 | 15 | United States |
| 5340-01-223-2652 | 2019-08-213 | 95 | DIBBS |
| 5340-01-223-2652 | 2019-07-204 | 60 | DIBBS |
| 5340-01-223-2652 | 2019-06-170 | 50 | DIBBS |
| 5340-01-223-2652 | 2019-04-93 | 38 | DIBBS |
| 5340-01-223-2652 | 2018-12-359 | 34 | DIBBS |
| 5340-01-223-2652 | 2018-12-344 | 7 | United States |
| 5340-01-223-2652 | 2018-08-233 | 30 | DIBBS |
| 5340-01-223-2652 | 2018-06-177 | 10 | DIBBS |
| 5340-01-223-2652 | 2015-06-176 | 14 | DIBBS |
| 5340-01-223-2652 | 2010-08-224 | 15 | DIBBS |
| 5340-01-223-2652 | 2010-08-222 | 15 | DIBBS |
| 5340-01-223-2652 | 2010-07-182 | 32 | DIBBS |
Cross Reference | NSN 5340-01-223-2652
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12334352 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-223-2652
Related Products | NSN 5340-01-223-2652
Technical Data | NSN 5340-01-223-2652
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-741 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-22141 COMP IC1020 OR IC1030 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ENAMEL OR ENAMEL LUSTERLESS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-52798 MIL SPEC SINGLE TREATMENT RESPONSE OR MIL-E-52835 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 4.000 INCHES NOMINAL |
| SECOND LEG LENGTH | 6.380 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.625 INCHES NOMINAL |
| SECOND LEG THICKNESS | 1.000 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 4.750 INCHES NOMINAL |
| SECOND LEG WIDTH | 5.755 INCHES NOMINAL |
| SECOND LEG END WIDTH | 4.255 INCHES NOMINAL |
| SECOND LEG CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 205 2 SLOTS |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 3.000 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.875 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.000 INCHES NOMINAL |
| FIRST LEG SLOT LENGTH | 0.876 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| FIRST LEG SLOT WIDTH | 0.656 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |

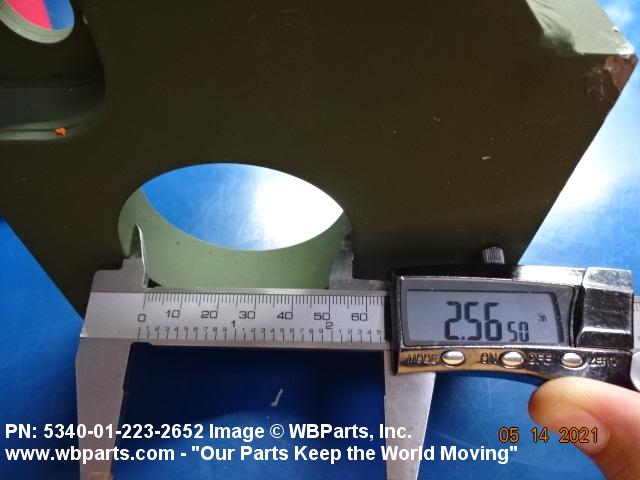

| SECOND LEG HOLE DIAMETER | 2.575 INCHES MINIMUM AND 2.585 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 2.347 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 2.125 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 1.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO | 3.130 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-223-2652
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-223-2652
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
