NSN 5340-01-215-2643 4063749, 4067685, 01-215-2643
Product Details | MOUNTING BRACKET
5340-01-215-2643 A bracket of various shapes (other than angle), designed to be attached to a supporting surface for the specific purpose of positioning, aligning and/or supporting another item. Excludes BRACE (as modified); BRACKET, ANGLE; and BRACKET, DOUBLE ANGLE. See also BRACKET (1), ELECTRICAL CONNECTOR; BRACKET, FIRE EXTINGUISHER; BRACKET, SOLENOID; BRACKET, TRACK, SLIDING DOOR; and RETAINER (as modified).20510050018Guns, through 30mm10100026Guns, over 30mm up to 75mm1420000053400020Hardware, Commercial
Part Alternates: 4063749, 4067685, 5340-01-215-2643, 01-215-2643, 5340012152643, 012152643
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 AUG 1985 | 01-215-2643 | 38089 ( BRACKET, MOUNTING ) |

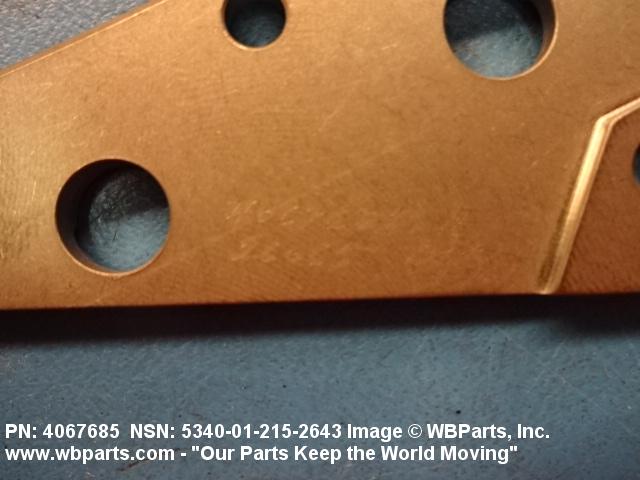

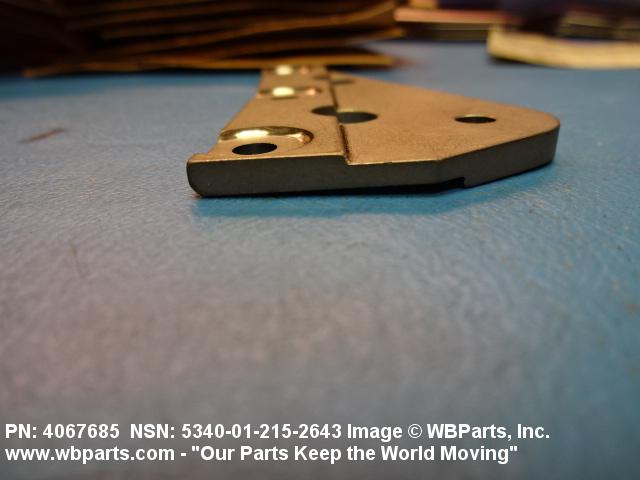

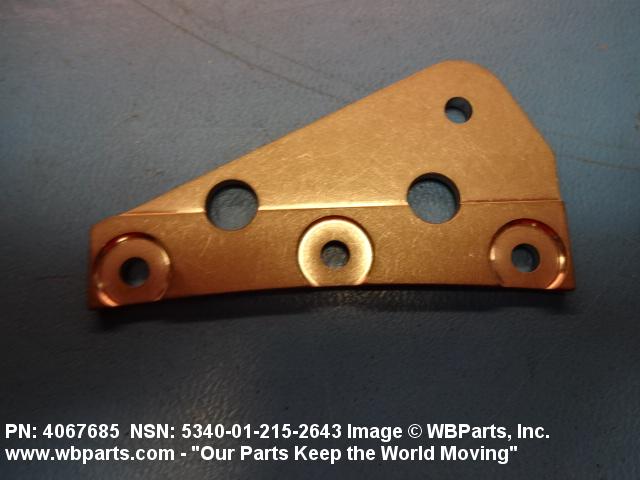

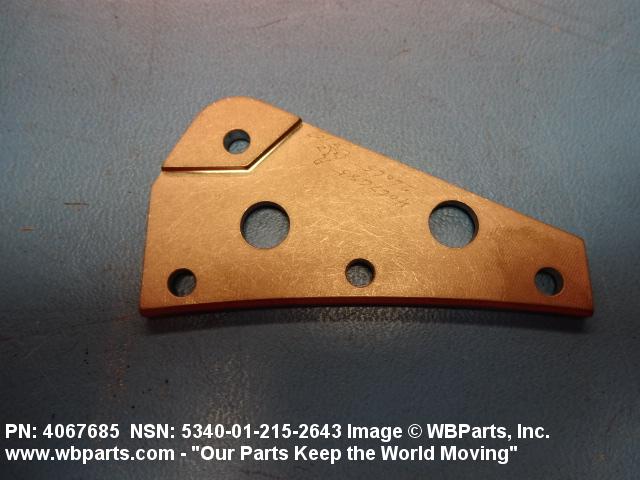

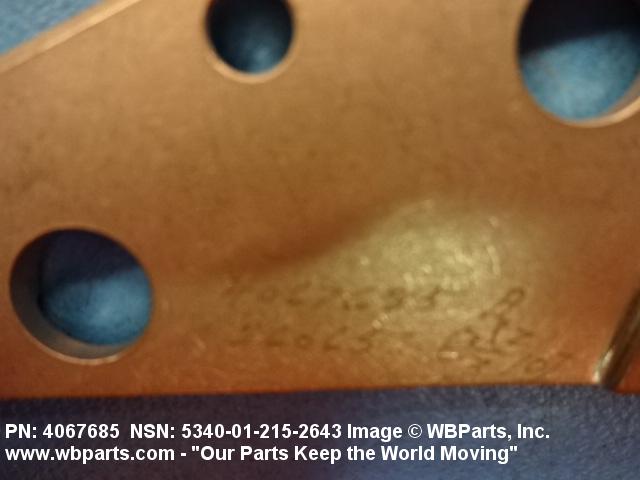

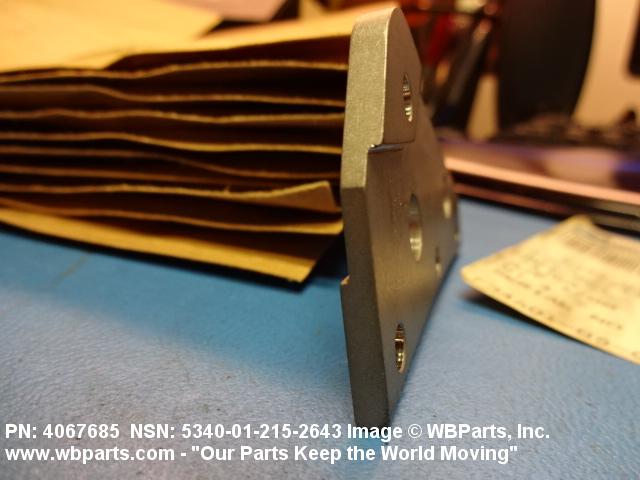

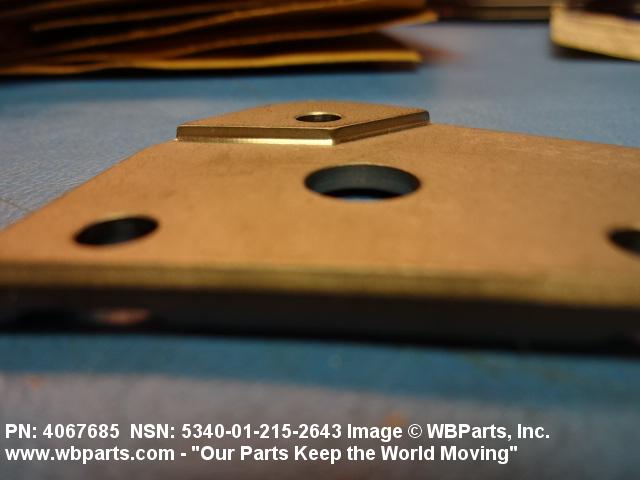

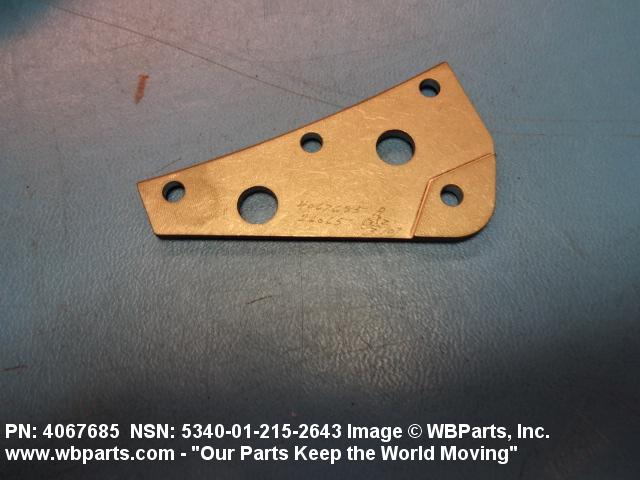

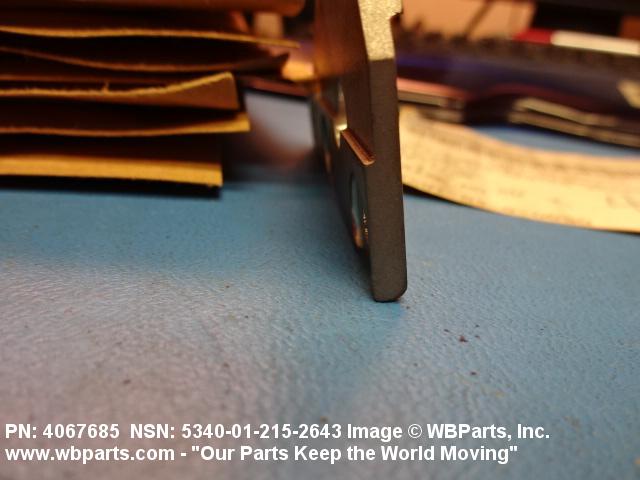

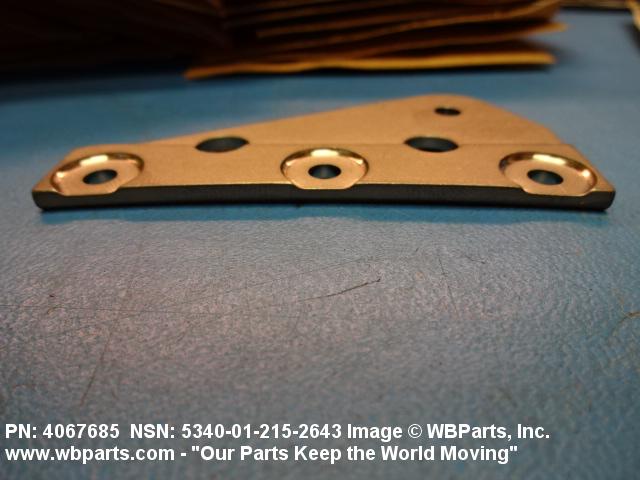

Drawings & Photos | NSN 5340-01-215-2643
Demand History | NSN 5340-01-215-2643
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4067685 | 2022-03-79 | 294 | DIBBS |
| 4067685 | 2021-06-181 | 219 | DIBBS |
| 4067685 | 2019-10-280 | 38 | DIBBS |
| 5340-01-215-2643 | 2019-01-31 | 32 | United States |
| 4063749 | 2019-01-06 | 55 | DIBBS |
| 4067685 | 2019-01-06 | 55 | DIBBS |
| 5340-01-215-2643 | 2017-09-254 | 1 | DIBBS-RFPs |
| 5340-01-215-2643 | 2017-07-201 | 84 | DIBBS |
| 5340-01-215-2643 | 2017-04-114 | 84 | DIBBS |
| 5340-01-215-2643 | 2017-02-44 | 65 | DIBBS |
| 5340-01-215-2643 | 2017-01-04 | 119 | DIBBS |
| 5340-01-215-2643 | 2016-12-340 | 100 | DIBBS |
| 5340-01-215-2643 | 2016-03-63 | 98 | DIBBS |
| 5340-01-215-2643 | 2016-02-52 | 98 | DIBBS |
| 5340-01-215-2643 | 2015-11-305 | 272 | DIBBS |
| 5340-01-215-2643 | 2015-10-286 | 103 | DIBBS |
| 5340-01-215-2643 | 2015-03-74 | 161 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-215-2643
Related Products | NSN 5340-01-215-2643
Restrictions/Controls & Freight Information | NSN 5340-01-215-2643
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-215-2643
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
