NSN 5340-01-213-5533 MS21919WDE8, AS21919WDE8, BACC10DF108
Product Details | LOOP CLAMP
5340-01-213-5533 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21919WDE8, AS21919WDE8, BACC10DF108, TA9C29S8DG, 4058, 405-8, 5340-01-213-5533, 01-213-5533, 5340012135533, 012135533
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUL 1985 | 01-213-5533 | 17532 ( CLAMP, LOOP ) |

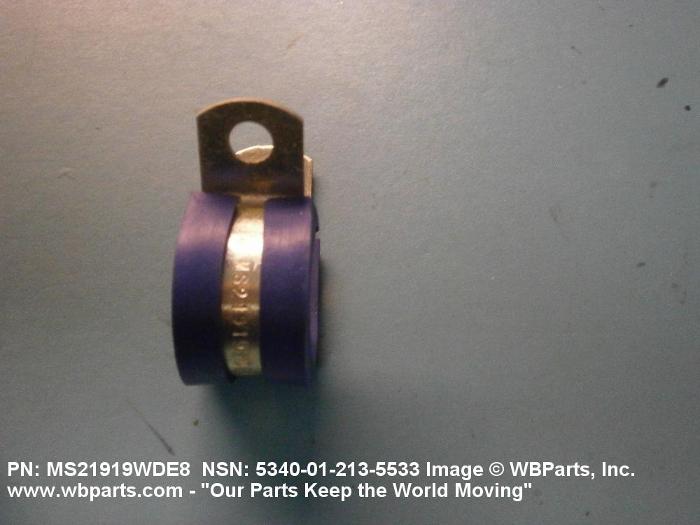

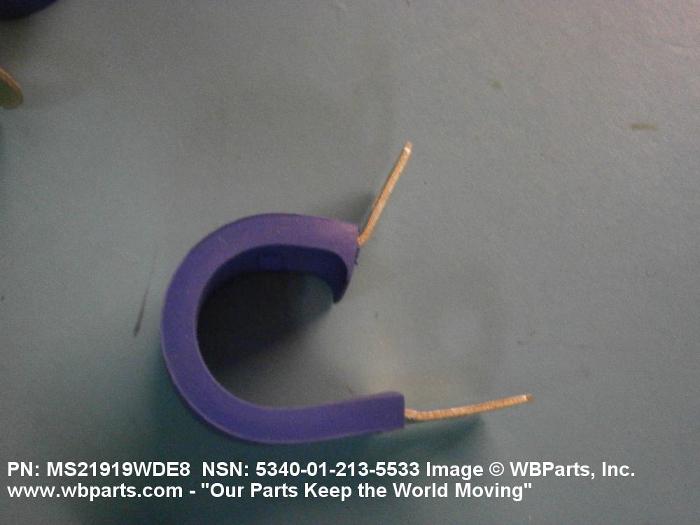

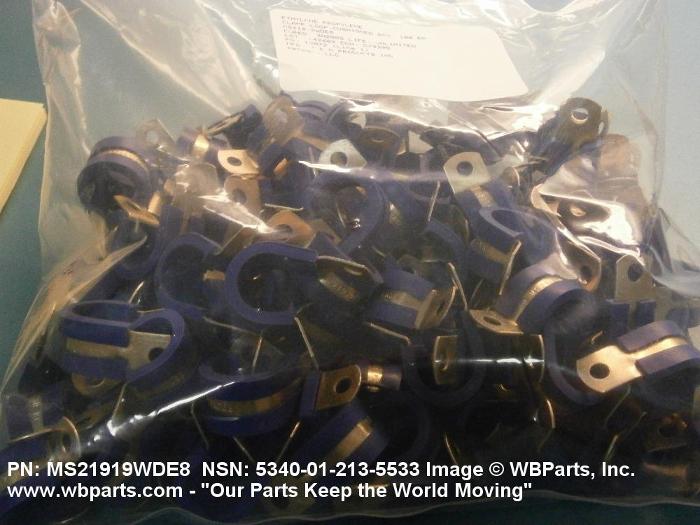

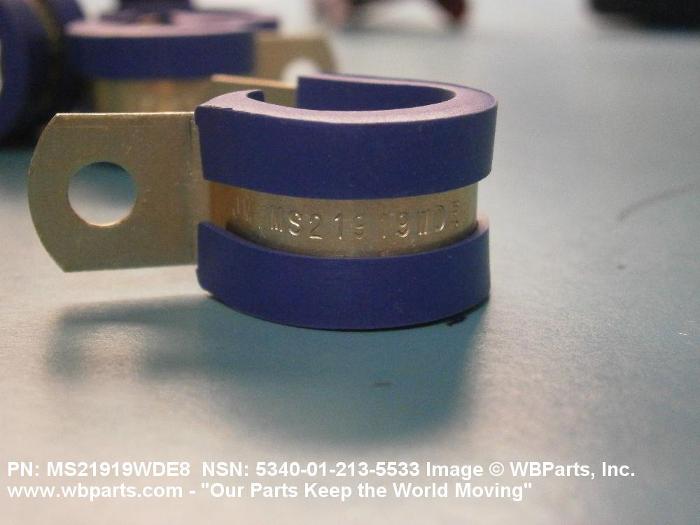

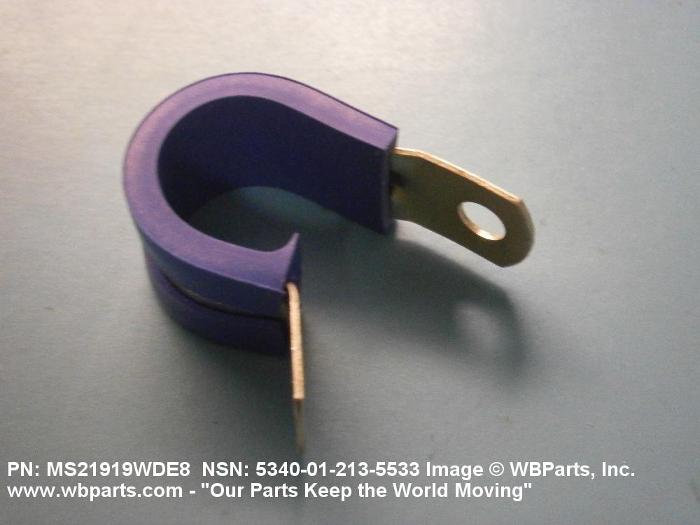

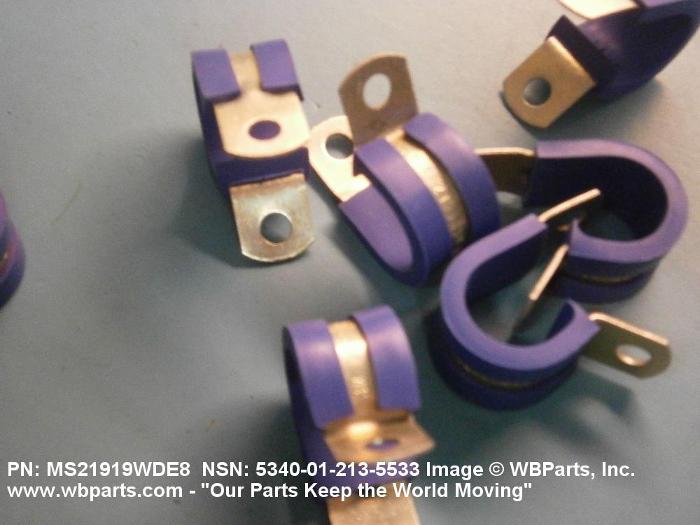

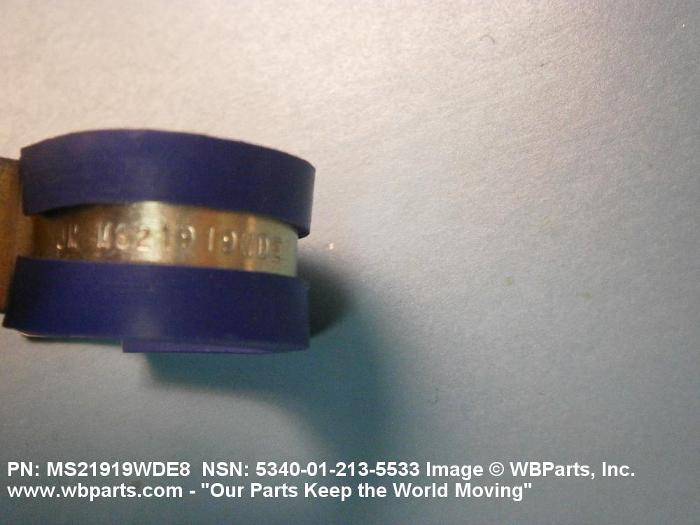

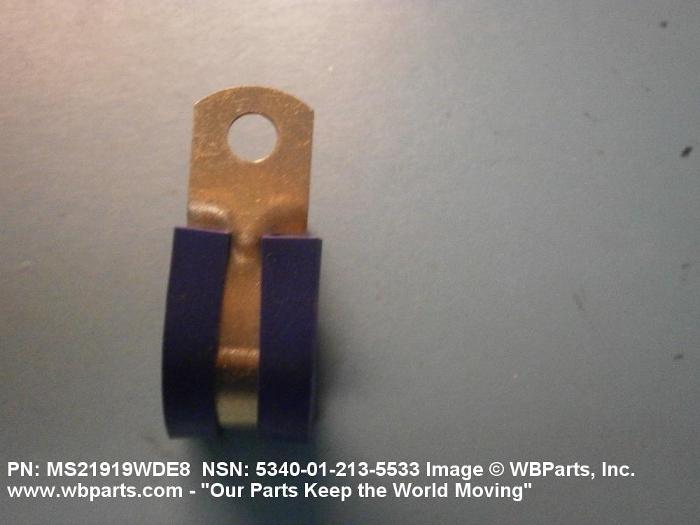

Drawings & Photos | NSN 5340-01-213-5533
Demand History | NSN 5340-01-213-5533
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4058 | 2024-03-87 | 12 | Germany |
| 405-8 | 2021-11-333 | 10 | DIBBS |
| AS21919WDE8 | 2021-11-333 | 10 | DIBBS |
| BACC10DF108 | 2021-11-333 | 10 | DIBBS |
| TA9C29S8DG | 2021-11-333 | 10 | DIBBS |
| 405-8 | 2021-09-264 | 10 | DIBBS |
| AS21919WDE8 | 2021-09-264 | 10 | DIBBS |
| BACC10DF108 | 2021-09-264 | 10 | DIBBS |
| TA9C29S8DG | 2021-09-264 | 10 | DIBBS |
| 405-8 | 2021-08-229 | 10 | DIBBS |
| AS21919WDE8 | 2021-08-229 | 10 | DIBBS |
| BACC10DF108 | 2021-08-229 | 10 | DIBBS |
| TA9C29S8DG | 2021-08-229 | 10 | DIBBS |
| 405-8 | 2021-08-215 | 10 | DIBBS |
| AS21919WDE8 | 2021-08-215 | 10 | DIBBS |
| BACC10DF108 | 2021-08-215 | 10 | DIBBS |
| TA9C29S8DG | 2021-08-215 | 10 | DIBBS |
| 405-8 | 2020-06-163 | 10 | DIBBS |
| AS21919WDE8 | 2020-06-163 | 10 | DIBBS |
| BACC10DF108 | 2020-06-163 | 10 | DIBBS |
| TA9C29S8DG | 2020-06-163 | 10 | DIBBS |
| MS21919WDE8 | 2013-01-07 | 10 | Indonesia |
| MS21919WDE8 | 2012-06-173 | 2 | United States |
| MS21919WDE8 | 2012-06-173 | 2 | United States |
Cross Reference | NSN 5340-01-213-5533
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 405-8 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| AS21919WDE8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACC10DF108 | 81205 | THE BOEING COMPANY DBA BOEING |
| MS21919WDE8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TA9C29S8DG | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-213-5533
Related Products | NSN 5340-01-213-5533
Technical Data | NSN 5340-01-213-5533
| Characteristic | Specifications |
|---|---|
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.654 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-362 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| STYLE DESIGNATOR | OFFSET MOUNT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BAND |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC CUSHION |
| SURFACE TREATMENT | ANODIZE BAND |
| MATERIAL | ALUMINUM ALLOY 2024 BAND |
| DIAMETER | 0.204 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.872 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.058 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| LOOP INSIDE DIAMETER | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-213-5533
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-213-5533
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
