Product Details | BAIL HANDLE

5340-01-211-5606 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.

Part Alternates: 007221-501, 5340-01-211-5606, 01-211-5606, 5340012115606, 012115606, 007221501

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 28 JUN 1985 01-211-5606

Drawings & Photos | NSN 5340-01-211-5606


Demand History | NSN 5340-01-211-5606

Part Number Request Date QTY Origin
5340-01-211-5606 2014-03-90 3 DIBBS
5340-01-211-5606 2014-03-77 5 DIBBS
5340-01-211-5606 2014-02-48 5 DIBBS

Cross Reference | NSN 5340-01-211-5606

Part Number Cage Code Manufacturer
007221-501 59027 MEGGITT DEFENSE SYSTEMS, INC. DBA MEGGITT WESTERN DESIGN
007221-501 62228 MEGGITT DEFENSE SYSTEMS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-211-5606

Technical Data | NSN 5340-01-211-5606

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 6061 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE BODY
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625,TYPE 3,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

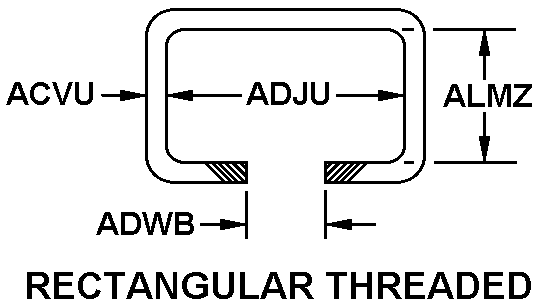

STYLE DESIGNATOR A5 RECTANGULAR THREADED
STOCK DIAMETER 0.310 INCHES NOMINAL
INSIDE LENGTH 4.620 INCHES NOMINAL
DISTANCE BETWEEN ENDS 3.560 INCHES NOMINAL
HANDLE CLEARANCE 1.690 INCHES NOMINAL
MOUNTING METHOD THREADED HOLE
MOUNTING FACILITY QUANTITY 2
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 4.000 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD CLASS 2B
SPECIAL FEATURES STOCK DIAMETER OF BOTH ENDS IS 0.440 IN;BASE DIFFERENCES:FIRST END: 1.500 IN L,NO HANDLE BASE ON SECOND END
MANUFACTURERS CODE 59027
DESIGN CONTROL REFERENCE 007221-501

Restrictions/Controls & Freight Information | NSN 5340-01-211-5606

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095142 HARDWARE HANDLES,IRON/STEEL
Less than car load rating Q 70
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code BF U.S. Army Armament and Chemical Acquisition and
Logistics Activity
Rock Island, IL 61299-6000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
