NSN 5340-01-203-5670 8722178, 01-203-5670, 012035670
Product Details | SLIDING DOOR TRACK BRACKET
5340-01-203-5670 A fabricated item for fastening to a supporting member and which holds and supports the sliding door track. It may have attachments and serve additional functions as a center or end stop for the door, or to lock adjoining sections of track.
Part Alternates: 8722178, 5340-01-203-5670, 01-203-5670, 5340012035670, 012035670
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1985 | 01-203-5670 | 06699 ( BRACKET, TRACK, SLIDING DOOR ) |
Drawings & Photos | NSN 5340-01-203-5670
Demand History | NSN 5340-01-203-5670
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-203-5670 | 2017-04-94 | 2 | DIBBS |
| 5340-01-203-5670 | 2016-06-165 | 4 | DIBBS |
| 5340-01-203-5670 | 2014-12-363 | 4 | DIBBS |
| 5340-01-203-5670 | 2014-12-350 | 4 | DIBBS |
| 5340-01-203-5670 | 2012-08-235 | 8 | DIBBS |
Cross Reference | NSN 5340-01-203-5670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8722178 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-203-5670
Related Products | NSN 5340-01-203-5670
Technical Data | NSN 5340-01-203-5670
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AQQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE |

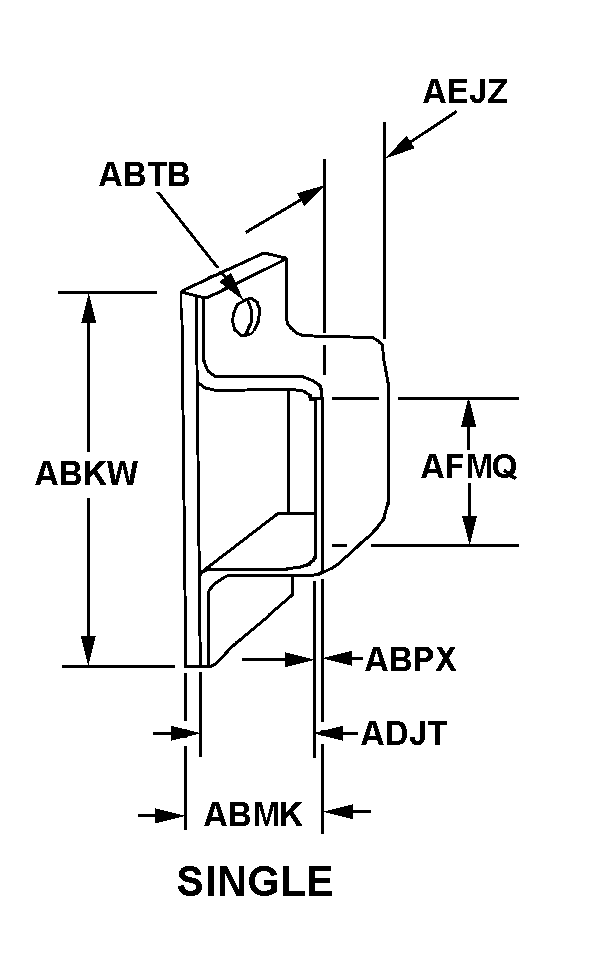

| STYLE DESIGNATOR | 39 SINGLE |
| III OVERALL HEIGHT | 4.500 INCHES NOMINAL |
| III OVERALL WIDTH | 0.761 INCHES NOMINAL |
| III MATERIAL THICKNESS | 0.187 INCHES NOMINAL |
| III MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| III INSIDE WIDTH | 0.387 INCHES NOMINAL |
| III DEPTH | 1.000 INCHES NOMINAL |
| III INSIDE HEIGHT | 2.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-203-5670
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-203-5670
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
