NSN 5340-01-198-9014 7111M89P01, 01-198-9014, 011989014
Product Details | ACCESS COVER
5340-01-198-9014 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 7111M89P01, 5340-01-198-9014, 01-198-9014, 5340011989014, 011989014
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1985 | 01-198-9014 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-01-198-9014
Cross Reference | NSN 5340-01-198-9014
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7111M89P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-198-9014
Technical Data | NSN 5340-01-198-9014
| Characteristic | Specifications |
|---|---|

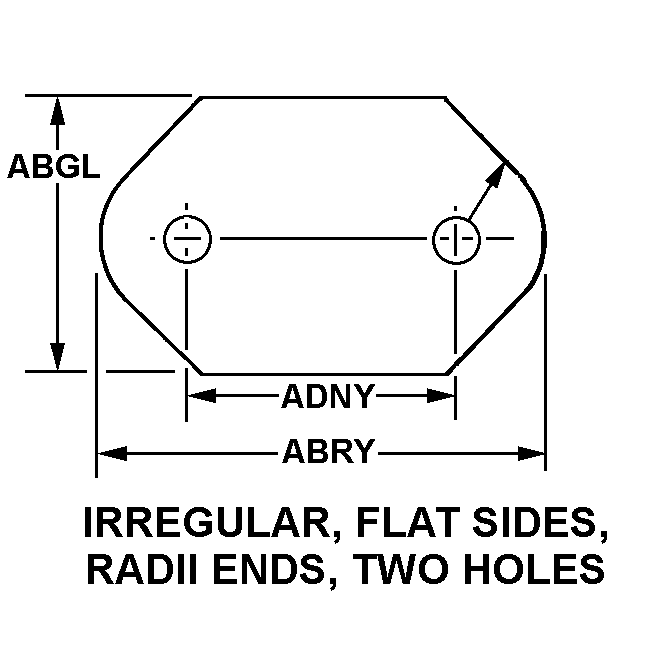

| PERIPHERAL SHAPE STYLE | 85 IRREGULAR, FLAT SIDES, RADII ENDS, TWO HOLES |
| LENGTH | 2.100 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 1.600 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 3 CIRCULAR RECESS |
| INSIDE DIAMETER | 0.497 INCHES MINIMUM AND 0.506 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.190 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4117 ASSN STD SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | SPECIAL |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.216 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| SPECIAL FEATURES | BODY 1.265 IN. H; 0.934,0.997,1.059 O.D. EA W/SEAL GROOVE 0.824 - 0.827 IN. DIA,0.887 - 0.890 IN. DIA,0.951 - 0.954 IN. DIA,SURFACE FINISH 63 MICROINCH |
| END ITEM IDENTIFICATION | AB FUEL CONTROL 7113M19 FOR F110-GE-100 ACFT ENG |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 7111M89P01 |
Restrictions/Controls & Freight Information | NSN 5340-01-198-9014
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
