NSN 5340-01-198-2240 HS99417, 5584301, 12339731

Product Details | ROD RETAINER CLIP-CLEVIS

5340-01-198-2240 An item formed or molded from resilient material, open along the entire length of the body and having in one end a clevis w/transverse holes, or a split tubular type clip through which a part, pin or a like is being held in place by spring tension.

Part Alternates: HS99417, 5584301, 12339731, 5340-01-198-2240, 01-198-2240, 5340011982240, 011982240

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 JAN 1985	01-198-2240	52551 ( CLIP, ROD RETAINER )

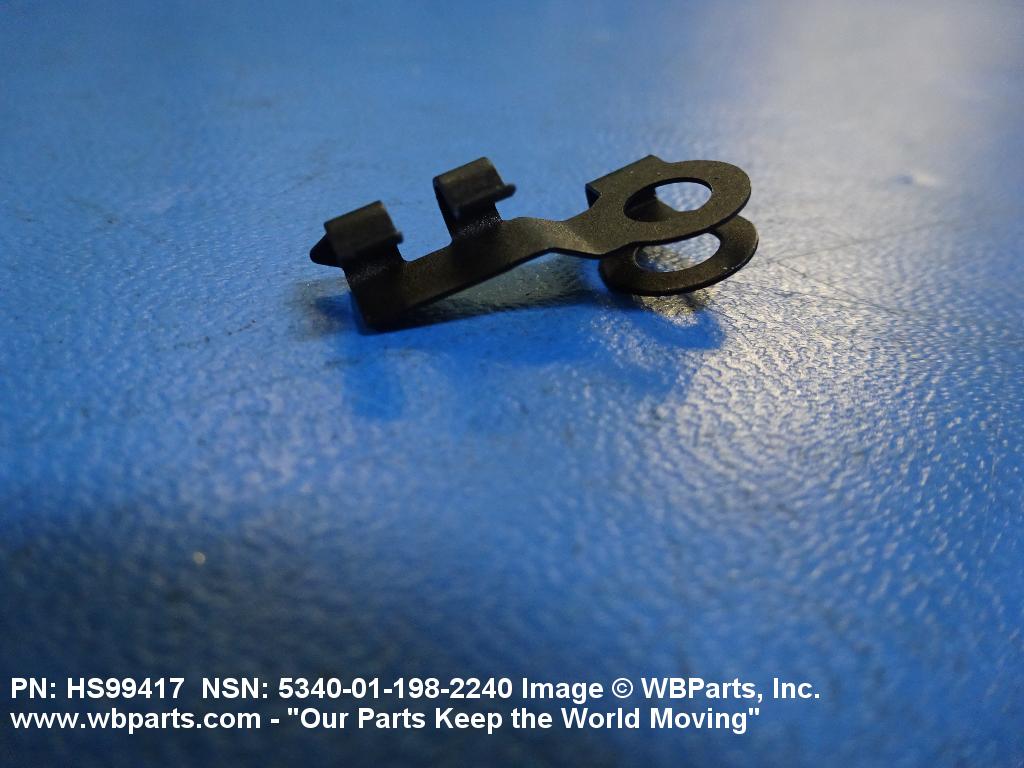

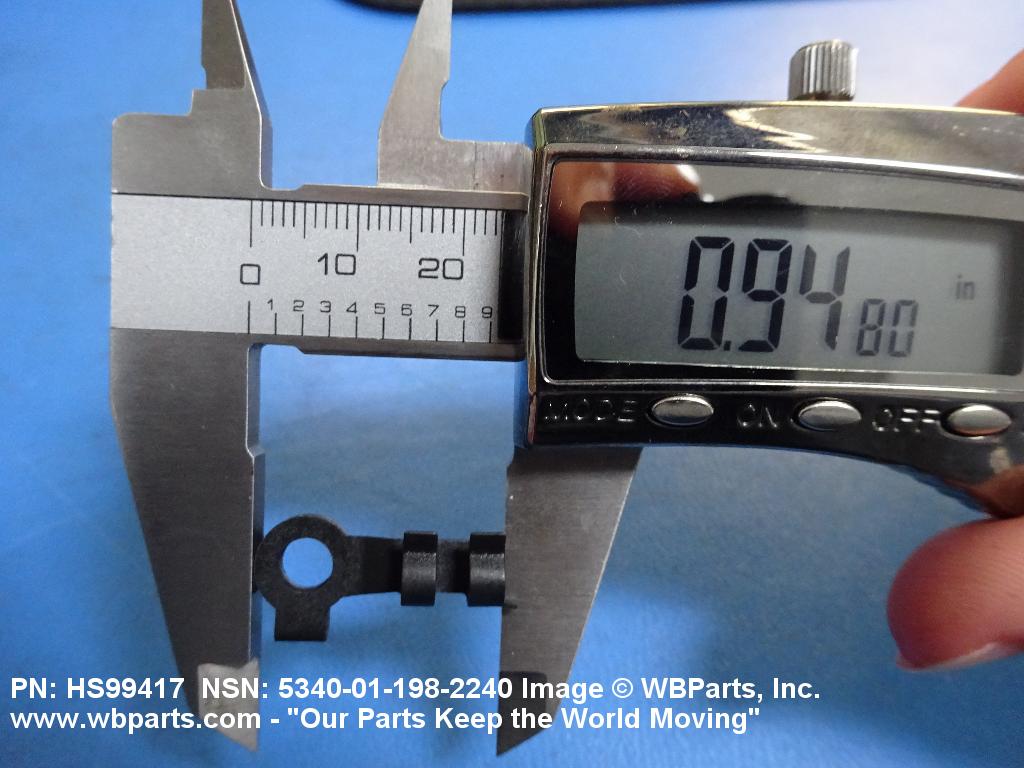

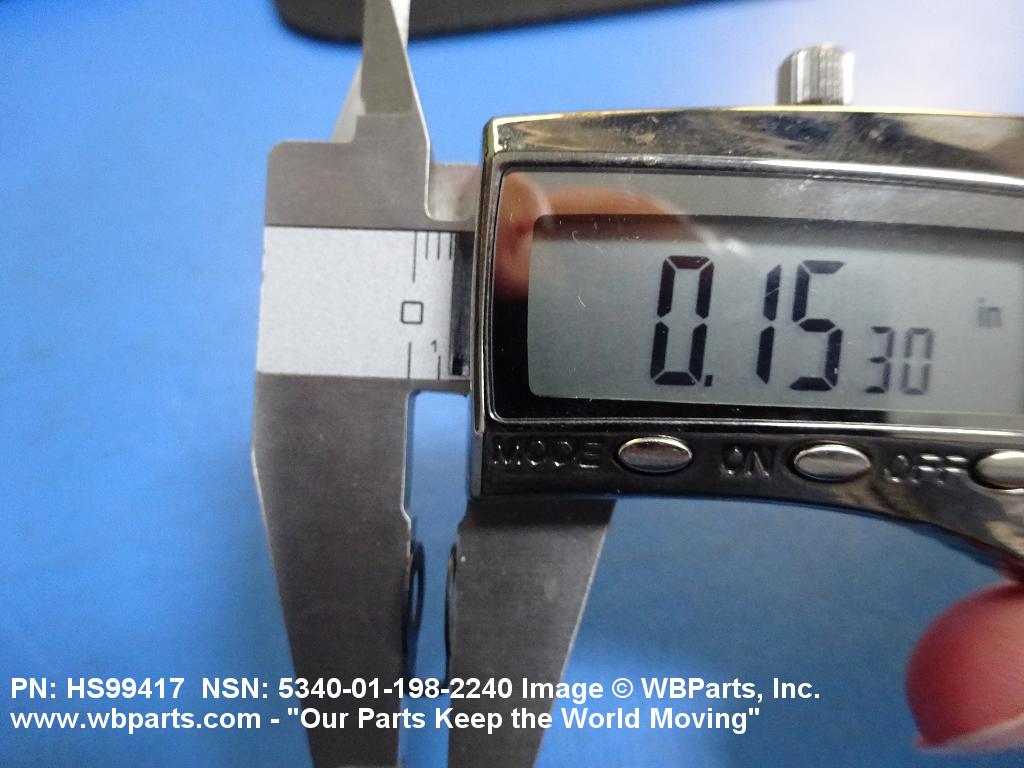

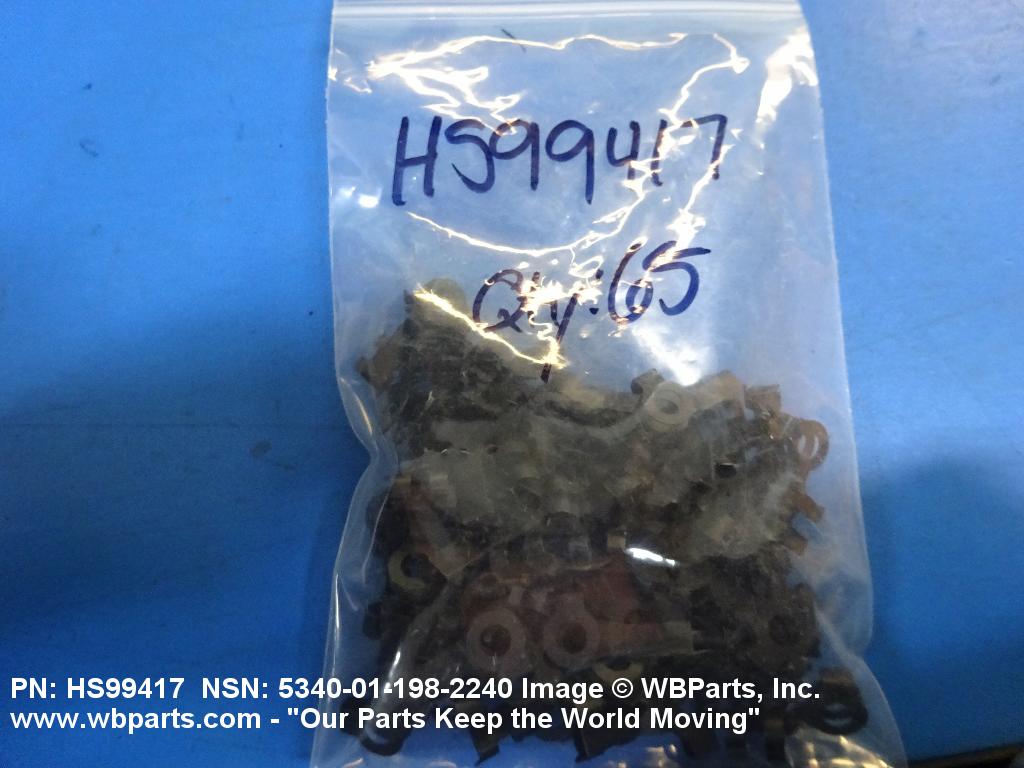

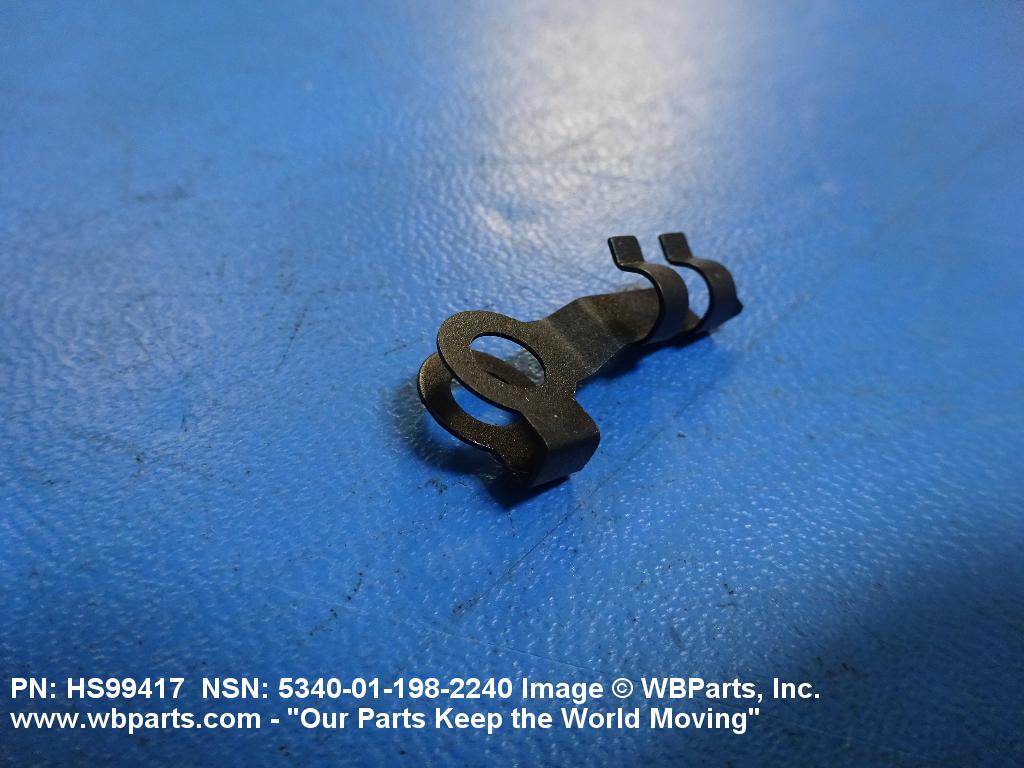

Drawings & Photos | NSN 5340-01-198-2240

Part Number	Request Date	QTY	Origin
12339731	2022-06-154	80	United States
5340-01-198-2240	2022-05-138	100	US
12339731	2022-05-133	80	United States
5340-01-198-2240	2022-03-61	65	United States
5340-01-198-2240	2021-09-260	3530	US
5340-01-198-2240	2021-09-260	3530	US
5340-01-198-2240	2020-10-302	60	US
5340-01-198-2240	2018-04-105	4000	DIBBS
5340-01-198-2240	2017-11-311	8000	DIBBS
5340-01-198-2240	2017-02-32	12008	DIBBS
5340-01-198-2240	2015-09-245	5058	DIBBS
5340-01-198-2240	2015-06-180	2500	DIBBS
5340-01-198-2240	2015-06-168	2500	DIBBS
5340-01-198-2240	2013-08-219	1000	DIBBS
5340-01-198-2240	2013-07-207	1699	DIBBS
5340-01-198-2240	2010-02-43	2520	DIBBS
5340-01-198-2240	2008-09-262	7324	DIBBS

Cross Reference | NSN 5340-01-198-2240

Part Number	Cage Code	Manufacturer
12339731	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
5340PL0874347	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
5584301	34623	AM GENERAL, LLC
HS99417	83058	TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-198-2240

Compare

Related Products | NSN 5340-01-198-2240

5340-01-198-2241, 5340-01-198-2247, 5340-01-198-2248, 5340-01-198-2249, 5340-01-198-2253

Restrictions/Controls & Freight Information | NSN 5340-01-198-2240

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	157170	PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-198-2240

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
