Product Details | ACCESS HOLE FRAME
5340-01-197-1452 A rigid item designed to frame a structural opening for reinforcement purposes and/or to accommodate covers, access (as modified) and doors, access (as modified).20211050013Nuclear Bombs53400020Hardware, Commercial
Part Alternates: SMD602962, SM-D-602962, 5340-01-197-1452, 01-197-1452, 5340011971452, 011971452
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1984 | 01-197-1452 | 22291 ( FRAME, ACCESS HOLE ) |
Drawings & Photos | NSN 5340-01-197-1452
Cross Reference | NSN 5340-01-197-1452
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-D-602962 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-197-1452
Related Products | NSN 5340-01-197-1452
Technical Data | NSN 5340-01-197-1452
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

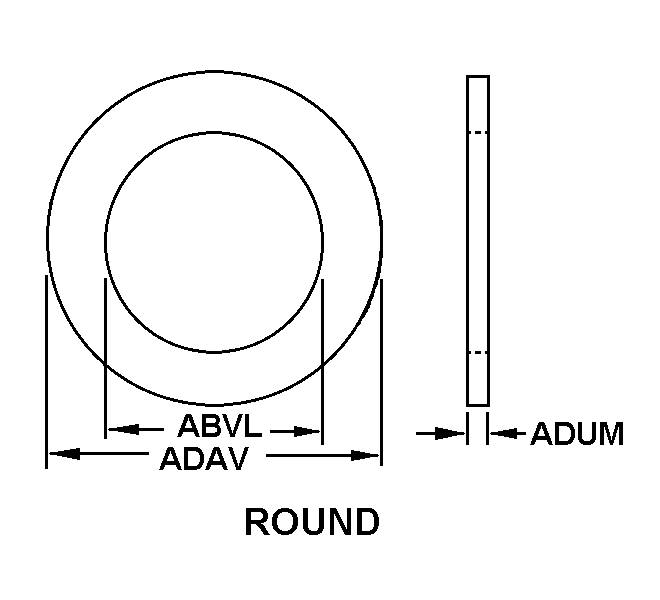

| STYLE DESIGNATOR | F3 ROUND |
