NSN 5340-01-180-5625 TA04231SZ0217NB, 10513099, 01-180-5625
Product Details | LOOP CLAMP
5340-01-180-5625 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: TA04231SZ0217NB, 10513099, 5340-01-180-5625, 01-180-5625, 5340011805625, 011805625
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1984 | 01-180-5625 | 17532 ( CLAMP, LOOP ) |

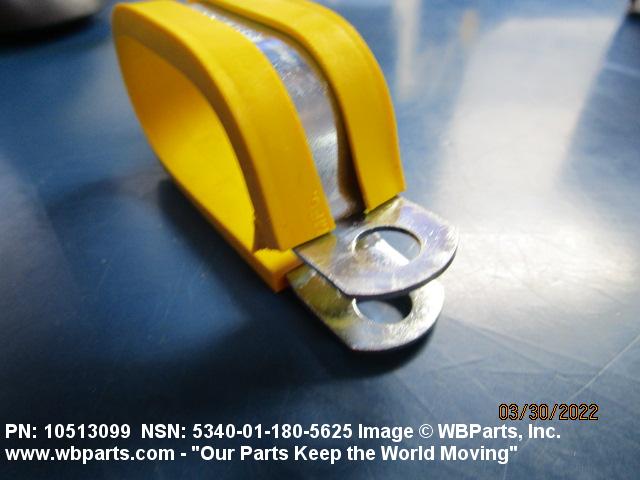

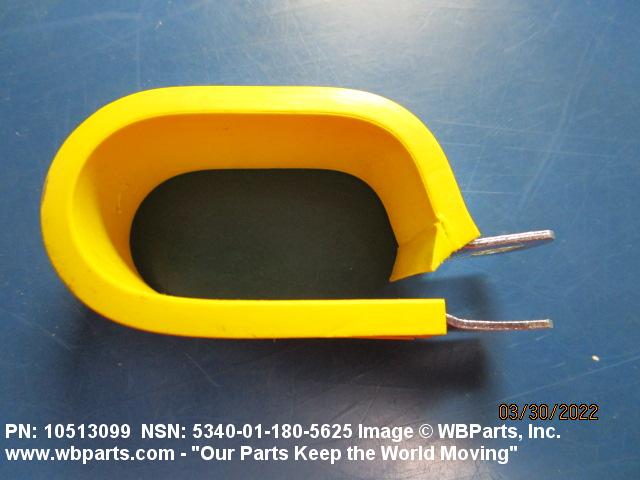

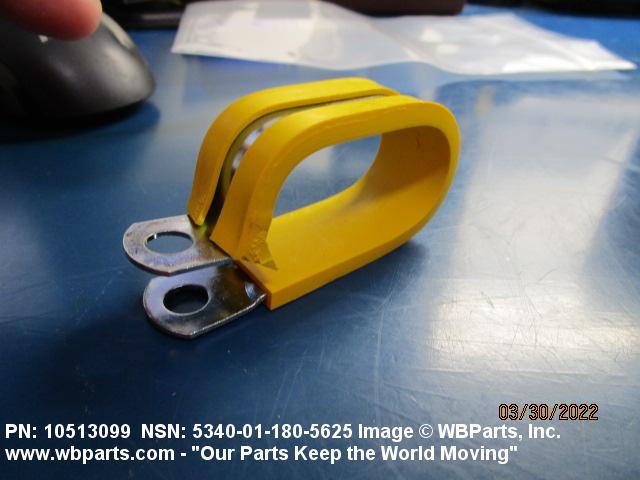

Drawings & Photos | NSN 5340-01-180-5625
Demand History | NSN 5340-01-180-5625
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10513099 | 2023-02-51 | 12 | DIBBS |
| TA04231SZ0217NB | 2023-02-51 | 12 | DIBBS |
| 10513099 | 2022-11-326 | 290 | DIBBS |
| TA04231SZ0217NB | 2022-11-326 | 290 | DIBBS |
| 10513099 | 2022-06-167 | 198 | DIBBS |
| TA04231SZ0217NB | 2022-06-167 | 198 | DIBBS |
| 5340-01-180-5625 | 2022-05-134 | 70 | United States |
| 10513099 | 2022-05-123 | 50 | DIBBS |
| TA04231SZ0217NB | 2022-05-123 | 50 | DIBBS |
| 5340-01-180-5625 | 2022-04-117 | 10 | United States |
| 10513099 | 2022-03-82 | 118 | DIBBS |
| TA04231SZ0217NB | 2022-03-82 | 118 | DIBBS |
| 10513099 | 2022-03-80 | 56 | DIBBS |
| TA04231SZ0217NB | 2022-03-80 | 56 | DIBBS |
| 10513099 | 2022-03-69 | 56 | DIBBS |
| TA04231SZ0217NB | 2022-03-69 | 56 | DIBBS |
| 5340-01-180-5625 | 2022-02-54 | 20 | United States |
| 5340-01-180-5625 | 2022-02-46 | 20 | United States |
| 10513099 | 2021-12-336 | 258 | DIBBS |
| TA04231SZ0217NB | 2021-12-336 | 258 | DIBBS |
| 10513099 | 2021-11-325 | 258 | DIBBS |
| TA04231SZ0217NB | 2021-11-325 | 258 | DIBBS |
| 10513099 | 2021-10-287 | 118 | DIBBS |
| TA04231SZ0217NB | 2021-10-287 | 118 | DIBBS |
| 10513099 | 2021-03-83 | 251 | DIBBS |
| TA04231SZ0217NB | 2021-03-83 | 251 | DIBBS |
| 10513099 | 2021-02-42 | 166 | DIBBS |
| TA04231SZ0217NB | 2021-02-42 | 166 | DIBBS |
| 10513099 | 2021-01-03 | 166 | DIBBS |
| TA04231SZ0217NB | 2021-01-03 | 166 | DIBBS |
| 5340-01-180-5625 | 2020-12-351 | 34 | Canada |
| 10513099 | 2020-05-136 | 95 | DIBBS |
| TA04231SZ0217NB | 2020-05-136 | 95 | DIBBS |
| 10513099 | 2020-03-75 | 95 | DIBBS |
| TA04231SZ0217NB | 2020-03-75 | 95 | DIBBS |
| 10513099 | 2020-02-58 | 65 | DIBBS |
| TA04231SZ0217NB | 2020-02-58 | 65 | DIBBS |
| 10513099 | 2019-07-196 | 69 | DIBBS |
| TA04231SZ0217NB | 2019-07-196 | 69 | DIBBS |
| 10513099 | 2019-07-188 | 69 | DIBBS |
| TA04231SZ0217NB | 2019-07-188 | 69 | DIBBS |
| 10513099 | 2019-05-127 | 257 | DIBBS |
| TA04231SZ0217NB | 2019-05-127 | 257 | DIBBS |
| 10513099 | 2019-04-119 | 257 | DIBBS |
| TA04231SZ0217NB | 2019-04-119 | 257 | DIBBS |
| 5340-01-180-5625 | 2019-02-50 | 1 | DIBBS-RFPs |
| 5340-01-180-5625 | 2019-01-02 | 189 | DIBBS |
| 5340-01-180-5625 | 2018-12-359 | 189 | DIBBS |
| 5340-01-180-5625 | 2018-10-281 | 123 | DIBBS |
| 5340-01-180-5625 | 2018-04-107 | 150 | DIBBS |
| 5340-01-180-5625 | 2018-02-35 | 123 | DIBBS |
| 5340-01-180-5625 | 2017-05-151 | 212 | DIBBS |
| 5340-01-180-5625 | 2016-02-34 | 328 | DIBBS |
| 5340-01-180-5625 | 2015-10-281 | 43 | DIBBS |
| 5340-01-180-5625 | 2015-09-273 | 66 | DIBBS |
| 5340-01-180-5625 | 2015-06-172 | 60 | DIBBS |
| 5340-01-180-5625 | 2015-03-68 | 60 | DIBBS |
| 5340-01-180-5625 | 2013-12-347 | 520 | DIBBS |
| 5340-01-180-5625 | 2013-11-332 | 520 | DIBBS |
| 5340-01-180-5625 | 2013-10-288 | 238 | DIBBS |
| 5340-01-180-5625 | 2013-09-272 | 238 | DIBBS |
| 5340-01-180-5625 | 2010-04-120 | 300 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-180-5625
Related Products | NSN 5340-01-180-5625
Technical Data | NSN 5340-01-180-5625
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 BAND RUBBER BUTADIENE NITRILE CUSHION |

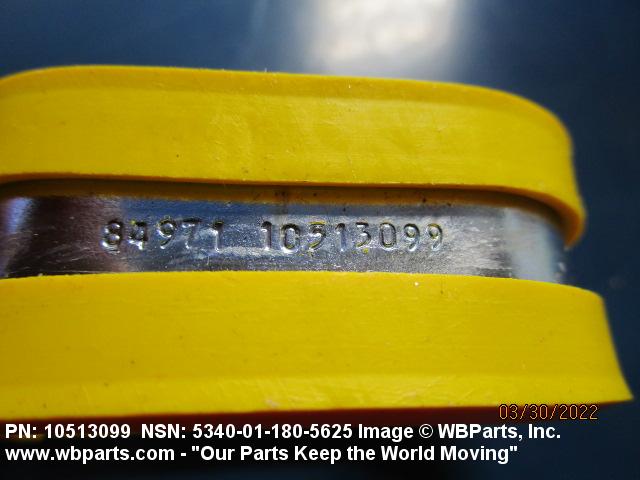

| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE BAND TA77-2,CAGEC 84971 MFR REF SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | ZINC BAND |
| STYLE DESIGNATOR | A11 MULTIPLE LOOP |

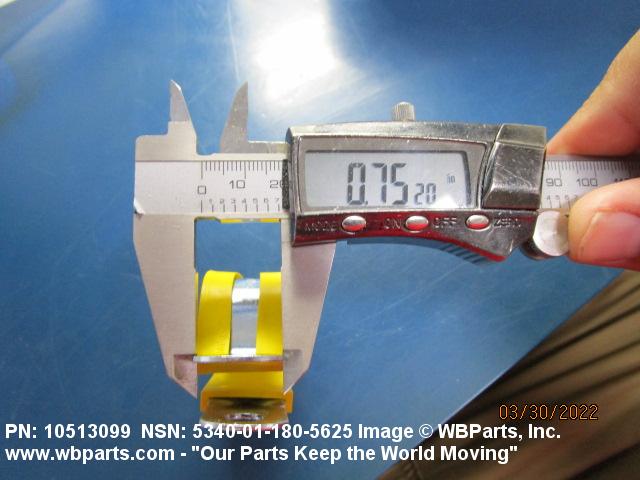

| OVERALL WIDTH | 0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM |

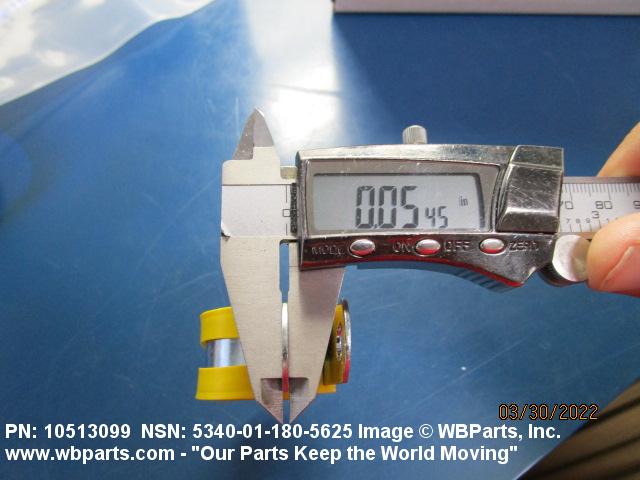

| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.471 INCHES NOMINAL |

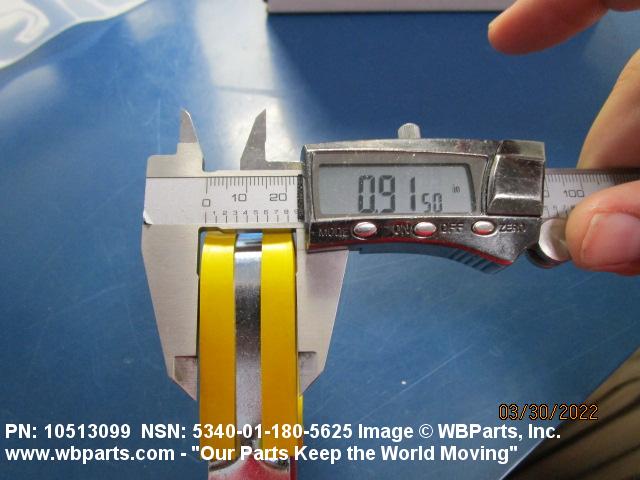

| LOOP WIDTH | 0.937 INCHES NOMINAL |

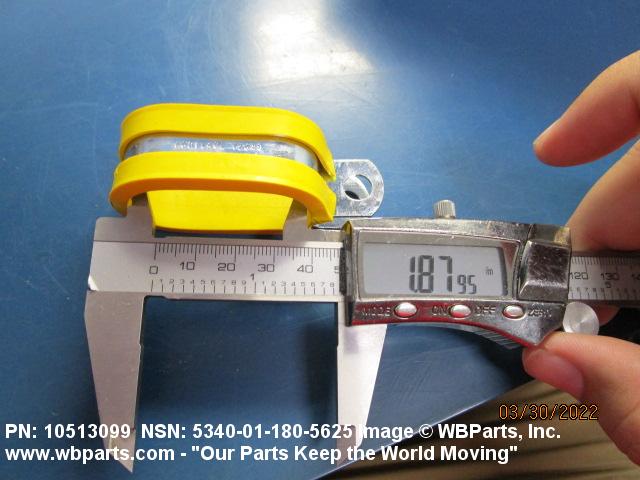

| LOOP LENGTH | 1.874 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.783 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

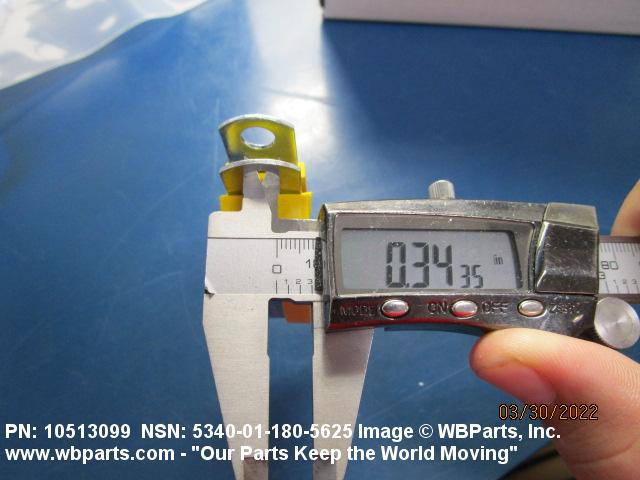

| DIAMETER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND OZONE RESISTANT |
| SPECIAL FEATURES | CUSHION COLOR YELLOW; OFFSET |
Restrictions/Controls & Freight Information | NSN 5340-01-180-5625
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-180-5625
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
