NSN 5340-01-172-6305 DA47852, 01-172-6305, 011726305
Product Details | HAND CRANK
5340-01-172-6305 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: DA47852, 5340-01-172-6305, 01-172-6305, 5340011726305, 011726305
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 FEB 1984 | 01-172-6305 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-01-172-6305
Demand History | NSN 5340-01-172-6305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-172-6305 | 2021-08-23 | 1 | DIBBS |
| 5340-01-172-6305 | 2021-08-15 | 1 | DIBBS |
| 5340-01-172-6305 | 2021-04-16 | 2 | DIBBS |
| 5340-01-172-6305 | 2021-04-11 | 3 | DIBBS |
| 5340-01-172-6305 | 2021-04-08 | 2 | DIBBS |
| 5340-01-172-6305 | 2021-03-28 | 3 | DIBBS |
| 5340-01-172-6305 | 2020-08-18 | 1 | DIBBS |
| 5340-01-172-6305 | 2020-08-06 | 1 | DIBBS |
| 5340-01-172-6305 | 2020-07-29 | 1 | DIBBS |
| 5340-01-172-6305 | 2020-02-27 | 3 | DIBBS |
| 5340-01-172-6305 | 2019-12-03 | 1 | DIBBS |
| 5340-01-172-6305 | 2019-11-17 | 1 | DIBBS |
| 5340-01-172-6305 | 2019-11-01 | 1 | DIBBS |
| 5340-01-172-6305 | 2019-10-16 | 1 | DIBBS |
Cross Reference | NSN 5340-01-172-6305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DA47852 | 05825 | O T S I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-172-6305
Related Products | NSN 5340-01-172-6305
Technical Data | NSN 5340-01-172-6305
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, COMP 4137H OVERALL |
| SURFACE TREATMENT AND LOCATION | CADMIUM, QQ-P-416, TYPE 2, CLASS 1 OVERALL |
| ARM STYLE | 7 STRAIGHT |
| CRANK THROW LENGTH | 6.625 INCHES NOMINAL |
| DRIVE END OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |

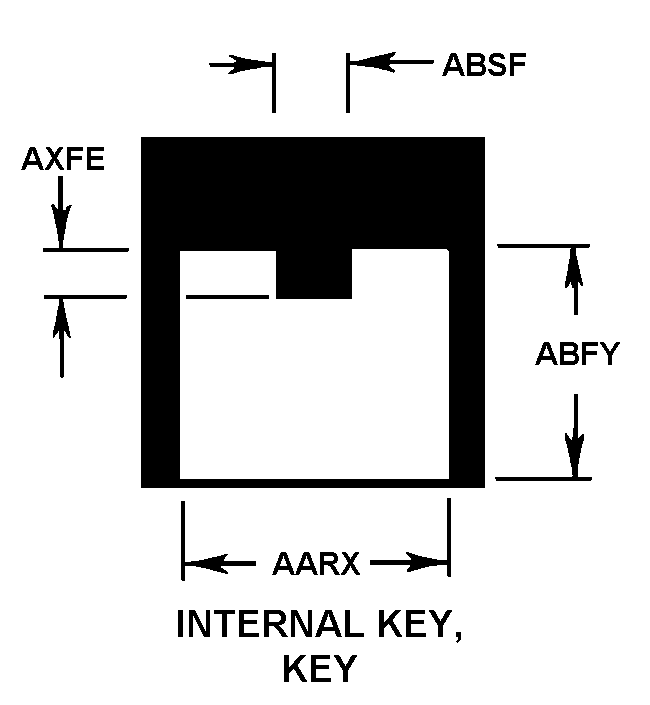

| DRIVE FACILITY STYLE | 134 INTERNAL KEY, KEY |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL DEPTH | 0.500 INCHES NOMINAL |
| KEY WIDTH | 0.214 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| KEY HEIGHT | 0.250 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 8.250 INCHES NOMINAL |
| MOUNTING FACILITY | SLOT |
| MOUNTING FACILITY SLOT WIDTH | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY SLOT LENGTH | 1.125 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | THREAD |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-01-172-6305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-172-6305
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
